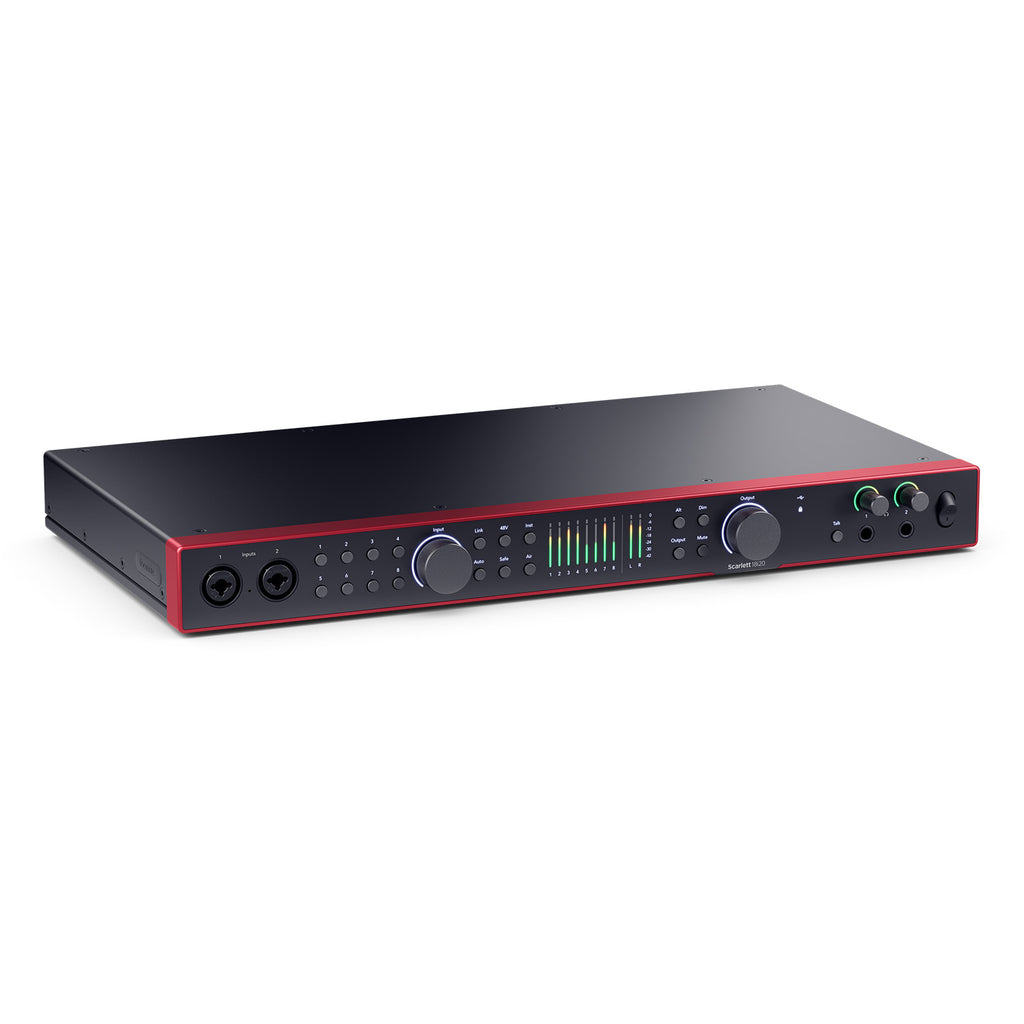

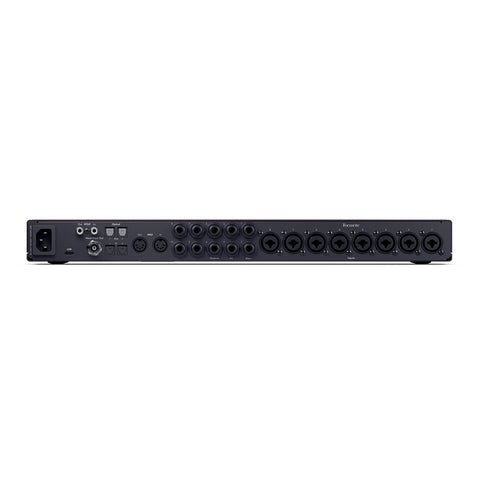

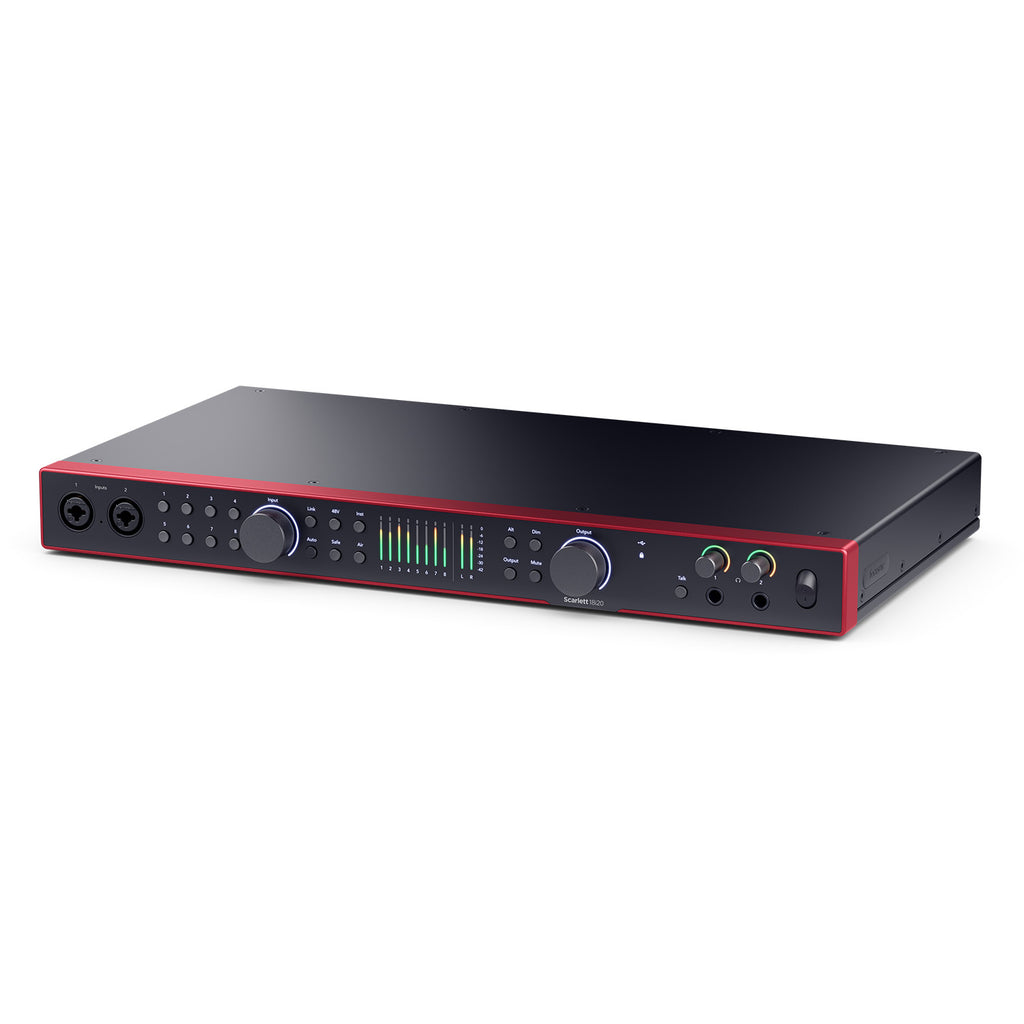

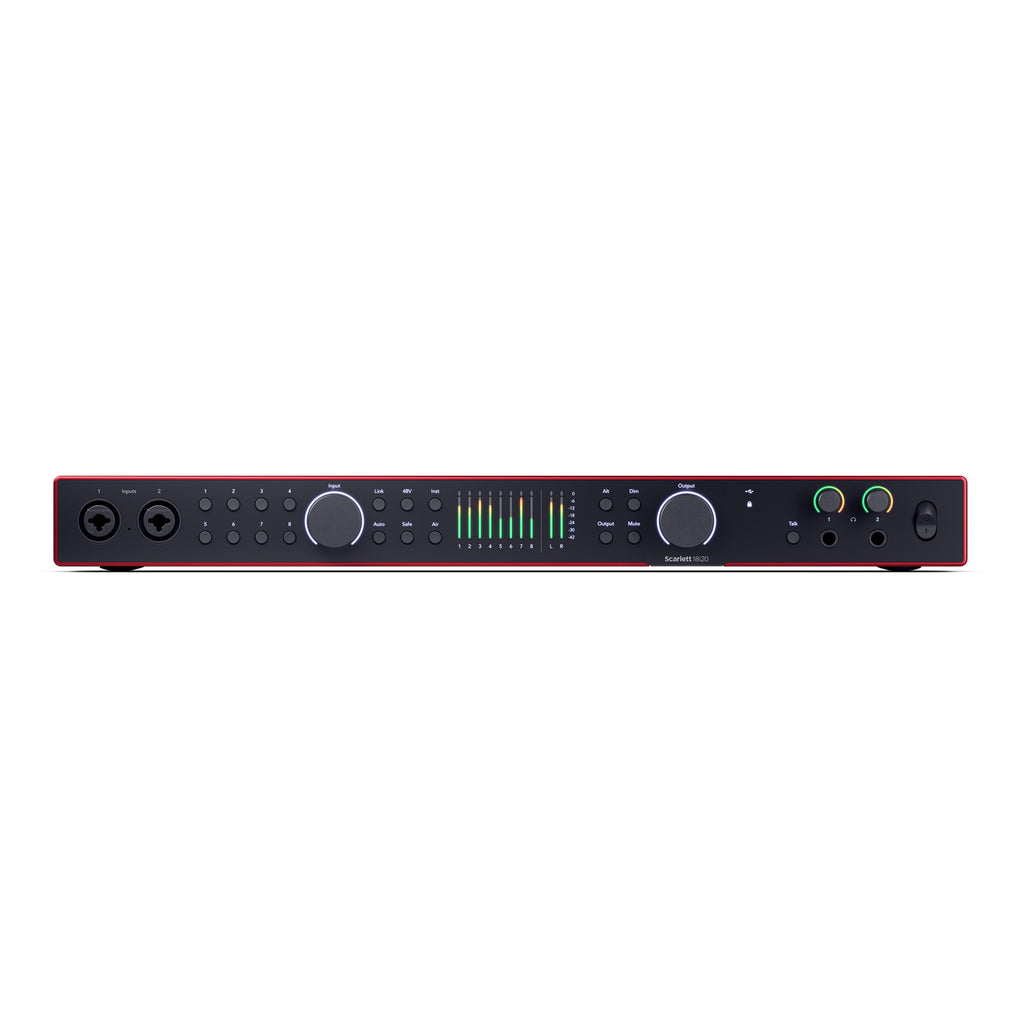

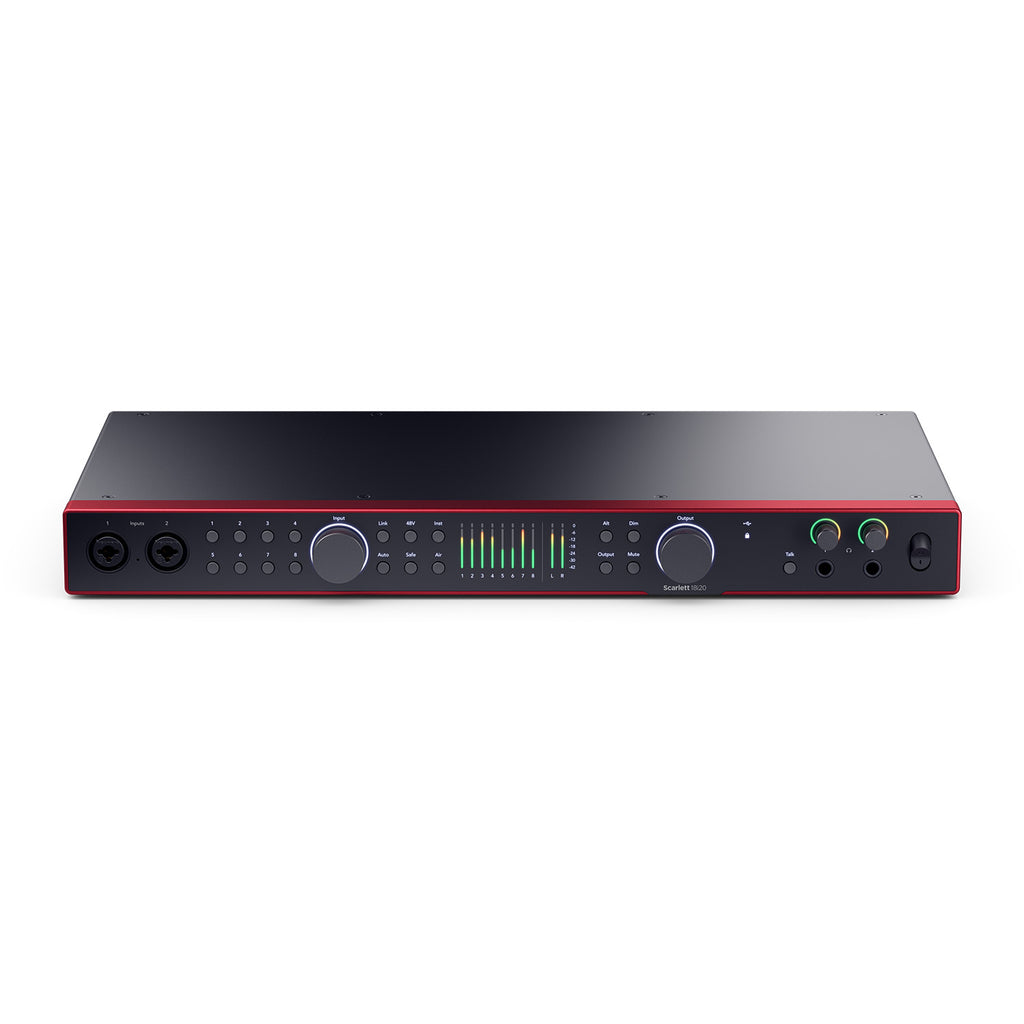

Focusrite Scarlett 18i20 Audio Interface (USB)
18-in, 20-out USB audio interface with two 4th Gen Scarlett mic preamps.
Guildwater Gear is an Authorized Focusrite Dealer. If you have any questions about this product please do not hesitate to contact us.

Scarlett 18i20 is the 4th generation of industry-leading USB Audio interfaces for project studios; including RedNet converters, eight 4th Gen Scarlett mic preamps, and an array of innovative workflow tools. Scarlett 18i20 is the industry-leading USB audio interface for project studios, with pro-grade converters taken directly from Focusrite's flagship RedNet range. It's ideal for tracking; the eight 4th Gen mic preamps have an impressive 69dB of gain, capable of capturing the most dynamic performances, with Auto Gain and Clip Safe modes taking care of levels so you can focus on the take. Scarlett 18i20 is also the perfect hub to integrate your DAW and hardware with more than enough analogue and digital I/O to connect a huge number of external instruments, processors, and effects, and manage complex routing with incredible ease via Focusrite Control 2 software.

FEATURES

18 inputs and 20 outputs; including eight mic preamps, line, instrument, and MIDI I/O. Fully equipped for demanding project studios with ADAT, SPDIF, and Word Clock I/O
4th Gen pre-amps with 69dB of gain. The legendary preamps now have even more gain and are remote controllable
Auto Gain and Clip Safe modes. 18i20 can automatically manage levels so engineers can focus on capturing the performance
Re-engineered Air mode with Presence and Harmonic Drive. Analogue circuitry and onboard DSP that emulates the sound of studio consoles and the classic ISA
Low latency monitoring.Direct routing and six internal mixers to send audio wherever you need to in super-low latency
24-bit, 192 kHz conversion with 122dB of dynamic range. The same AD/DA converters as Focusrite's flagship RedNet range
Focusrite Control 2 software and mobile app. Instantly set up mixes and manage levels on your computer, or remotely from a mobile device
Two powerful custom-designed headphone amps. Engineer and artist can independently monitor with high-quality playback on any headphones
A/B speaker switching and built-in talkback microphone. Essential features for serious project studios with multiple monitor rigs and control rooms
Dynamic metering for input and outputs. Get instant visual indication of your input and output levels from the hardware
Included production software. Comes with Pro Tools Intro+ for Focusrite, Ableton Live Lite, six months of FL Studio Producer Edition, and a suite of instruments, processors, and effects
Easy Start tool. Get up and running immediately with Focusrite's driver installation and getting started tool

The ultimate Scarlett. Scarlett 18i20 is the industry-leading USB audio interface for project studios, with converters taken directly from Focusrite's flagship RedNet range. It features 18 inputs and 20 outputs including eight mic preamps, Hi-Z and line inputs, ADAT, SPDIF, MIDI, and Word Clock.

Capture everything. The 4th Generation preamps offer an impressive 69dB of headroom, so you can capture the most dynamic performances with high-quality results from any microphone. Two Hi-Z instrument and eight line inputs provide enough connectivity to keep your outboard patched in. Powerful outputs ensure clean, ultra-low distortion playback; plus, two brand new custom-designed headphone amps to drive high-impedance headphones with ease.

Expand your setup. Unlock up to 16 extra inputs and 16 extra outputs using the four ADAT portsperfect for live sessions, large drum recordings, and other I/O-heavy setups. Connect two additional Scarlett 18i20 4th Gen interfaces to achieve a total of 24 mic preamps and set levels in just 10 seconds using multi-channel Auto Gain.

Audio quality beyond its class. Completely redesigned audio circuitry now includes the same professional-grade 24-bit, 192kHz converters as Focusrite's RedNet range the choice of multi-million dollar recording studios and broadcast facilities and boasts an impressive 122dB of dynamic range to capture everything from a whisper to a jet engine.

Air: That big console sound. Re-engineered Air mode takes your sound's unique character and brings it to the front of the mix, adding musical presence or rich harmonic drive to vocals and acoustic instruments; replicating the sound of driving a classic studio console.

Auto Gain: Work faster. Scarlett 18i20 has unique workflow tools that benefit engineers of all experience levels. With Auto Gain, in just a few seconds, Scarlett will set the perfect level for whatever you're recording. For more complex setups, multi-channel Auto Gain adjusts levels for multiple microphones, either directly on 18i20 or through the Focusrite Control 2 mobile and desktop applications.

Clip Safe: Never lose a take. As you record, Clip Safe checks your levels up to 96,000 times a second, automatically tweaking the gain to avoid clipping, so you avoid introducing any unwanted artefacts from hard limiting. Clip Safe means you'll never lose a take; especially in high-pressure environments such as location recording and live shows.

Talkback and monitoring tools. The 18i20 features a built-in talkback mic, A/B speaker switching for instant referencing on various monitor configurations including multi-speaker systems, and eight channels of LED bar metering which can be assigned to inputs or outputs, as well as master output metering.

Control your mixes with desktop and mobile apps. The Focusrite Control 2 software takes care of setting up routing, levels, monitor mixes, and all other functions on 18i20. It's fast and simple to operate; and in addition to the desktop application, the iOS and Android Focusrite Control 2 apps enables engineers and performers to adjust monitor mixes and multiple mic pre gains Scarlett's preamps are remote controllable away from the computer in the live room.

Industry-leading production software. The 4th generation Scarlett 18i20 comes with Pro Tools Intro+ for Focusrite, Ableton Live Lite, six months of FL Studio Producer Edition, and a whole host of software instruments, processors, effects, and royalty-free samples from some of the biggest names in the business. Discover some of the best-loved studio tools on the planet for writing, recording, mixing, and mastering:

Antares Auto-Tune Access
Klevgrand Korvpressor
Klevgrand REAMP
Softube Marshall Silver Jubilee 2555
Native Instruments MASSIVE
Sonnox VoxDoubler
Landr Studio, plus five free masters
Brainworx bx_console Focusrite SC
Focusrite Red 2 & 3 Plug-in Suite
XLN Audio Addictive Keys
XLN Audio Addictive Drums 2: Studio Rock
Relab's LX480 Essentials
Splice Sounds

Easy set up. Focusrite's Easy Start web tool will get 18i20 up and running with zero effort, helping you locate the drivers, take you through the installation process, and direct you towards the included software.

In the Box?Scarlett 18i20 || Rack Ears ||IEC Cable ||USB Cable

Enjoy three years of warranty. Wherever you happen to be in the world, you can rely on a three-year warranty if any Focusrite hardware needs repairing or replacing due to a manufacturing fault.

SPECIFICATIONS

Number of Microphone Preamps: 8
Phantom Power: Yes (Independent)
Instrument Inputs: 2
Line Inputs: 8
Air Mode: Yes
Auto Gain: Yes
Clip Safe: Yes
Line Outputs: 10
Headphone Outputs: 2
ADAT Inputs: 2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
ADAT Outputs: 2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
SPDIF Input: 1
SPDIF Output: 1
MIDI Input: 1
MIDI Output: 1
Talkback: Yes
Loopback: Yes
Connectivity: USB Type-C
Protocol: USB 2.0
Form Factor: Desktop
Simultaneous I/O: 20 x 24 (including Loopback)
A/D Resolution: 24-bit/192 kHz
Bus Powered: No

Software Compatibility. Scarlett 18i20 is class compliant so will work with Mac, Windows PC, Chromebook, USB-C iPad, and iPhone.

Power Requirements. 100-240V, 50/60Hz 30W (IEC Cable included)
