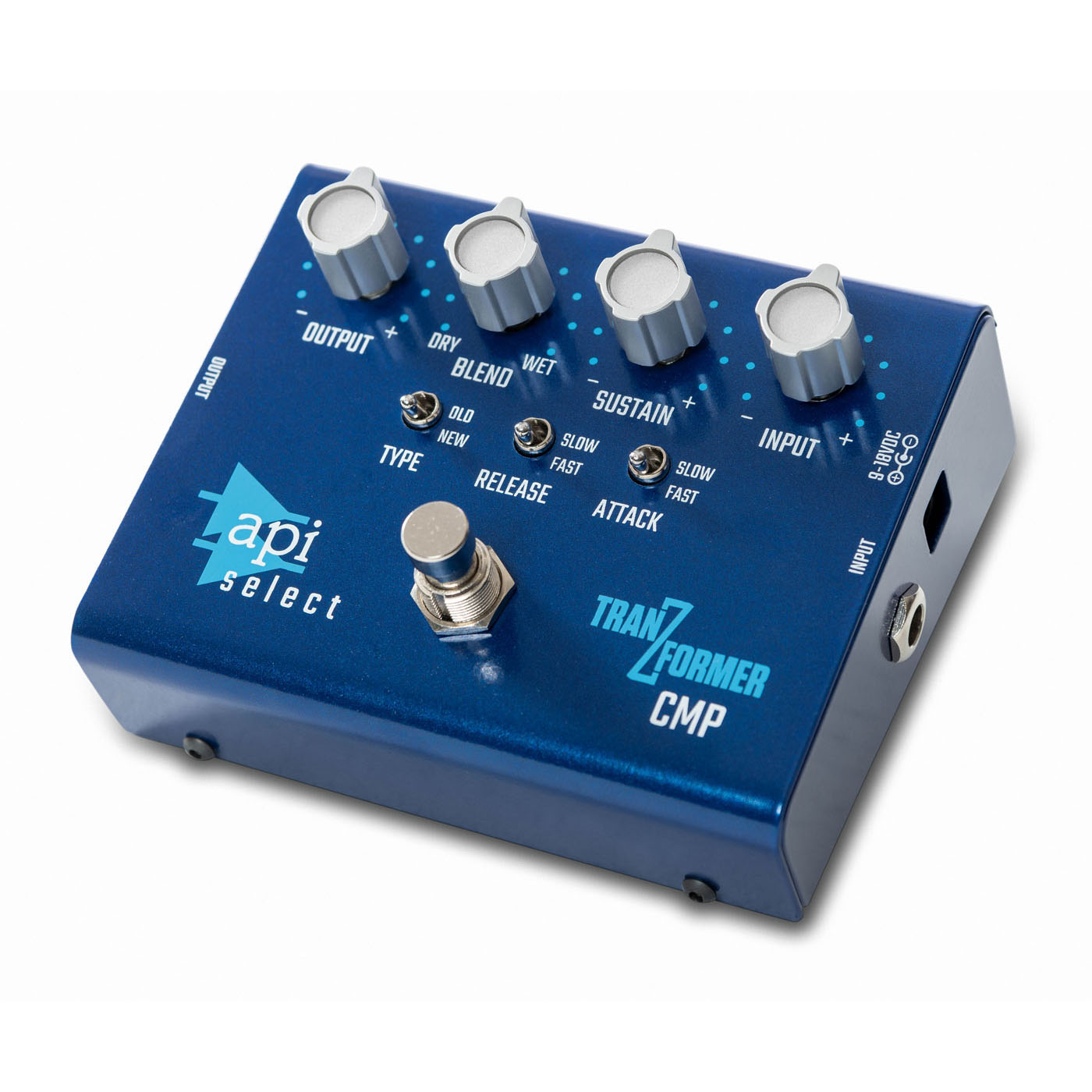

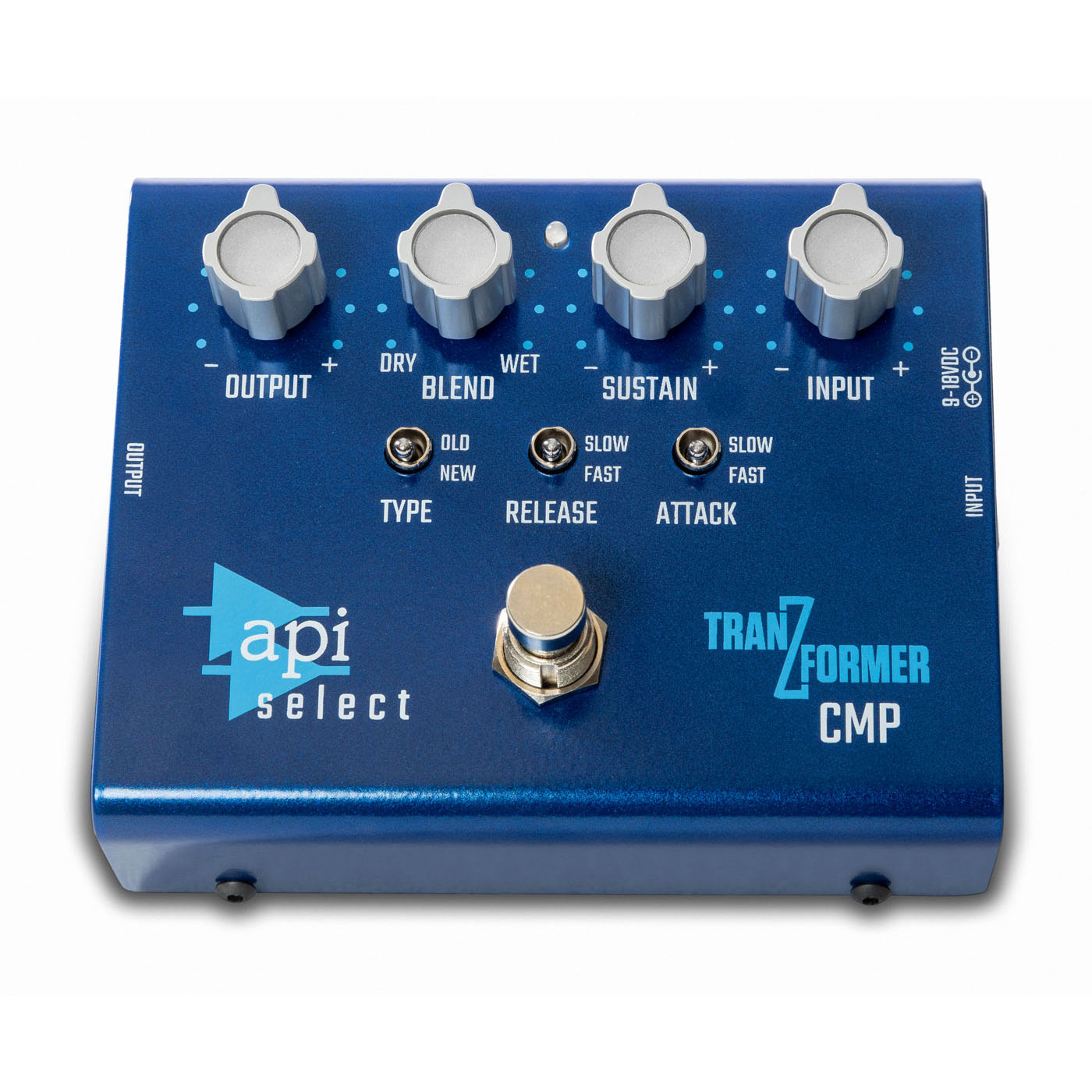

API Select TranZformer CMP Compressor Pedal
Feature
- Proprietary API 2510 OpAmp
- Signature API output transformer
- Adjustable attack and release times
- Wet/dry blend control
- Selectable feedback/feedforward compressor styles
- Buffered bypass
The API Select TranZformer® CMP incorporates API's legendary VCA-type compressor circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run off standard 9V power supplies, the CMP gives you classic studio-quality compression right at your feet. Other features include a buffered bypass in/out footswitch, adjustable attack and release times, wet/dry blend control, selectable "feedback" and "feedforward" compressor styles, transformer output, and of course the classic API sound.
Specifications
|
Input connection:
|
1/4" Hi-Z unbalanced instrument input
|
|
Input Impedance:
|
1MΩ
|
|
Bypass:
|
Yes, buffered, 0dB
|
|
Output connections:
|
1/4" Hi-Z unbalanced output
|
|
Output Impedance:
|
Hi-Z output: Less than 1kΩ
|
|
Input Gain Control:
|
9dB - 30dB, Variable
|
|
Output Level Control:
|
-inf. to 0dB, Variable
|
|
Maximum output level before clipping:
|
+15dBu (9VDC)
+22dBu (18VDC)
|
|
Frequency Response:
|
+0dB, -1dB, 20-20kHz
|
|
Compressor:
|
Ratio (Sustain): Varies from 1:1 to 20:1 depending on compressor control setting.
Attack (switched): FAST (1ms) or SLOW (10ms)
Release (switched): FAST (300ms) or SLOW (1s)
TYPE (switched): New (Feed-forward), OLD (Feed-back)
|
|
Power Supply:
|
9-18VDC @ 100mA
|
|
Size:
|
4.6" x 3.8" x 3"
|
|
Size (Boxed for Shipping):
|
6" x 4.5" x 4.5"
|
|
Actual Weight:
|
1.5 lbs.
|
|
Shipping Weight:
|
2 lbs.
|
