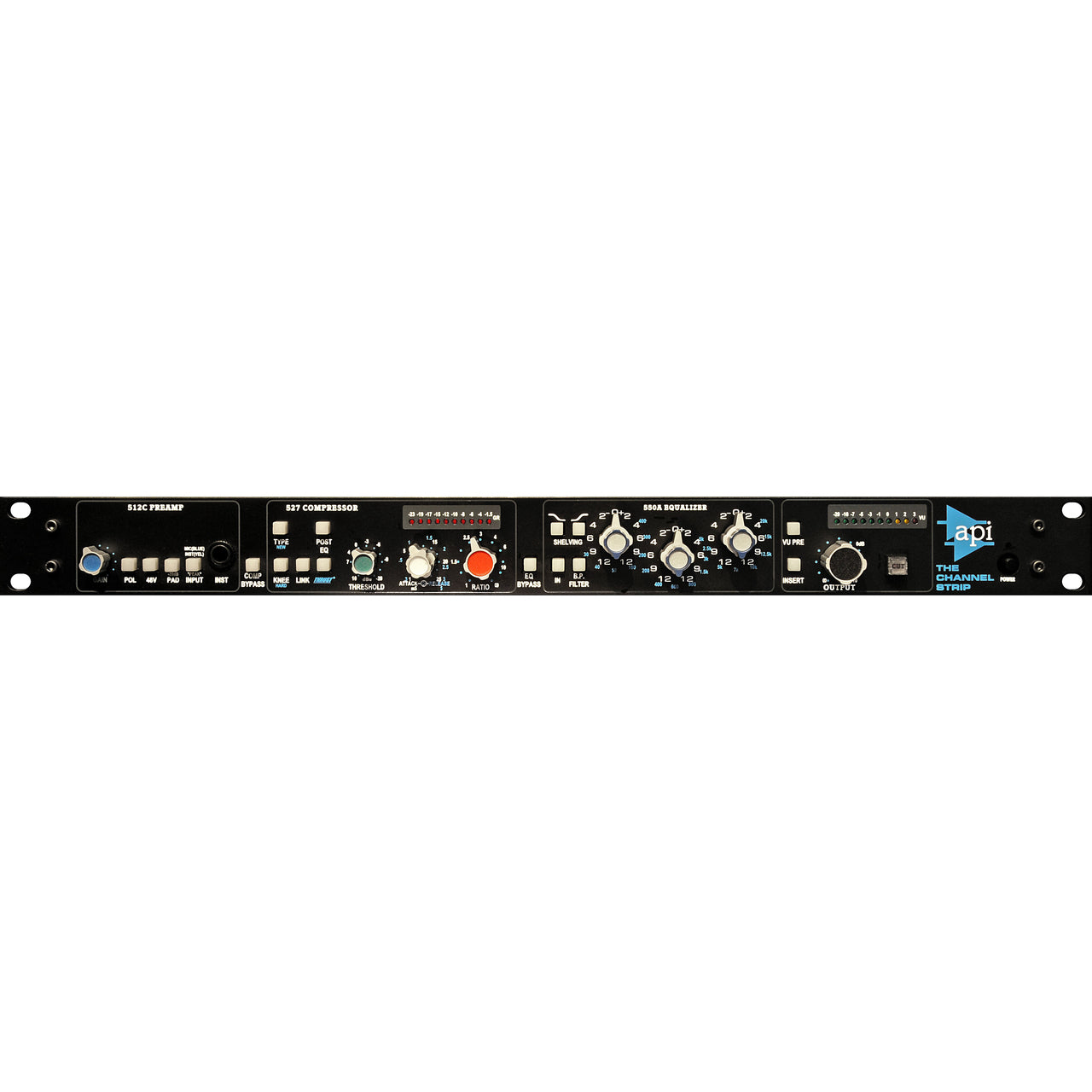

API The Channel Strip (Preamp Compressor EQ Rack-Mount)
The result of thoughtful engineering, The Channel Strip includes everything needed to record an audio signal. It all starts with the famed 512c Mic Preamplifier, which includes the benefit of additional Mic, Line or Instrument input switching. Next is the 527 multi-mode Compressor with fully adjustable Threshold, Attack, Release, and Ratio controls on detented pots. The patented THRUST® circuit in the 527 gives your track the "in-your-face" punch that has made this circuit an award winner. Also included in The Channel Strip is probably the most recognized and revered API EQ of all time, the 550A three-band Equalizer with its switchable frequencies and 12dB of boost or cut. The 550A's High and Low frequency bands can be individually switched to be shelving EQs, and the "B.P. Filter" switch inserts a 50Hz to 15KHz bandpass filter.
At the output of the unit is the 325 Line Driver, taken directly from API console designs with an output level pot and 10 segment meter. The meter can also be switched to show the output level of the preamp. Each of The Channel Strip's processing pieces can be switched in or bypassed individually, while a flip switch internally routes the compressor after the EQ if desired. Additional features include a sidechain input and the famous API 2520/transformer combination.
Sound on Sound || "Legendary mixer manufacturers API have announced a recording front end called the Channel Strip. A 1U rack, its signal conditioning and processing facilities are split into four sections: a mic preamp, an EQ, a compressor and a line driver, all of which are based on existing API modules." -
- API 512c Mic Preamplifier
- API 550A Equalizer
- API 527 Compressor
- API 325 Line Driver

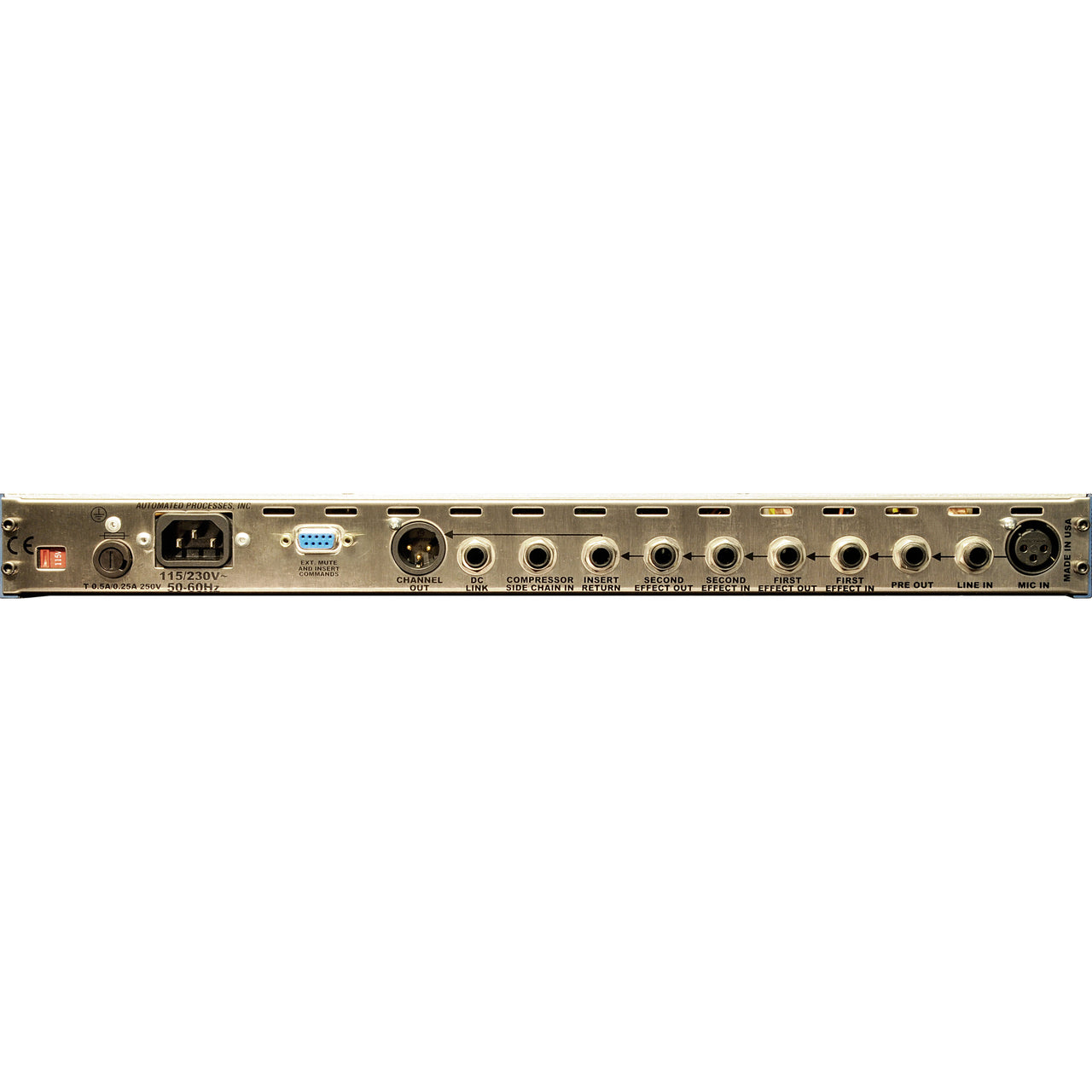

- Complete patching facilities on rear panel
- Two ten segment LED VU displays
- Output clips at +30dBm
|Power Consumption, Quiescent||28.2 Watts|
|Size||19" X 1.75" (1U) X 11.5" Deep|
|Size (Shipping Box)||23.25" X 6.5" X 16"|
|Actual Weight||10.81 lbs.|
|Shipping Weight||14.88 lbs.|
