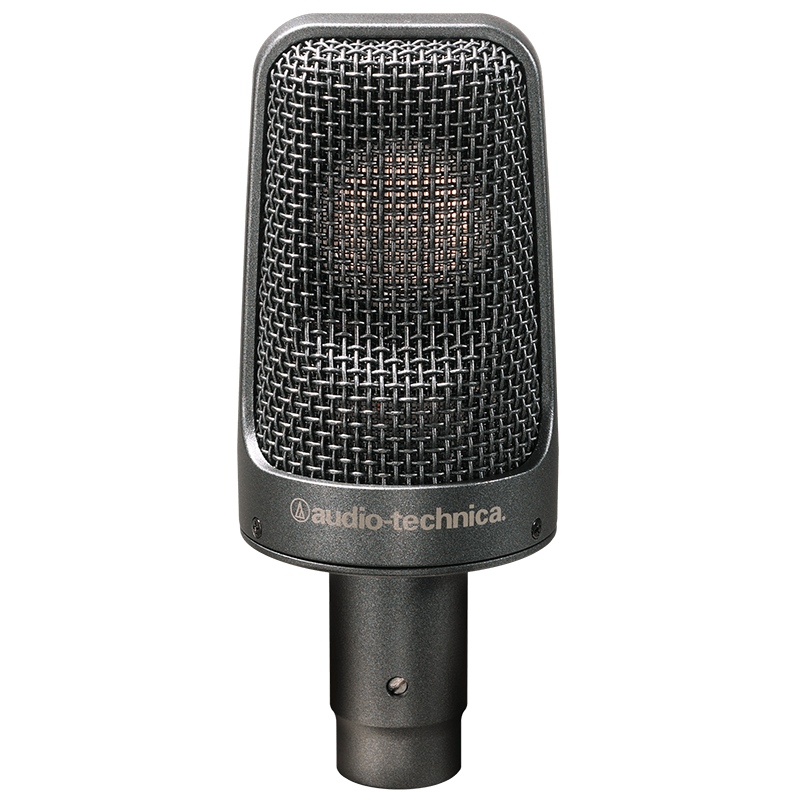

Audio-Technica AE3000 Condenser Microphone (Cardioid)
Cardioid Condenser Instrument Microphone
FEATURES
- Excels in high-SPL applications
- Large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound

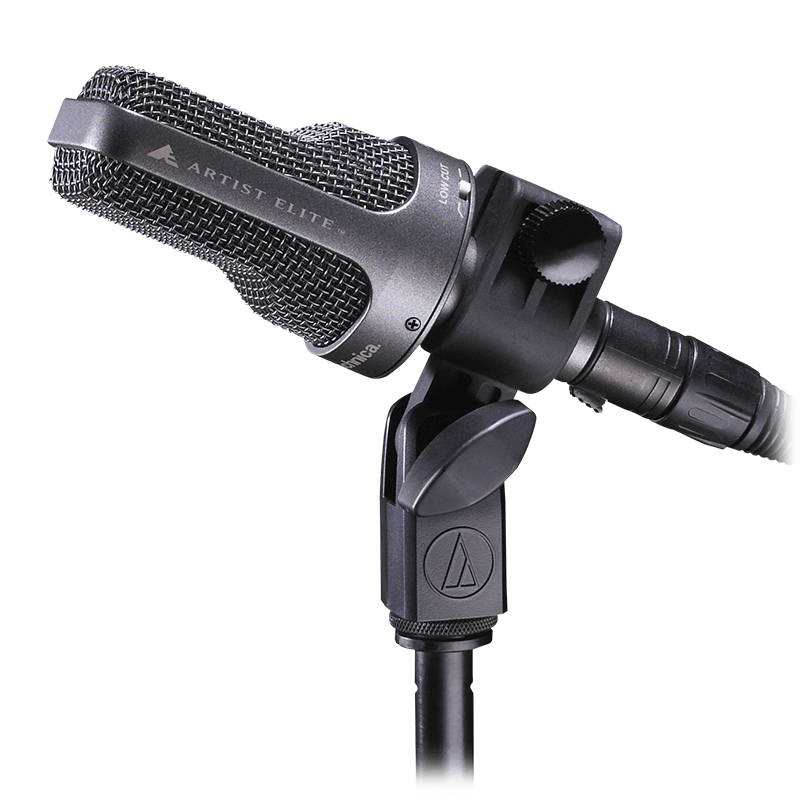

- Low-profile side-address design with tapered grille allows optimal positioning of element vis-à-vis sound source
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Robust design for enduring dependability on the road
- Integral 80 Hz HPF switch and 10 dB pad
SPECIFICATIONS
-
Element: Fixed-charge back plate, permanently polarized condenser
-
Polar Pattern: Cardioid
-
Frequency Response: 20-20,000 Hz
-
Low Frequency Roll Off: 80 Hz, 12 dB/octave
-
Open Circuit Sensitivity: -43 dB (7.0 mV) re 1V at 1 Pa
-
Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D.;
- 158 dB SPL, with 10 dB pad (nominal)
-
Noise: 11 dB SPL
-
Dynamic Range: 137 dB, 1 kHz at Max SPL
-
Signal-to-Noise Ratio: 83 dB, 1 kHz at 1 Pa
-
Phantom Power Requirements: 11-52V DC, 3 mA typical
-
Switches: High-pass filter;
- 10 dB pad (nominal)
-
Weight: 6.0 oz (170 g)
-
Dimensions: 4.55" (115.5 mm) long,
- 1.89" (48.0 mm) maximum diameter
-
Output Connector: Integral 3-pin XLRM-type
-
Accessories Included: AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
-
Audio-Technica Case Style: R6
