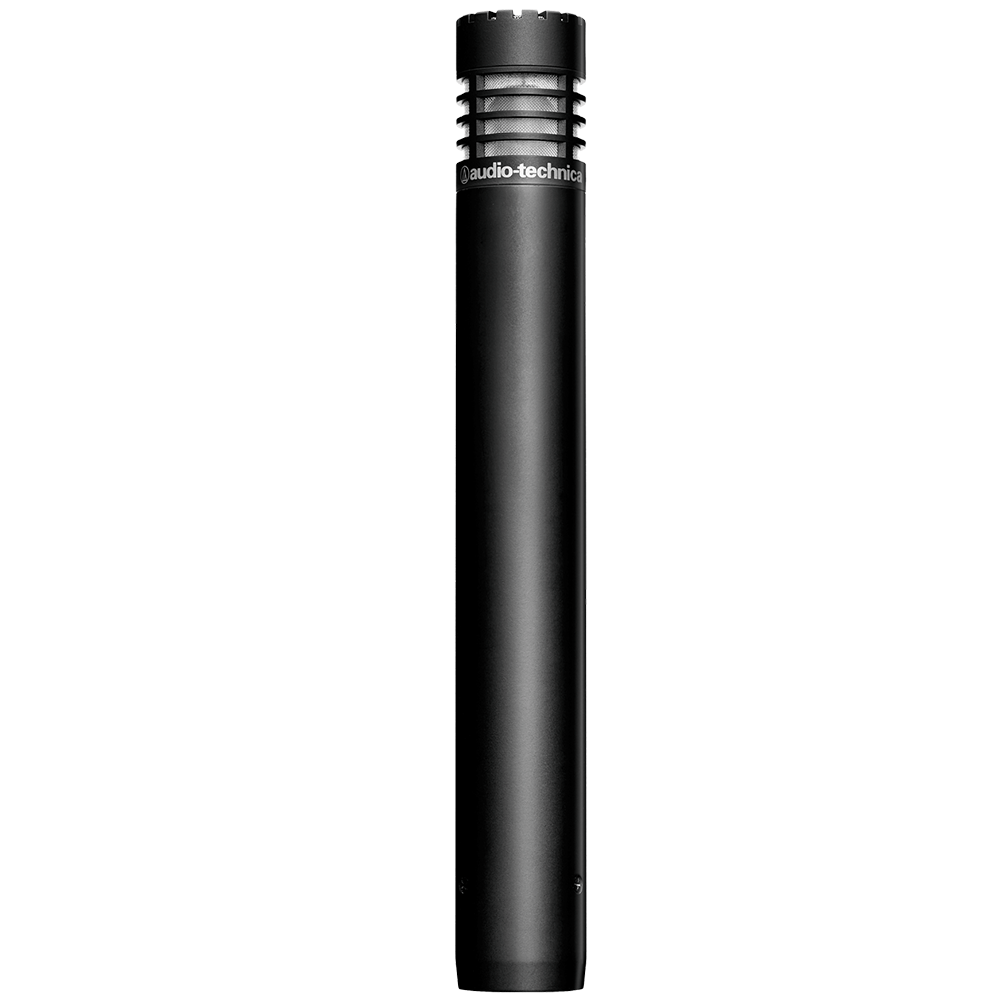

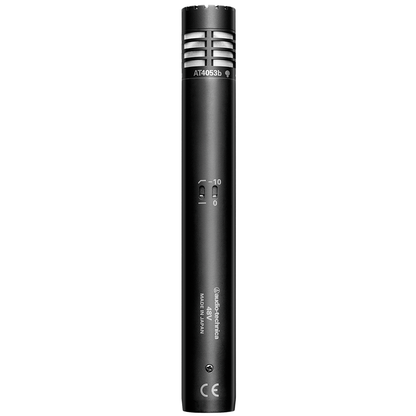

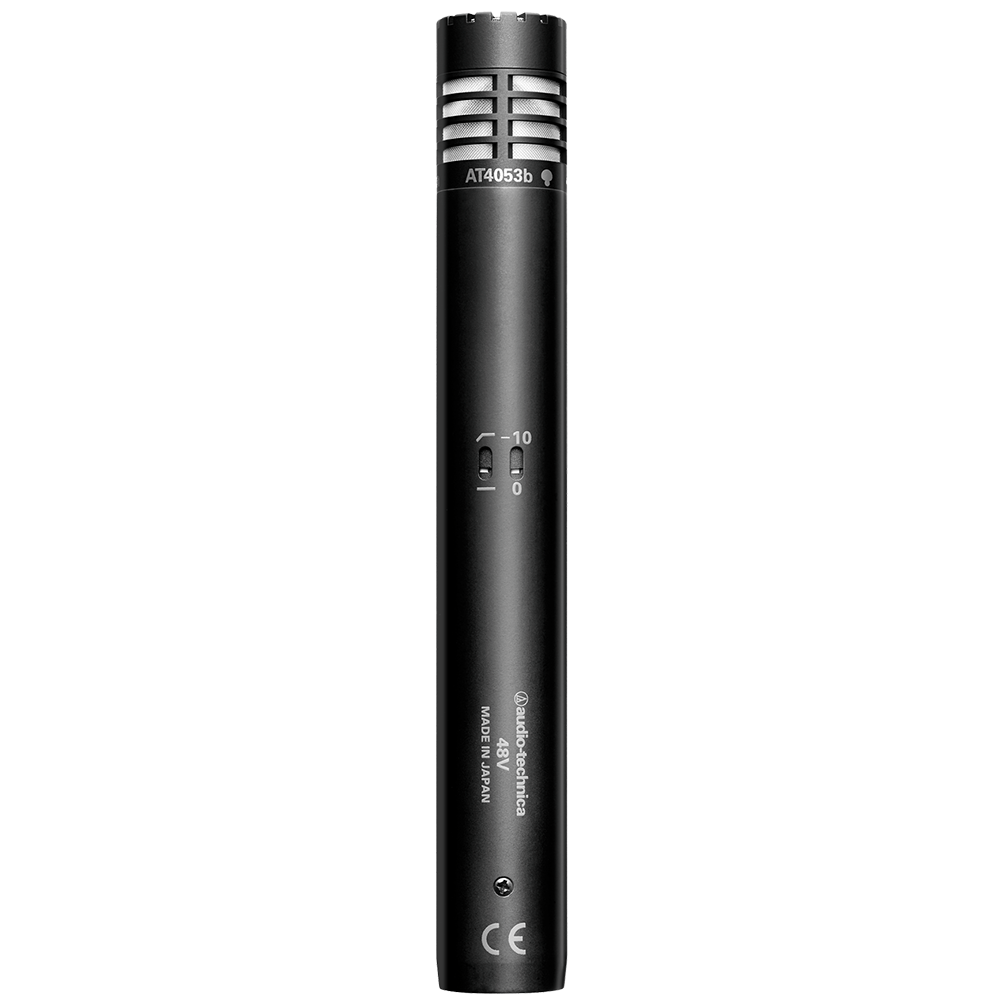

Audio-Technica AT4053b Condenser Microphone
Hypercardioid Condenser Microphone
This versatile studio performer may be used with confidence in a wide variety of professional miking applications. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the microphone is totally free of the distortion associated with conventional transformer-coupled outputs. And its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments. The microphone is fully RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

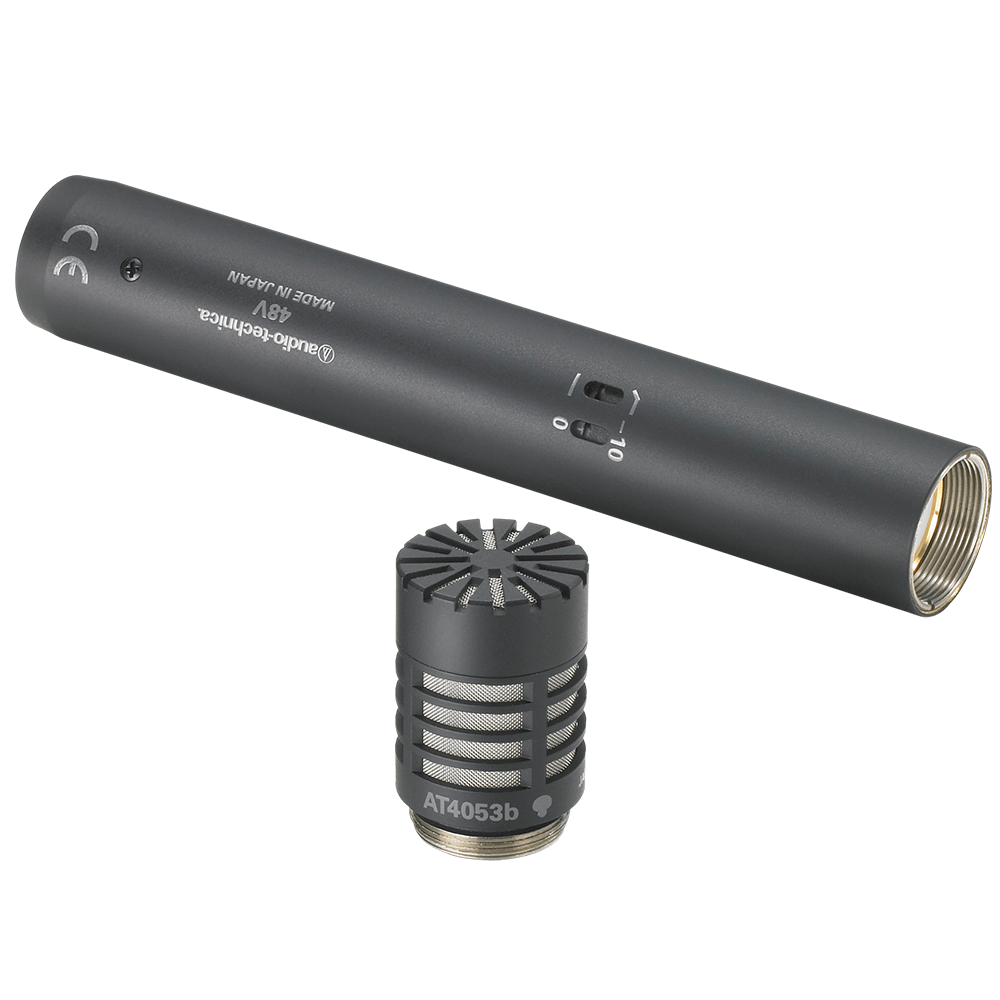

The AT4053b consists of two modular subassemblies: an AT4900b-48 body and an AT4053b-EL hypercardioid head capsule (both available separately). Additional interchangeable capsules are available in omnidirectional (AT4049b-EL) and cardioid (AT4051b-EL).
- Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
- Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Direct-coupled, balanced output results in a clean signal even under high-output conditions
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- Switchable 80 Hz hi-pass filter and 10 dB pad
- Rugged turned-brass microphone housing for enduring dependability
- State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards
- RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
|Element||Externally polarized (DC bias) capacitor|
|Frequency Response||20-20,000 Hz|
|Low Frequency Roll Off||80 Hz, 18 dB/octave|
|Open Circuit Sensitivity||-34 dB (19.9 mV) re 1V at 1 Pa|
