Audio-Technica AT4080 Ribbon Microphone
With the groundbreaking AT4080, Audio-Technica achieves the coveted ribbon microphone sound while solving the problems of fragility and low output that have historically plagued ribbon mics. Delivering the warm, smooth sound of a classic ribbon microphone, Audio-Technica’s handcrafted AT4080 Ribbon Microphone offers a robust build for long-lasting, reliable performance and higher output for maximum compatibility with microphone preamplifiers.
Equally at home in recording studios and live-sound settings, the microphone features Audio-Technica’s innovative MicroLinear™ ribbon imprint, which protects the dual ribbons from lateral flexing and distortion. Utilizing six new patents*, Audio-Technica’s innovative ribbon transducer advances the evolution of ribbon microphone design. Experience the difference.
Features
- Smooth, warm and natural high-fidelity sound for professional recording, broadcast and sound reinforcement
- Proprietary MicroLinear™ ribbon imprint for superior durability
- Innovative dual ribbon construction for increased sensitivity
- Extremely powerful N50 rare earth magnets for high output level
- Ultra-fine mesh helps protect against ribbon damage
- Classic bidirectional (figure-of-eight) polar pattern picks up sounds equally from the front and back of the element
- High-SPL capability and extended frequency response
- Extended frequency response for natural audio reproduction
- Acoustic baffle system and extra large output transformer provide natural low-frequency response and extended dynamic range
- Handmade production – including ribbon corrugation, imprint and assembly
- Open acoustical environment of the housing assembly minimizes unwanted internal reflections
- Phantom-powered active electronics provide stable impedance and higher output for maximum compatibility with microphone preamplifiers

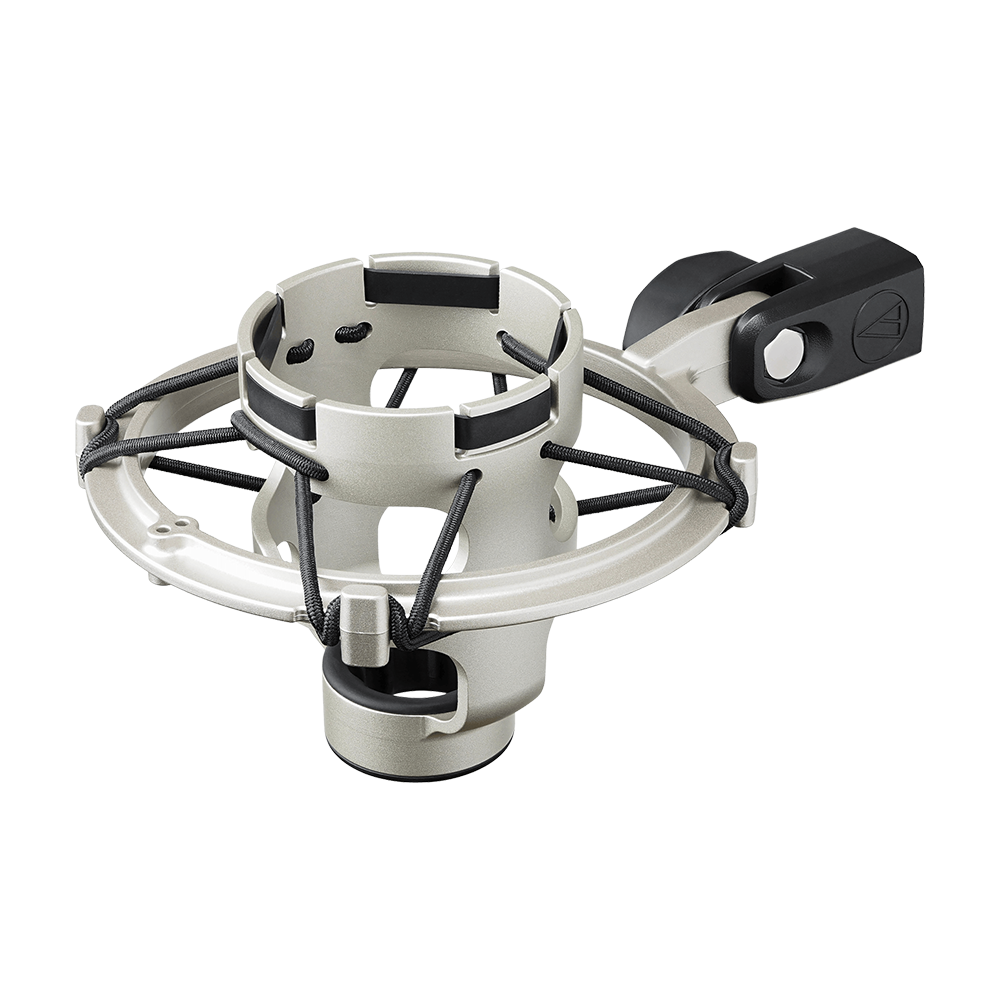

- Custom shock mount provides superior isolation
- Certified by the METAlliance (Music Engineering and Technology Alliance)
| Element | Ribbon |
|---|---|
| Polar Pattern | Figure-of-eight |
| Frequency Response | 20-18,000 Hz |
| Open Circuit Sensitivity | –39 dB (11.2 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 150 dB SPL, 1 kHz at 1% T.H.D. |
| Noise | 22 dB SPL |
| Dynamic Range | 128 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 72 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 48V DC, 3.0 mA typical |
| Weight | 474 g (16.7 oz) |
| Dimensions | 177.5 mm (6.99") long, 53.4 mm (2.10") maximum body diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8449a/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case |
| Audio-Technica Case Style | R1 |
