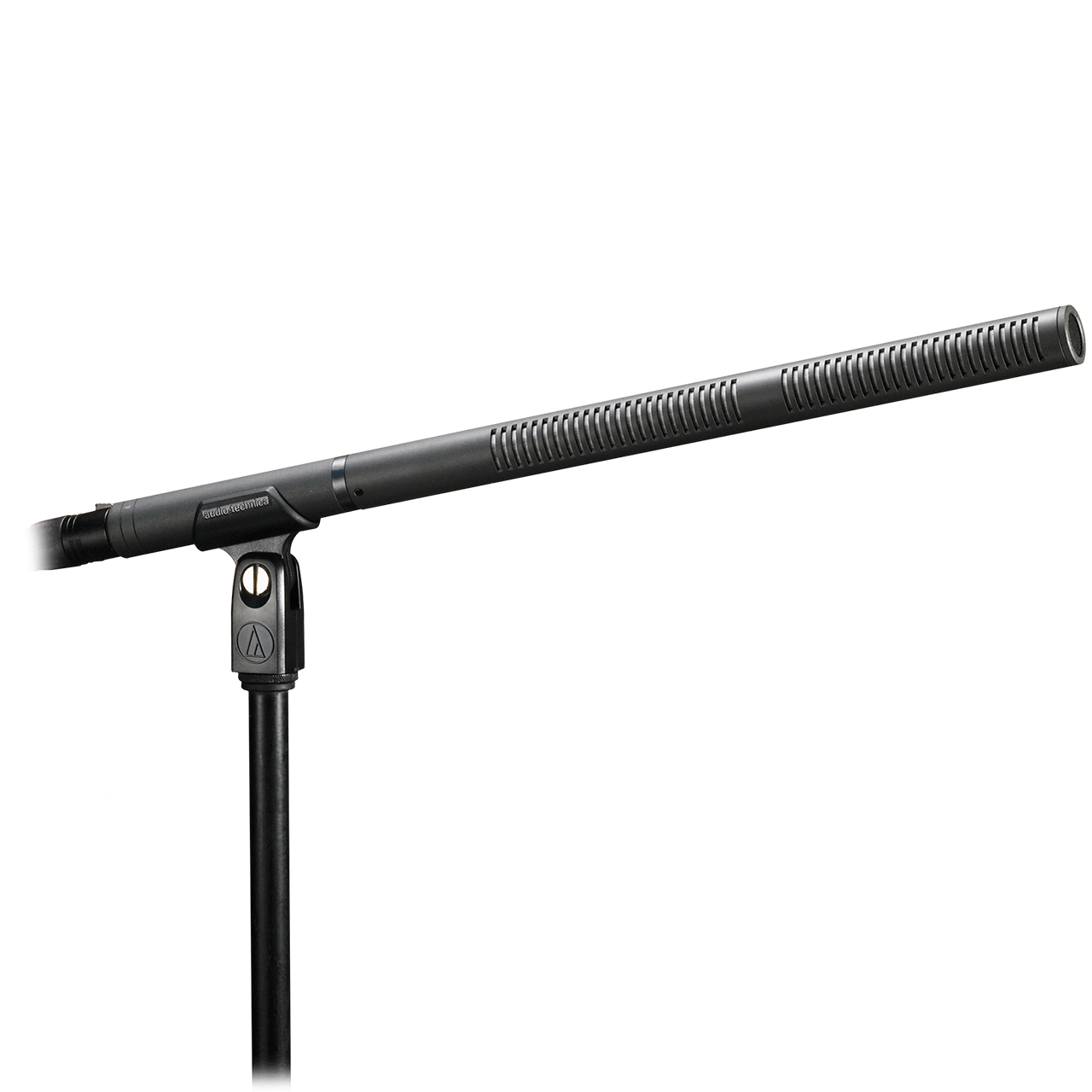

Audio-Technica AT8035 Condenser Microphone
Line + Gradient Condenser Microphone
The length (14.53") of the AT8035 Line + Gradient Condenser Microphone is well-suited for ENG, outdoor recording and other specialized uses. The microphone is designed for video production and broadcast (ENG/EFP) audio acquisition. Suited for both boom & handheld use, it provides the narrow acceptance angle desirable for long-distance sound pickup, featuring excellent sound rejection from the sides and rear of mic and switchable low-frequency roll-off. It operates on battery or phantom power.
Features
- Designed for video production and broadcast (ENG/EFP) audio acquisition
- Length is well-suited for ENG, outdoor recording and other specialized uses
- Provides the narrow acceptance angle desirable for long-distance sound pickup
- Excellent sound rejection from the sides and rear of mic
- Switchable low-frequency roll-off
- Operates on battery or phantom power
- RoHS compliant—free from all substances specified in the EU directive on hazardous substances
Specifications
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Line + gradient
Frequency Response: 40-20,000 Hz
Low Frequency Roll Off: 80 Hz, 18 dB/octave
Open Circuit Sensitivity: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa ; Battery: -39 dB (11.2 mV) re 1V at 1 Pa
Maximum Input Sound Level: Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.; Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range: Phantom: 110 dB, 1 kHz at Max SPL; Battery: 98 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 72 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 2 mA typical
Battery Type: 1.5V AA/UM3
Battery Current/Life: 0.4 mA / 1200 hours typical (alkaline)
Switches: Flat, roll-off
Weight: 170 g (6.0 oz)
Dimensions: 369.0 mm (14.53") long, 21.0 mm (0.83") diameter
Output Connector: Integral 3-pin XLRM-type

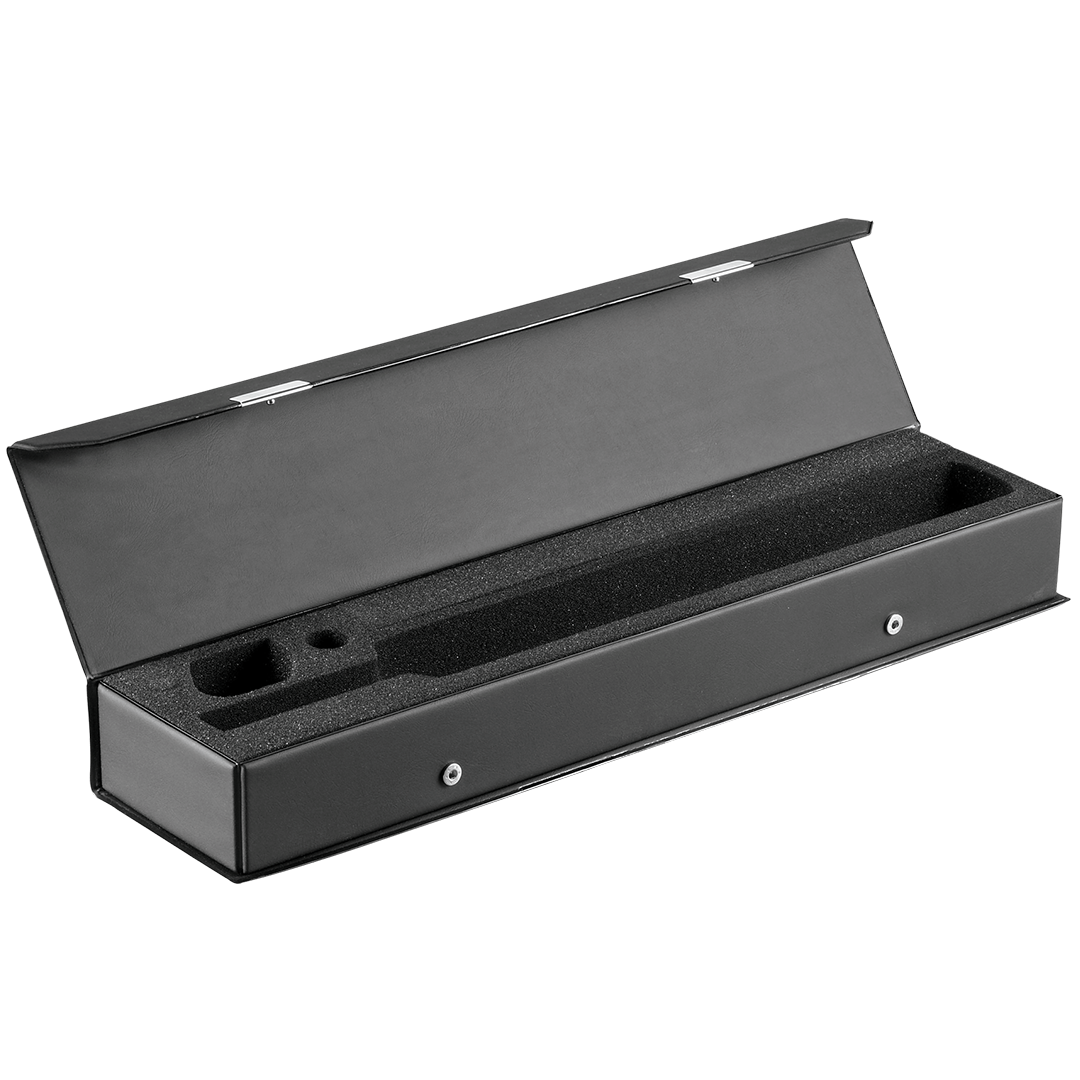

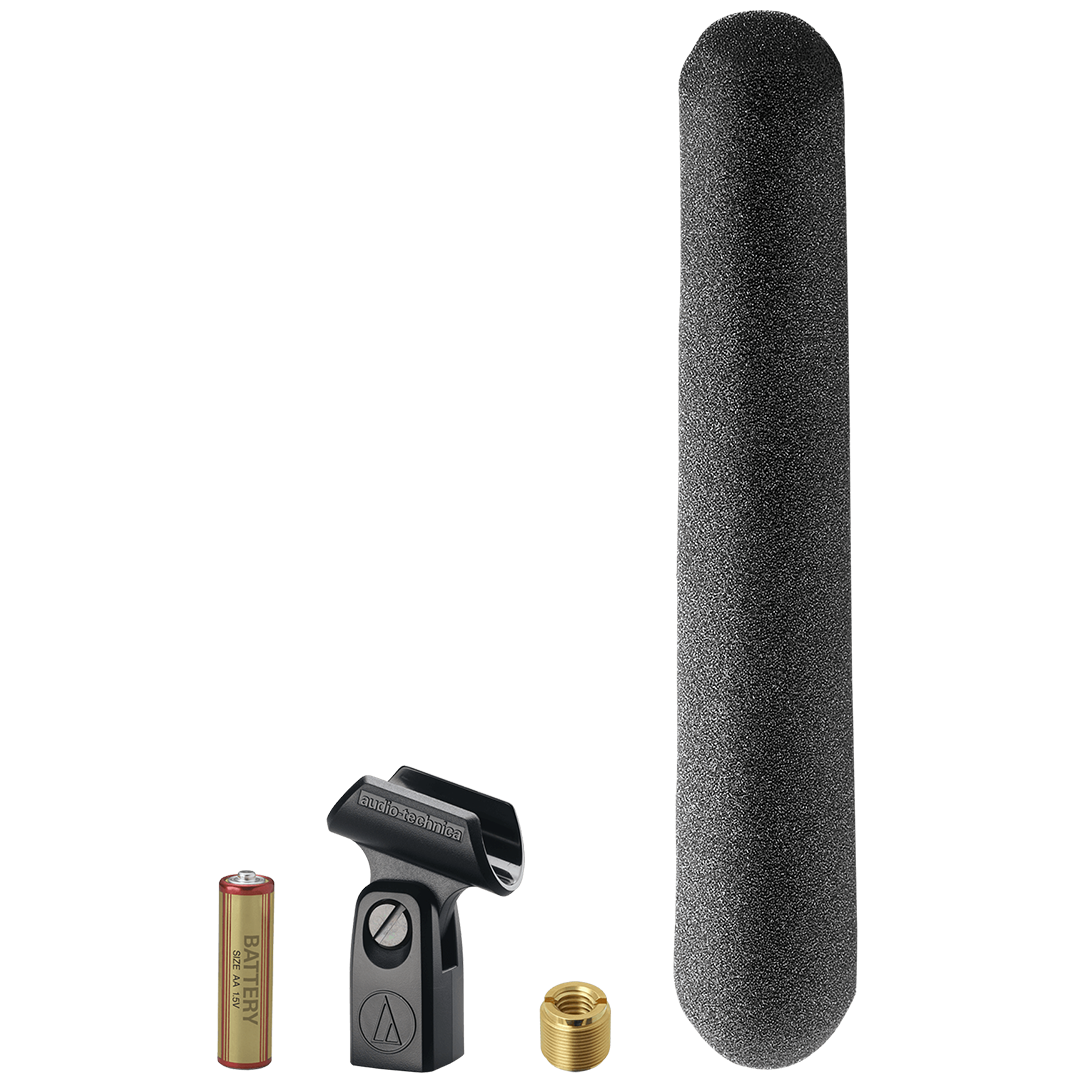

Accessories Included: AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8132 windscreen; battery; protective carrying case
Audio-Technica Case Style: SG1
