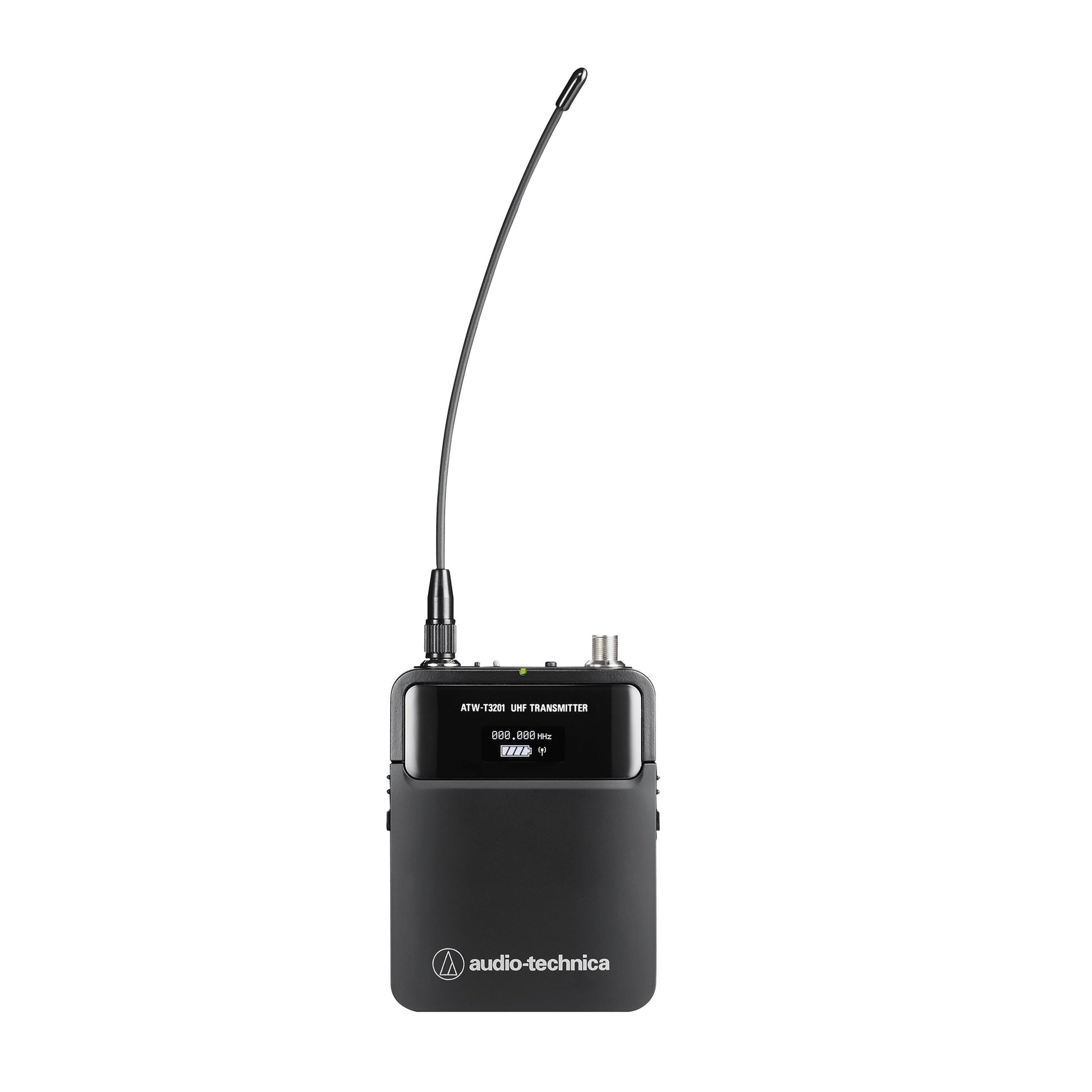

Audio-Technica ATW-T3201AEE1 Wireless Bodypack Transmitter - EE1 Band || Guildwater Gear is an Authorized Audio-Technica Dealer.
3000 Series (fourth generation) body-pack transmitter.
FEATURES
- Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- OLED screens for optimal readout of key settings and alerts
SPECIFICATIONS
-
RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
-
Battery Life: High: 8.0 hours / Low: 9.0 hours (alkaline)
- High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
- Depending on battery type, usage and environmental conditions.
-
Battery Type: Two 1.5V AA, not included
-
Dimensions: 64 mm (2.5") x 82 mm (3.23") x 23 mm (.91") (W x D x H)
-
Input Connections: 4-Pin screw down cH-Style Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +5V
-
Net Weight: 102 g (0.22 lb.)
-
Spurious Emissions: Following Federal and National Regulations
