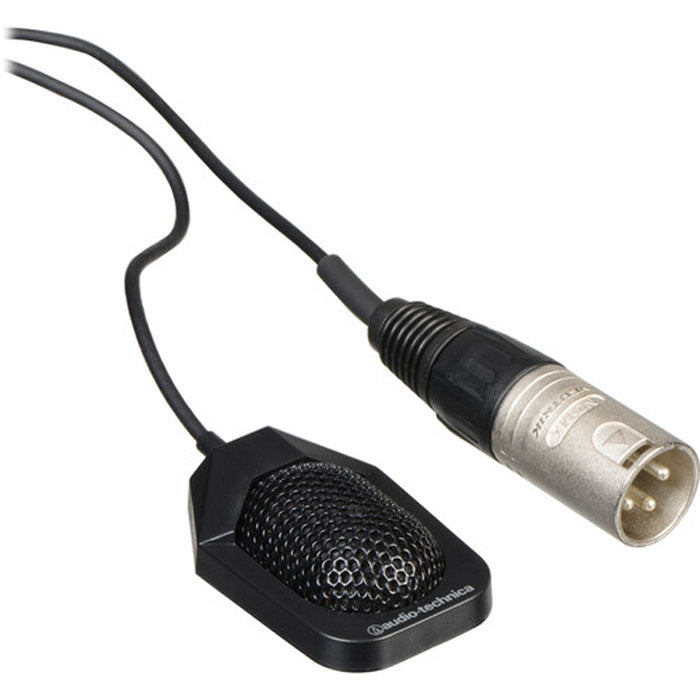

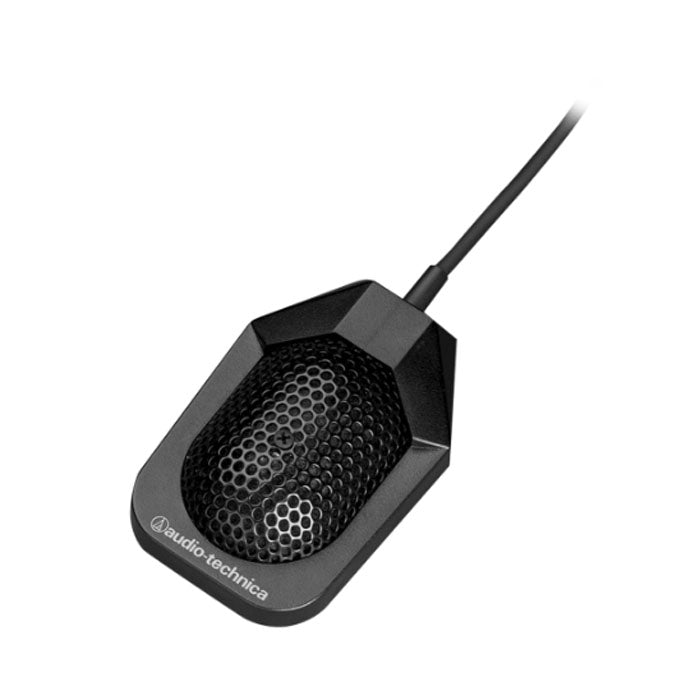

Audio-Technica PRO42 Miniature Condenser Boundary Microphone
The PRO 42s low-profile design assures inconspicuous appearance for surface-mount use in boardroom, school, government, house of worship and other installed applications. Designed for sound reinforcement, broadcasting and recording applications, the PRO 42 brings crisp, intelligible audio reproduction to the podium, stage, conference table and beyond. With a wide-range condenser element and low-mass diaphragm for superior performance, the microphone is equipped with self-contained electronics, eliminating the need for external power modules.
Features
- Very low-profile design for minimum visibility
- Wide-range condenser element with low-mass diaphragm for superior performance
- Uniform polar pattern for maximum rejection of unwanted sounds
- Rugged design and construction
- 25' (7.6 m) cable permanently attached between microphone and XLRM-type connector
Specifications
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Half-cardioid (cardioid in hemisphere above mounting surface)
Frequency Response: 70-14,000 Hz
Open Circuit Sensitivity: -38 dB (12.5 mV) re 1V at 1 Pa
Maximum Input Sound Level: 134 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range: 105 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 65 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 9-52V DC, 2 mA typical
Weight (Microphone): 1.2 oz (35 g)
Cable: 25' (7.6 m) long, permanently attached
Dimensions (Power Module): 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter
Dimensions (Microphone): 1.44" (36.6 mm) maximum width, 2.14" (54.3 mm) maximum length, 0.61" (15.5 mm) height
Output Connector (Power Module): 3-pin XLRM-type on cable
