Blue Cat Audio DP Meter Pro || Your Digital Software Registration Code and Instructions Will Be Sent to You, Along With an URL Connecting You Directly to The Manufacturer, Who Will Provide You With Your Software Digitally. Please Be Aware That Software Is Non-Cancelable and Non-Returnable. If you have any questions about this product please do not hesitate to contact us. Guildwater Gear is an Authorized Blue Cat Audio Dealer through the Xchange Market. There, You Can Find Us Among Their List of Authorized Resellers.

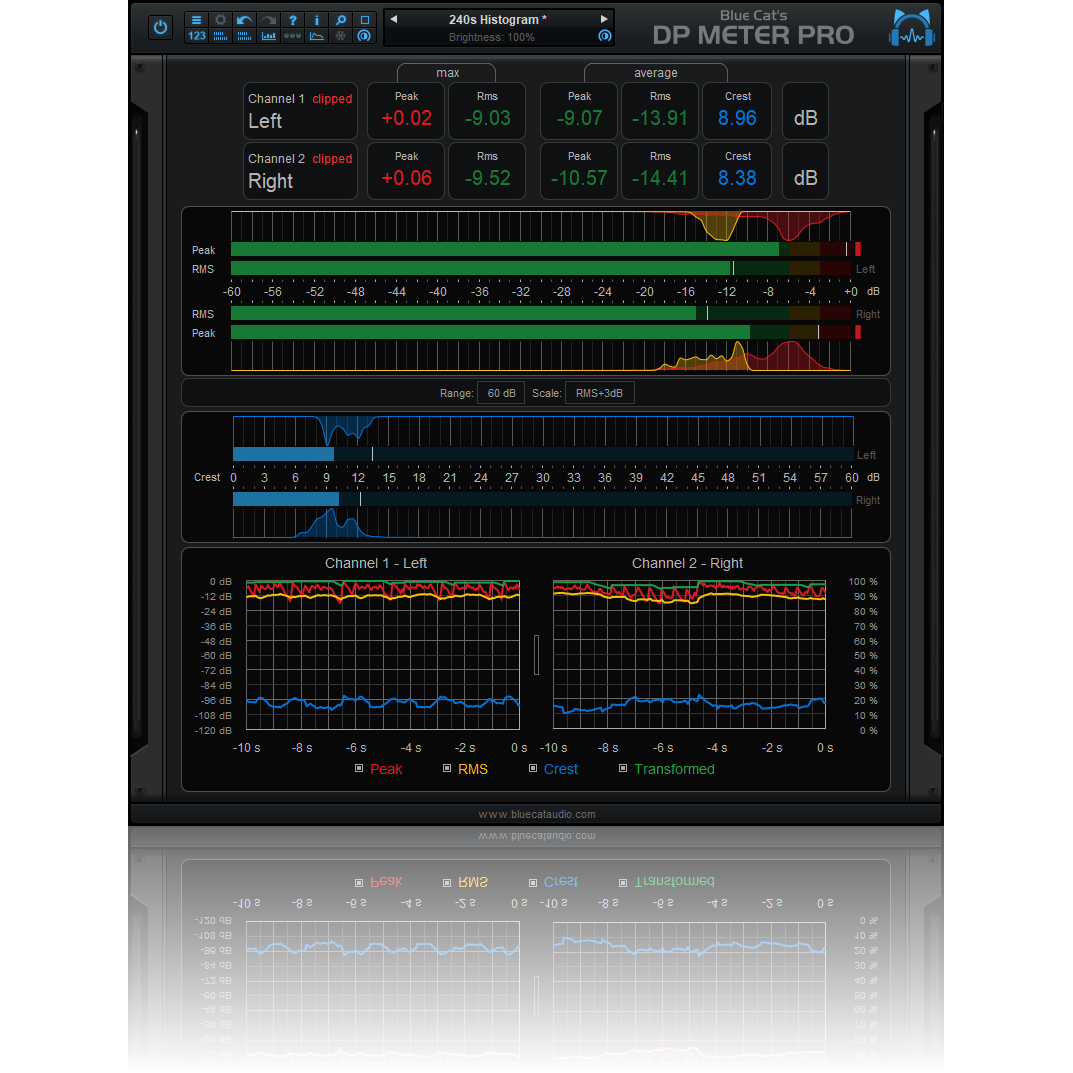

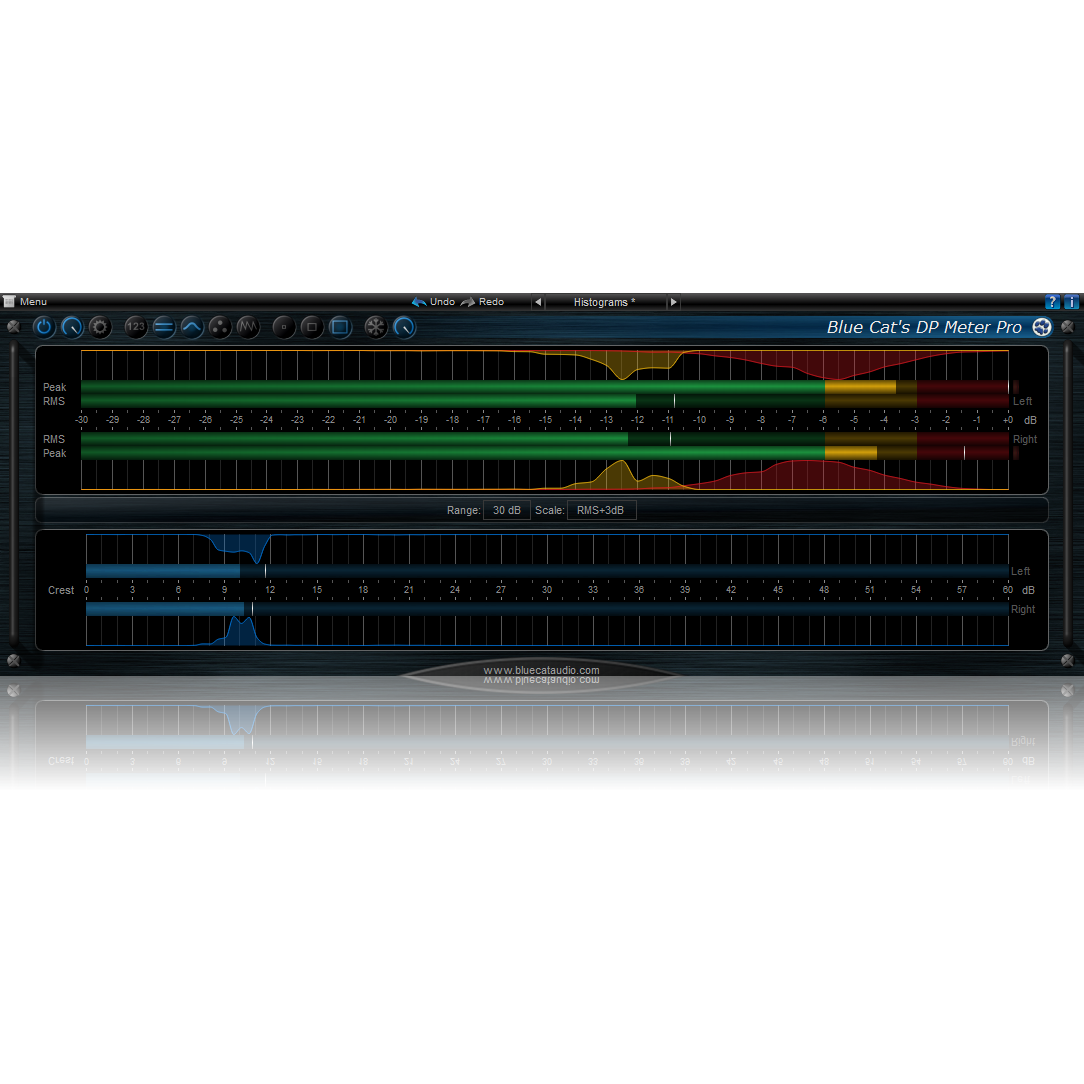

Blue Cat's DP Meter Pro (DPMP) is a unique audio analysis tool: it combines very flexible and customizable audio meters with advanced side chaining control capabilities thanks to its MIDI and automation outputs.
The metering capabilities of the DPMP plug-in let you control and monitor audio signals exactly the way you want: almost every aspect of the peak, RMS and crest factor meters can be customized. It proposes five different scales by default, including Bob Katz's popular K-System scales (K-12, K-14, K-20), and you can create your own.
Large colored statistics displays following your own scales are included for an overview of a track, while histograms give you a precise measurement of the dynamic range of the track. The graphs show the evolution of the audio envelopes over time, and the mid-side switch lets you verify mono compatibility problems and check the "stereoness" of your audio sources very easily. Whether you are working with mono, stereo or surround tracks, this plug-in will fit into your workflow. All envelopes (peak, RMS, crest factor...) can be reused for additional monitoring or side chaining purposes: combined together, reversed, modified and recorded as automation curves or sent as MIDI CC messages, they can control other effects in real time.
The DP Meter Pro Tutorials explain how to use these unique capabilities in your favorite host. Possibilities are endless, from voice over and ducking to side chain compression, multiple tracks monitoring or dynamic stereo enhancement. It is also possible to control external MIDI hardware (such a synths, MIDI effects), video effects or lighting systems with an audio signal.
- Multichannel peak, RMS & crest factor meter.
- True dynamic range measurement with levels histograms.
- Instant, average and maximum audio levels.

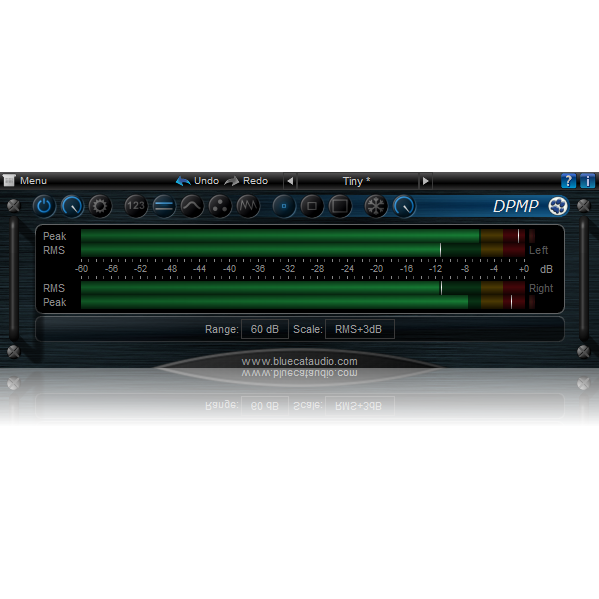

- Modular user interface to fit into your workflow, with multiple screen sizes.

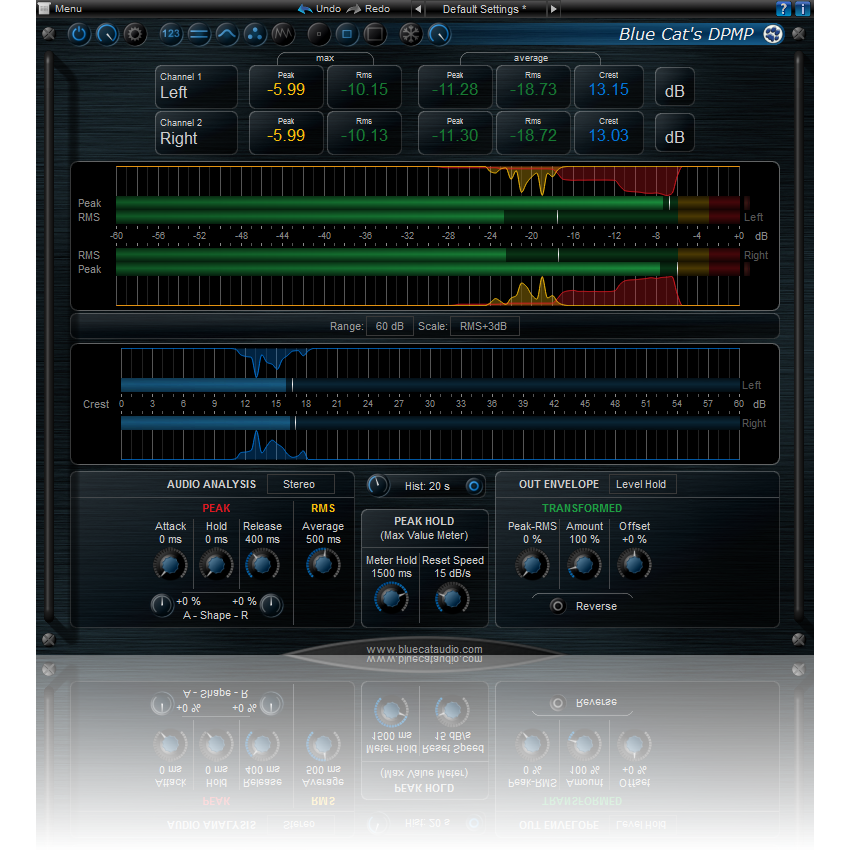

- Total control over the metering characteristics, including attack/release shape.
- Bob Katz's K-System scales support (K-12 / K-14 / K-20 and custom)

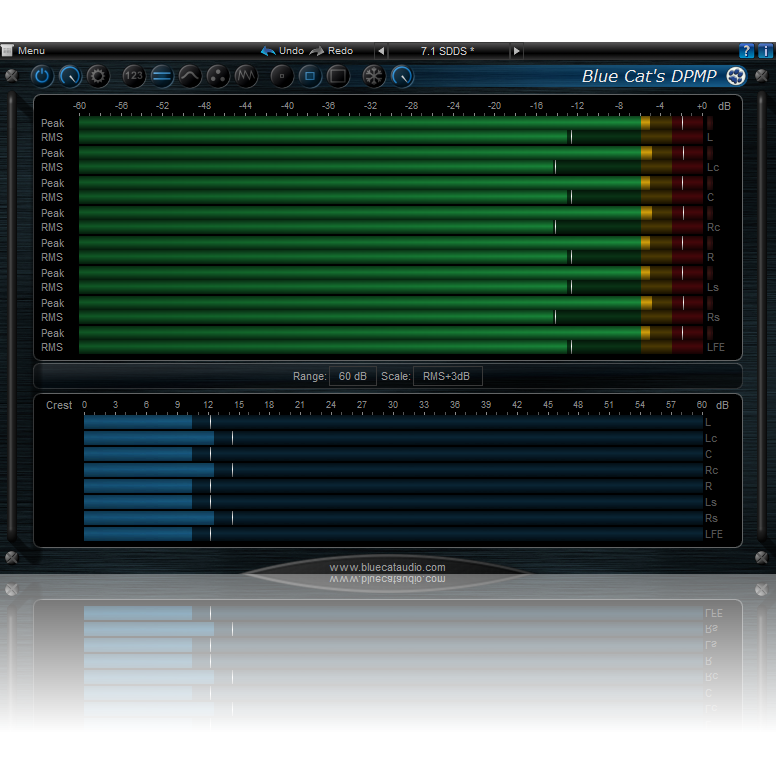

- Mono, stereo, mid-side or surround analysis.

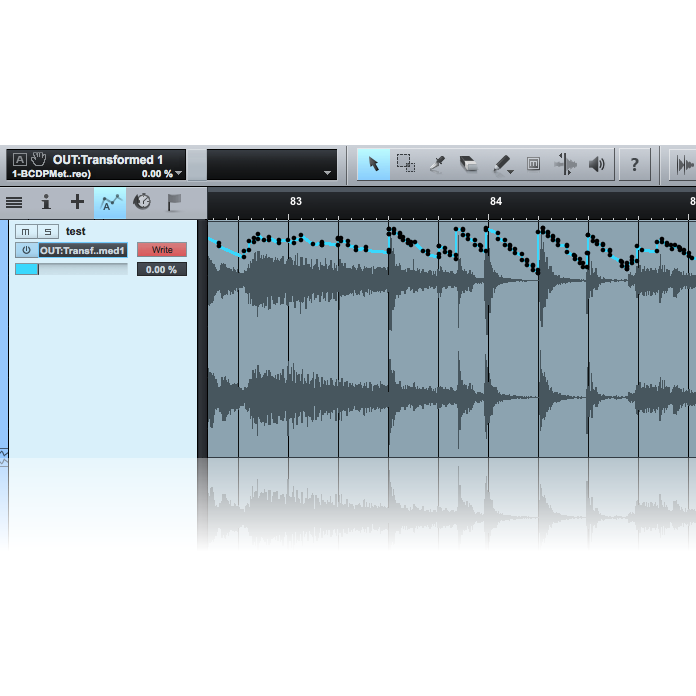

- Record measurements (peak, RMS, crest factor, clip etc.) as automation curves.
- Control in real time any MIDI-compatible plug-in or external MIDI device with the generated envelopes thanks to the plugin's MIDI CC output. See the Tutorials section for more examples.
- Manage the shape of the output envelope: record reversed envelope, change amount of signal, and offset the generated envelope. This lets you use the plug-in for side chain ducking, compression and much more.
- Easy 'stereoness' and phase cancelation measurement.
Blue Cat Audio Standards
- Available as: Mac-AAX, Mac-AU, Mac-VST, Mac-VST3, Win-AAX, Win-VST, Win-VST3, Win x64-AAX, Win x64-VST, Win x64-VST3.
- Native DSP code for optimal performance.
- Full MIDI control and automation support with silent, zipper-free parameters update, advanced response control and MIDI Learn.
- No CPU load on idle: when the plug-in is fed with silence, the processing smoothly shuts down, to optimize the CPU usage of your Digital Audio Workstation.
- Customizable user interface with transparency management and zoom.
- Automation and MIDI output: record output parameters as automation curves or send MIDI CC messages to other plug-ins for powerful side chain effects.
- Smooth Bypass: activate/deactivate the plug-in with absolutely no noise.
- Full featured integrated presets manager.
- Copy/paste the state of the plug-in between instances using the system clipboard.
- Any sample rate supported.
- An SSE2-enabled processor (Pentium 4 or newer).
- Microsoft Windows Vista, Windows 7, 8 or 10.
- Any VST / AAX compatible host software (32 or 64 bit).
Mac OS X
- An Intel processor.
- Mac OS 10.7 or newer.
- Any VST / Audio Unit (32/64-bit) / AAX compatible application.
