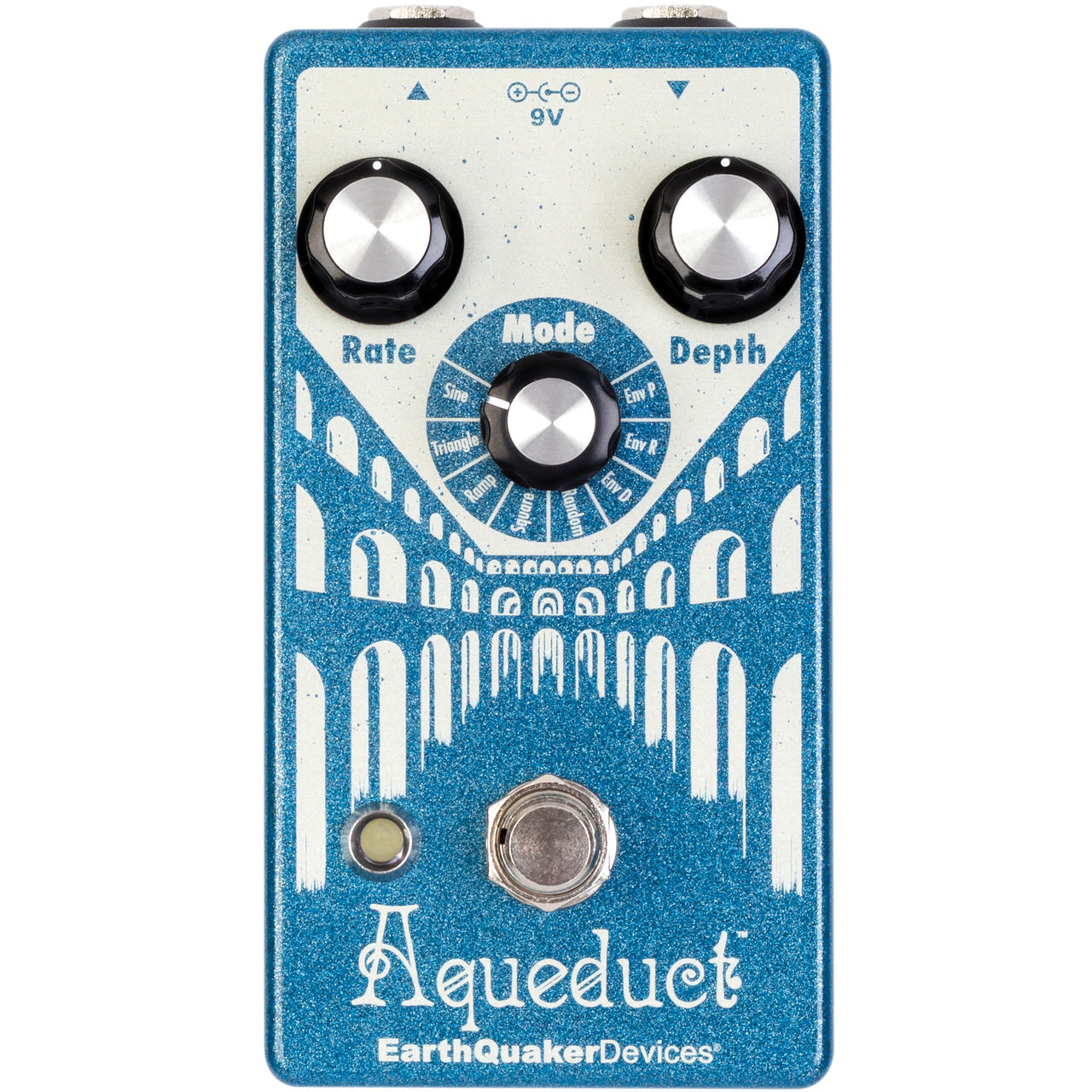

EarthQuaker Devices Aqueduct Vibrato Pedal
[Guild Note: No one can present EarthQuaker Devices better than the EQD Marketing Team themselves. What follows derives straight from either the manufacturer's website, or the product's instruction manual.]
Envelope-Controlled Pitch mode (Env P) is equipped with a wet/dry blend expanding the tonal possibilities beyond vibrato to include chorus, flanger, and tactile tremolo bar-like pitch bends. We’ve lovingly nicknamed it “the My Bloody Valentine setting.” Aqueduct’s intuitive control set make it easy for pedal novices and tap-dancing pedal-heads alike to dial in swampy vintage-inspired vibrato, synthesizer-like sonar pulses, touch-sensitive pitch modulation, and more. Rate adjusts the LFO speed which controls how quickly the pitch rises and falls. Depth controls the LFO amplitude, adjusting the intensity of the vibrato effect. The rotary switch labeled Mode selects between one of eight LFO waveshape and envelope combinations which drastically alter the character of the modulation. It is also the latest pedal to feature EarthQuaker Devices proprietary Flexi-Switch™ feature which allows users to select between momentary and traditional latching-style switching in the moment and on the fly. For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass. For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
- True pitch-shifting vibrato
- Easily conjure swampy vintage-inspired vibrato, synth-like sonar pulses, touch-sensitive pitch modulation, chorus, flanger, and tactile tremolo bar-like pitch bends from a single pedal
Eight modulation modes
- Sine: The smoothest and most subtle of all waveforms, sine waves are most commonly associated with classic amp-like vibrato.
- Triangle: Triangle waves have a sharper rise and fall than sine waves with a more pronounced pitch bend at the peak of each LFO cycle.
- Ramp: Like a triangle wave with a twist. The Ramp waveform has a sharp sonar pulse followed by a rapid downward slope with a synthesizer-like sustain and release.
- Square: Square waves are the most rigid and abrupt of the waveforms. Rather than gliding smoothly between pitches, square waves produce an instant on-or-off transition between notes.
- Random: introduces a “warped record” effect at low settings and rolls the dice on an unpredictable assortment of greasy pitch-bends as the Depth is increased
- Env D: Envelope-Controlled Depth mode. The waveshape is set to a sine wave, the speed of which may be adjusted using the Rate control. The Depth control sets the sensitivity of the envelope - the point at which the effect kicks in as you play. In this mode, your pick attack sets the intensity of the modulation. The harder you dig in, the more pronounced the effect.
- Env R: This is Envelope-Controlled Rate mode. In this mode, the input level (i.e. pick attack) controls the LFO rate. Play harder for faster modulation or lay low for slower modulation speeds. The Rate control adjusts the sensitivity of the envelope. Depth selects the LFO intensity.
- Env P: This is Envelope-Controlled Pitch mode, which we’ve lovingly nicknamed “The My Bloody Valentine setting.” If your instrument doesn’t have a tremolo bar, it does now. In this mode, the frequency modulation is controlled by the dynamics of your pick attack and not the LFO.
- For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
- For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
- Flexi-Switch allows for momentary and traditional latching-style switching
- True Bypass
- Silent Relay-Based Switching
- All-Analog Dry Signal Path
- All-Digital Wet Signal Path
- Current Draw: 68mA
- Input Impedance: 1M Ohm
- Output Impedance: <10K Ohm
- Boxed Dimensions: 5.5” x 3.25” x 3.25”
- Out-of-Box Dimensions: 4.75" x 2.50″ x 2.25″
- Boxed Weight (USA): 1.1 lbs.
- Each and every Aqueduct is constructed with human hands in Akron, Ohio, USA.
