Description

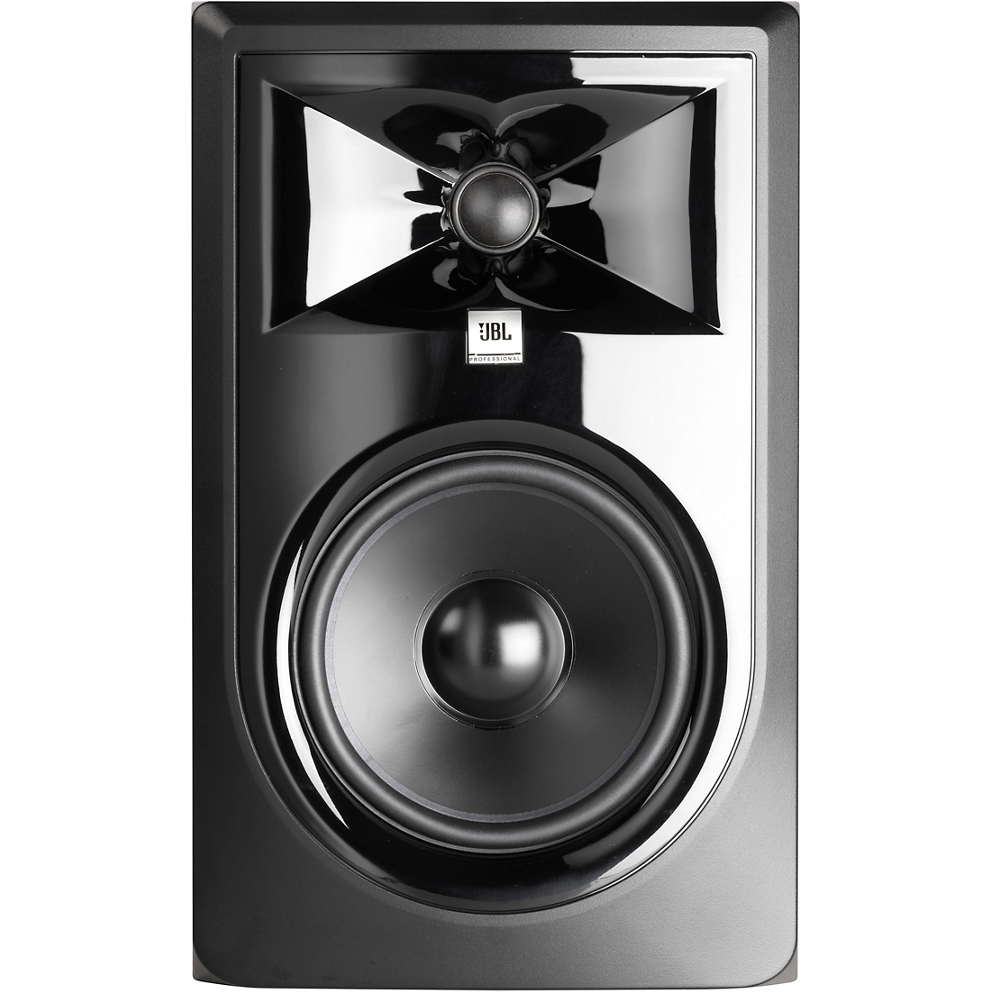

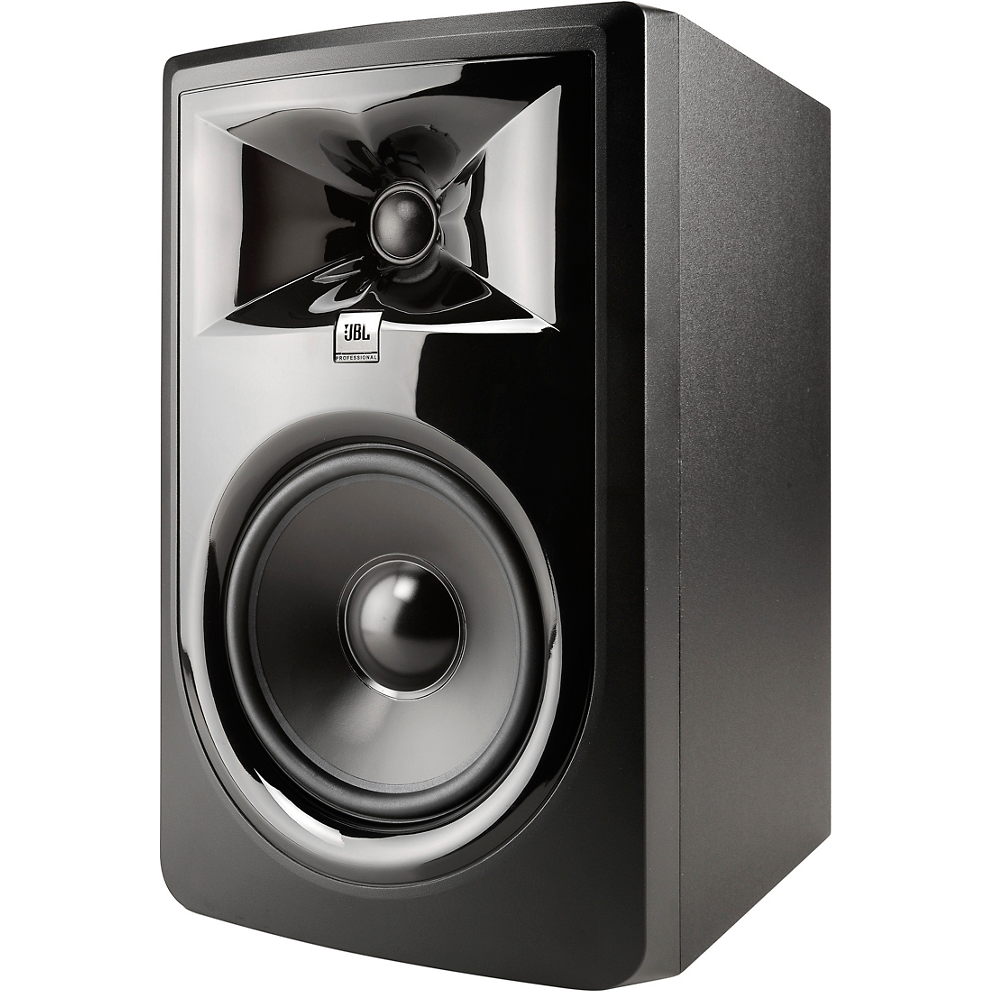

JBL 306P MKII Studio Monitor (6.5" Powered)
Powered 6" Two-Way Studio Monitor

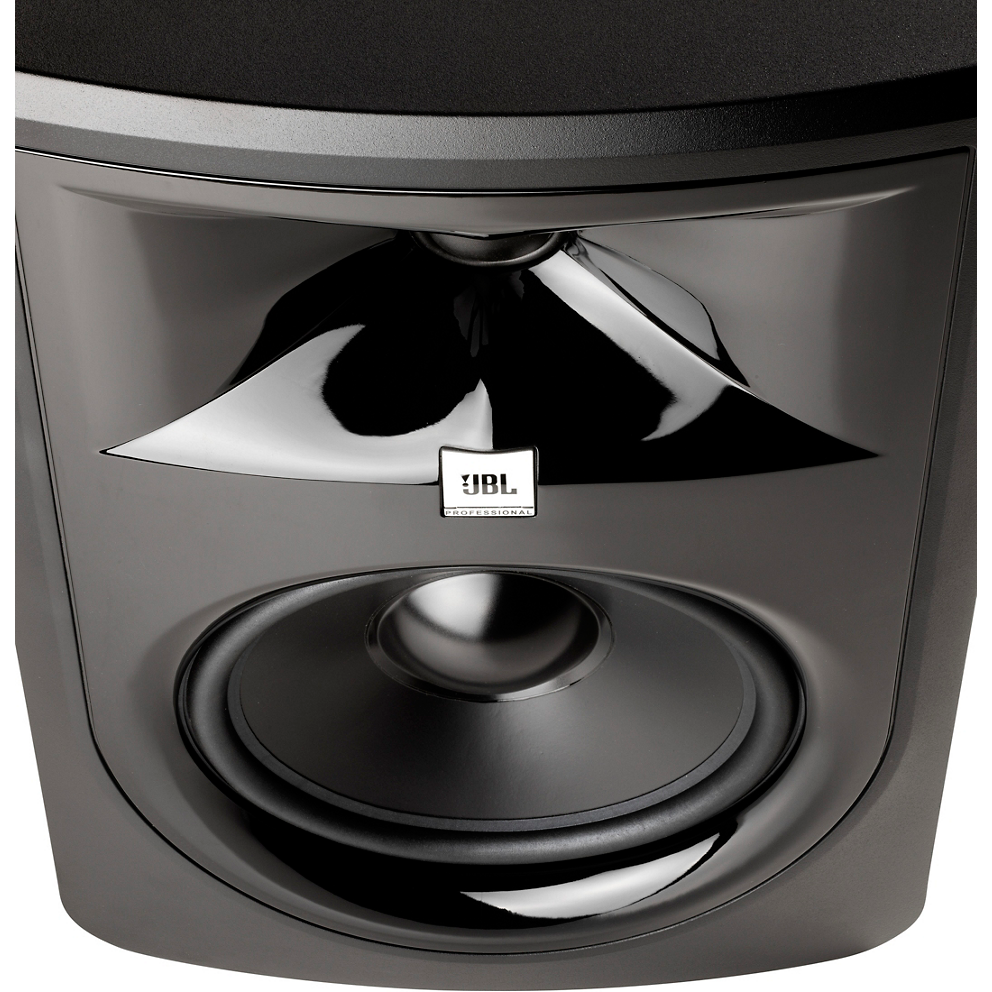

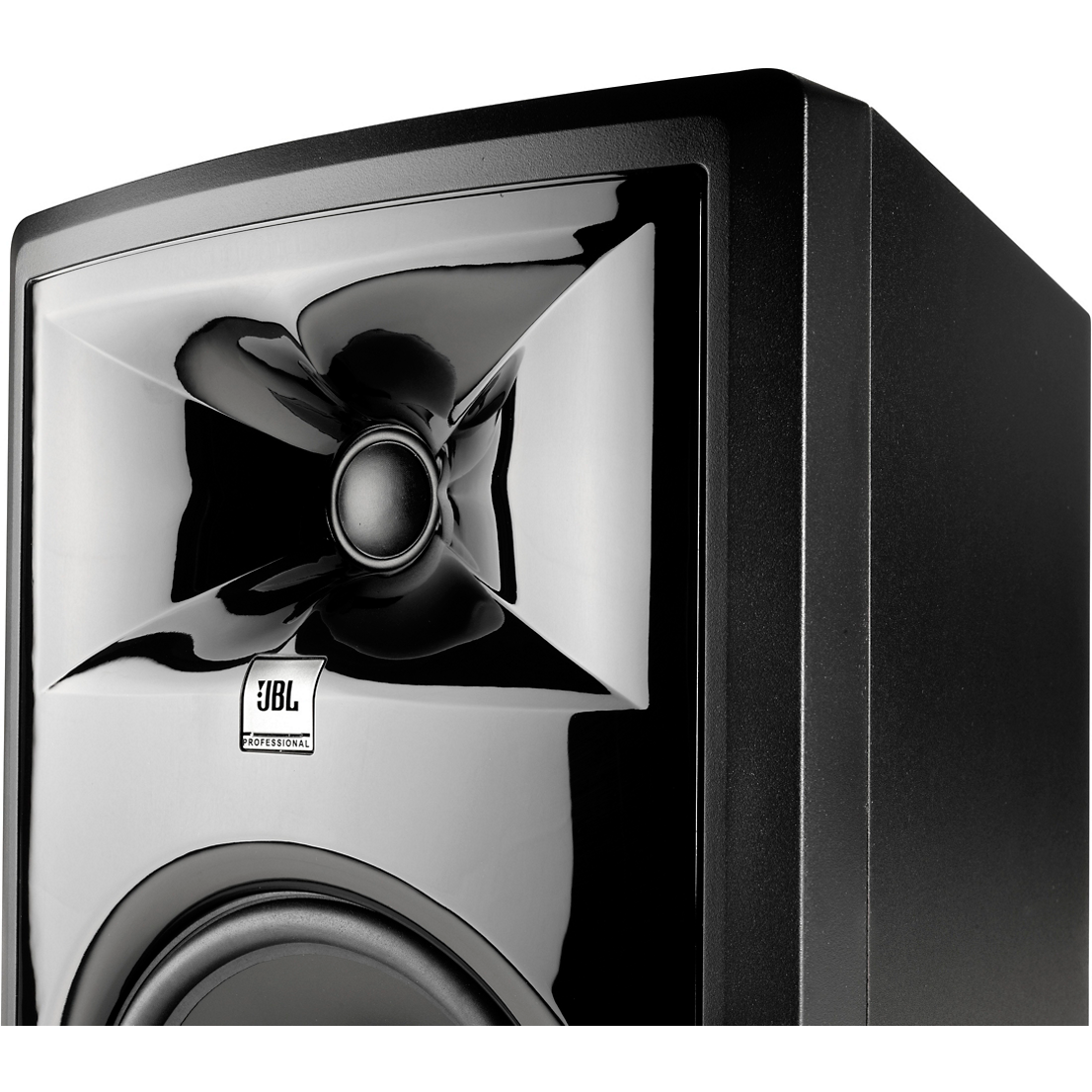

Patented Image Control Waveguide - For detailed imaging and a broad, room-friendly sweet spot. Next-generation JBL transducers - For optimized transient response and improved linearity. New Boundary EQ settings - Compensate for low frequency variants introduced by the environment. 3-position HF Trim switch - Adjusts high-frequency output to room acoustics or personal preferences. Patented Slip Stream™ low-frequency port - For superior bass performance at all playback levels. Dual integrated, custom Class-D amplifiers. Flexible connectivity - With balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control. Engineered to JBL Linear Spatial Reference design criteria - For outstanding accuracy in any working space. Sleek, modern design - Provides a visual upgrade to any studio.
SPECIFICATIONS
- LF Driver Size: 165 mm (6.5")
- HF Driver Size: 25 mm (1")
- HF Driver Type: Soft dome
- Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
- Power Configuration: Bi-amplified
- HF Driver Power Amp: 56 W Class D
- LF Driver Power Amp: 56 W Class D
- Frequency Response: 47Hz - 20kHz (+/-3 dB)
- Frequency Range: 43Hz - 20kHz (-10 dB)
- Low Frequency Extension: 39Hz (-10 dB)
- Maximum Continuous SPL: 92 dB
- Maximum Peak SPL: 110 dB
- Maximum Peak Input Level: +6dBV / +20.3dBu (-10dBV / +4dBu)
- System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
- Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
- Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
- Coverage Pattern: 120 degrees x 90 degrees (horizontal x vertical)
- HF Trim Control: -2dB, 0dB, +2dB
- Boundary EQ: LF Shelf @ 50Hz
- AC Input Voltage: 100 - 240VAC (+/-10%), 50 / 60Hz
- Height: 361 mm (14.2")
- Width: 224 mm (8.8")
- Depth: 282 mm (11.1")
- Net Weight: 6.1 kg (13.42 lbs)
- Enclosure Type: Ported
- Enclosure Construction: 15mm MDF
- Enclosure Finish: Matte black PVC
- Baffle Construction: Injection-molded structural ABS

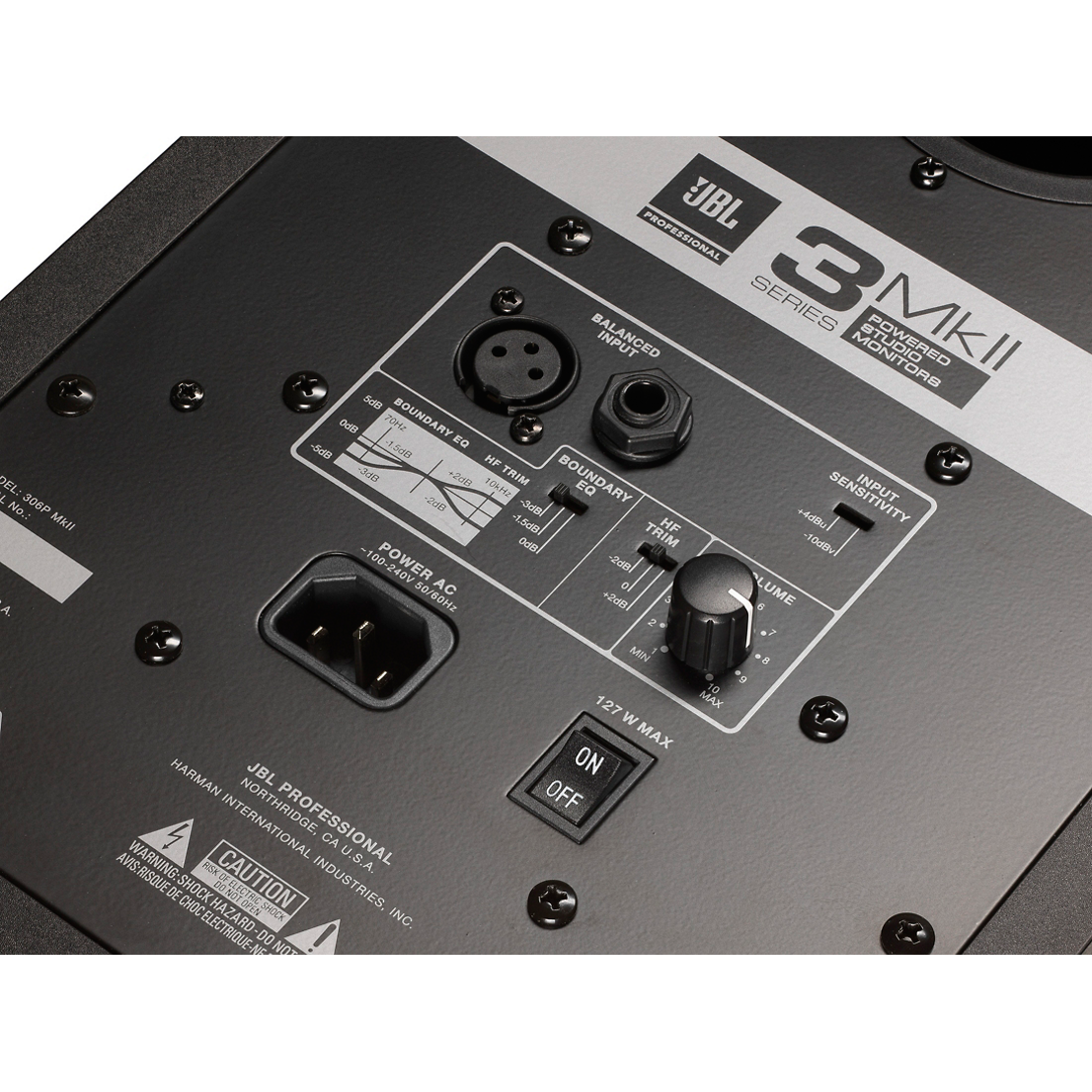

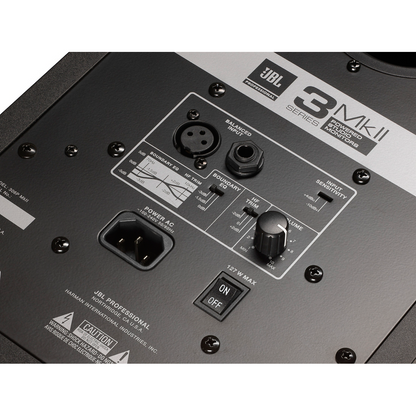

- Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
- Input Sensitivity: 92dB / 1m (-10dBV Input)
What's in the Box?
- 1 x 306P MkII studio monitor
- 1 x Power cord
- 1 x Quick setup guide
- 4 x Peel-off rubber pads
