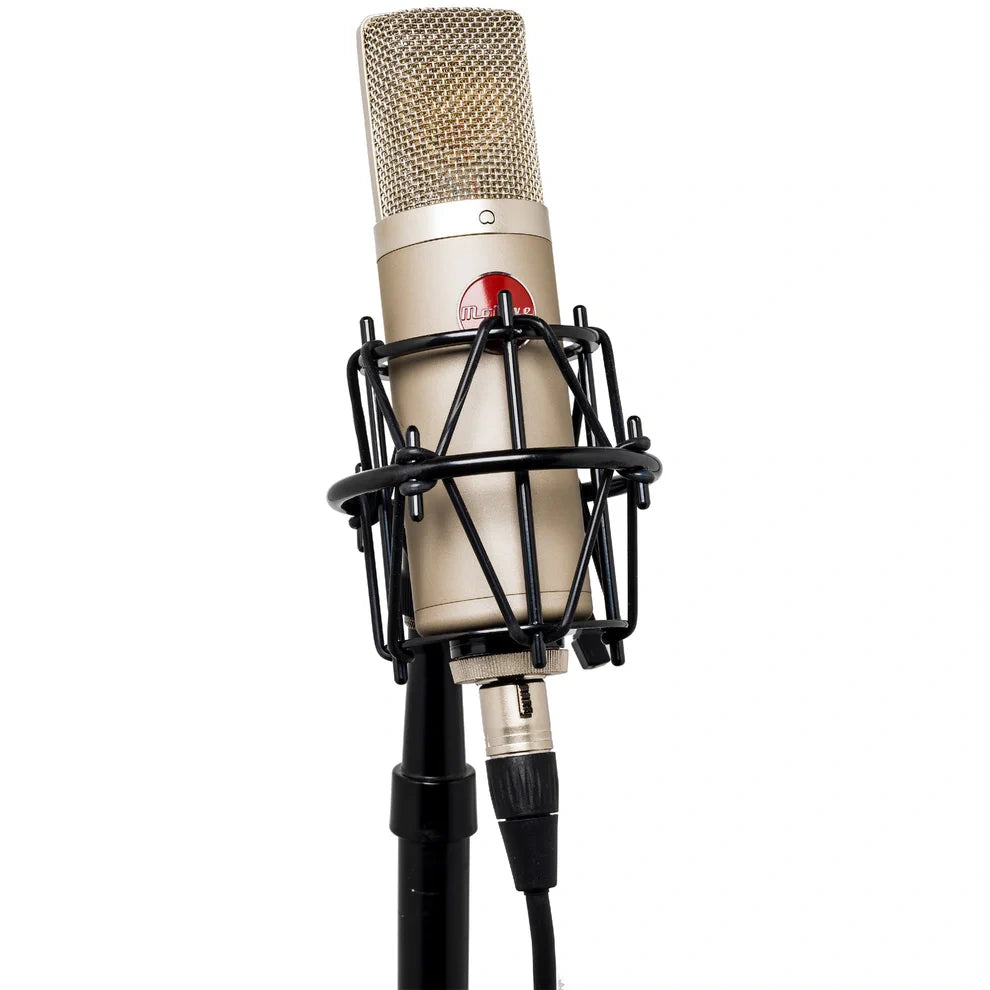

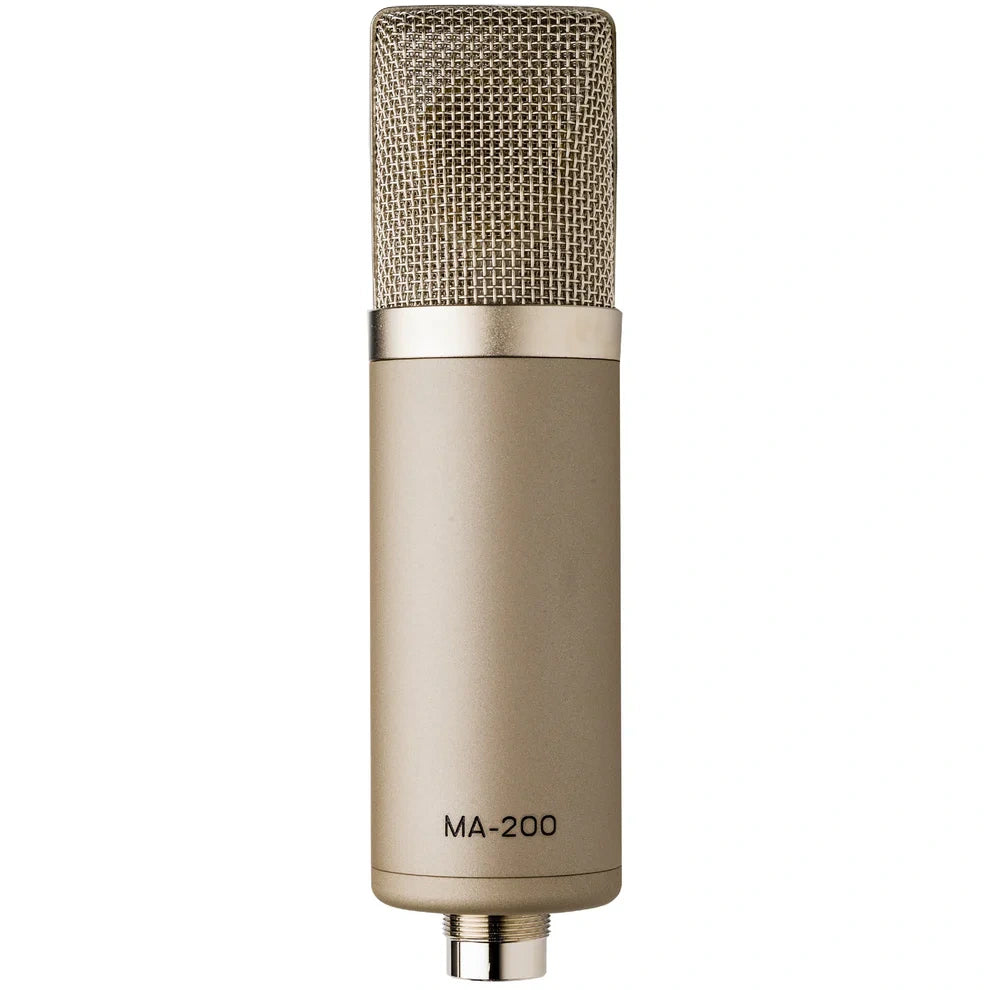

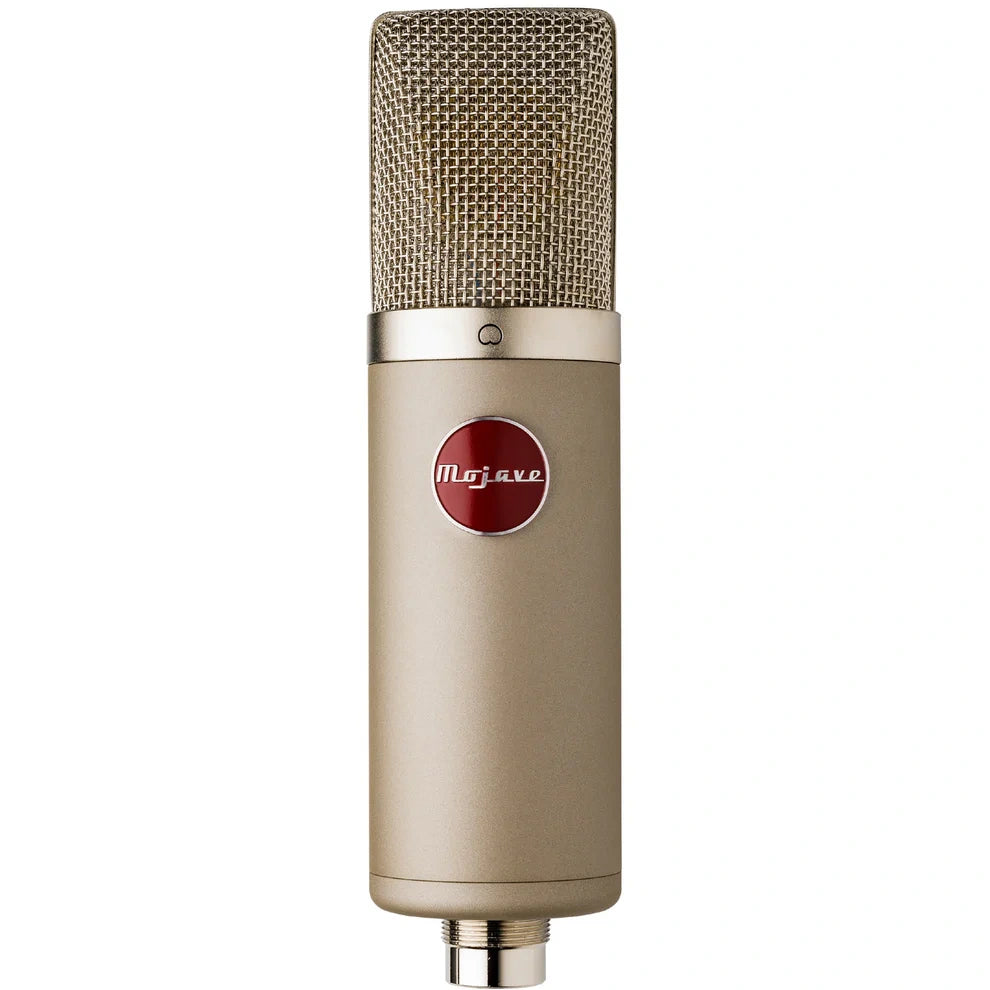

Mojave Audio MA-200 Microphone (Satin Nickel) || Guildwater Gear is an Authorized Mojave Audio Dealer.
THE GIANT SLAYER. Inspired by the iconic U67 but grounded in TECHNICAL GRAMMY-winning designer David Royer's unmistakable design voice, the MA-200 is Mojave's go-to answer for artists who want warmth, depth, and vintage-style character, without the finicky upkeep of a decades-old tube mic. The MA-200 features an open, musical sound that brings out the best in everything from vocals, acoustic instruments, and piano. Mojave Audio's MA-200: Your secret weapon that cuts through the hype.
FEATURES
- K67-style hand-selected 3-micron, single-sided gold-sputtered capsule based on German U67 and U87 style models
- Custom Mojave transformer
- Military grade JAN 5840 vacuum tube
- Internal switchable power supply voltage
- Ultra clean signal path
SPECIFICATIONS
- TRANSDUCER TYPE: Externally excited capacitor type
- DIAPHRAGM: 1-inch diameter, gold sputtered
- DIAPHRAGM THICKNESS : 3-microns
- POLAR RESPONSE: Cardioid
- FREQUENCY RESPONSE: 20 Hz - 20 kHz, +/-3dB
- SENSITIVITY: -37dB re 1V/pa
- MAXIMUM SPL: 120dB
- DISTORTION: head amp only, <1 percent @117dB SPL, <3 percent @ 125dB SPL
- SELF NOISE: 14db nominal, not to exceed 16db (A Weighted)
- IMPEDANCE: 200 ohms, balanced using an output transformer
- VACUUM TUBE: 5840 - pentode tube wired for triode operation
- POWER REQUIREMENTS: 100-120VAC; 220-240VAC, 50 or 60 Hz. Power consumption approx. 10 watts

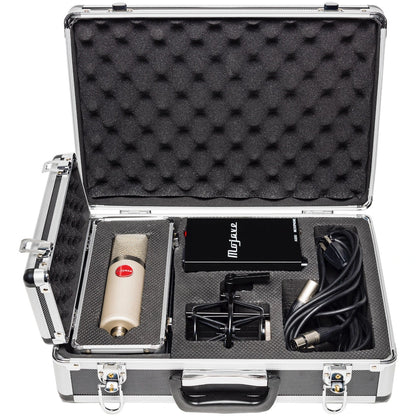

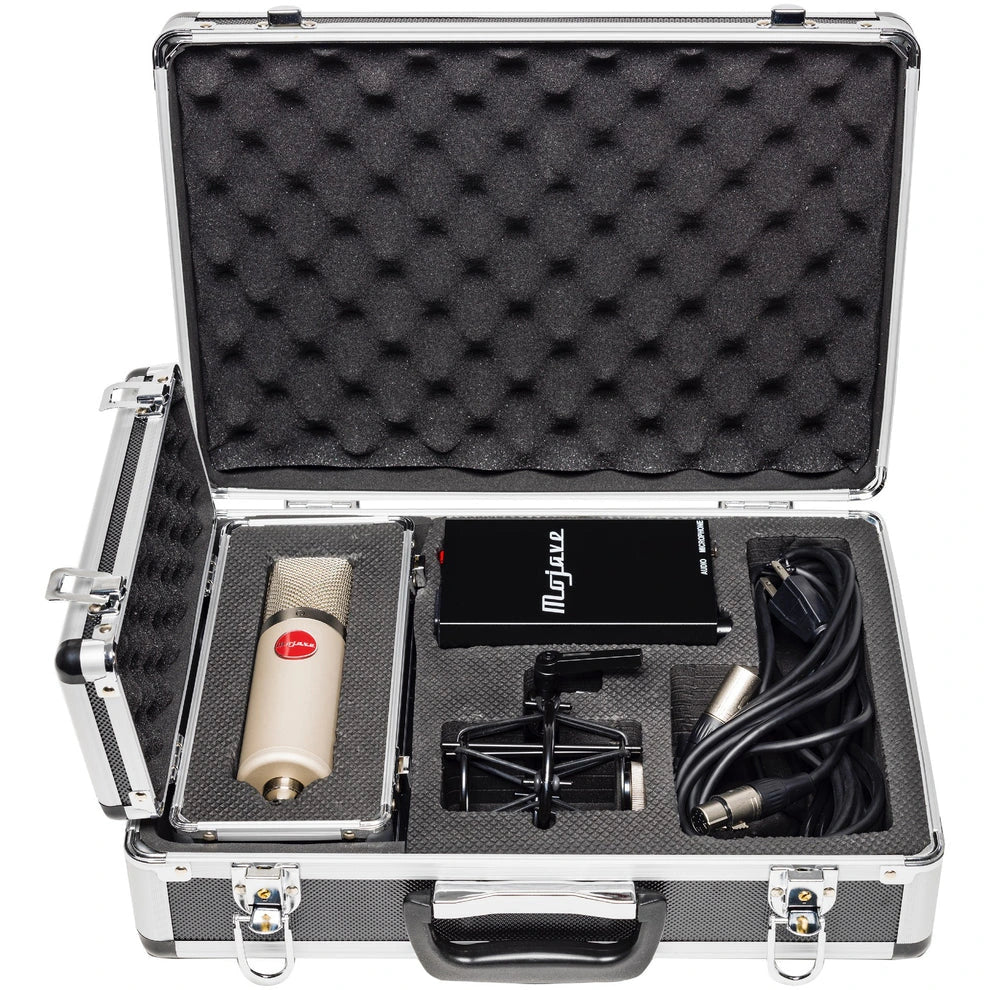

- DIMENSIONS AND WEIGHT: Carrying case with microphone, power supply, shock mount and cables: 13 lb. || Microphone: 7 5/8" X 2" 1 lb.
