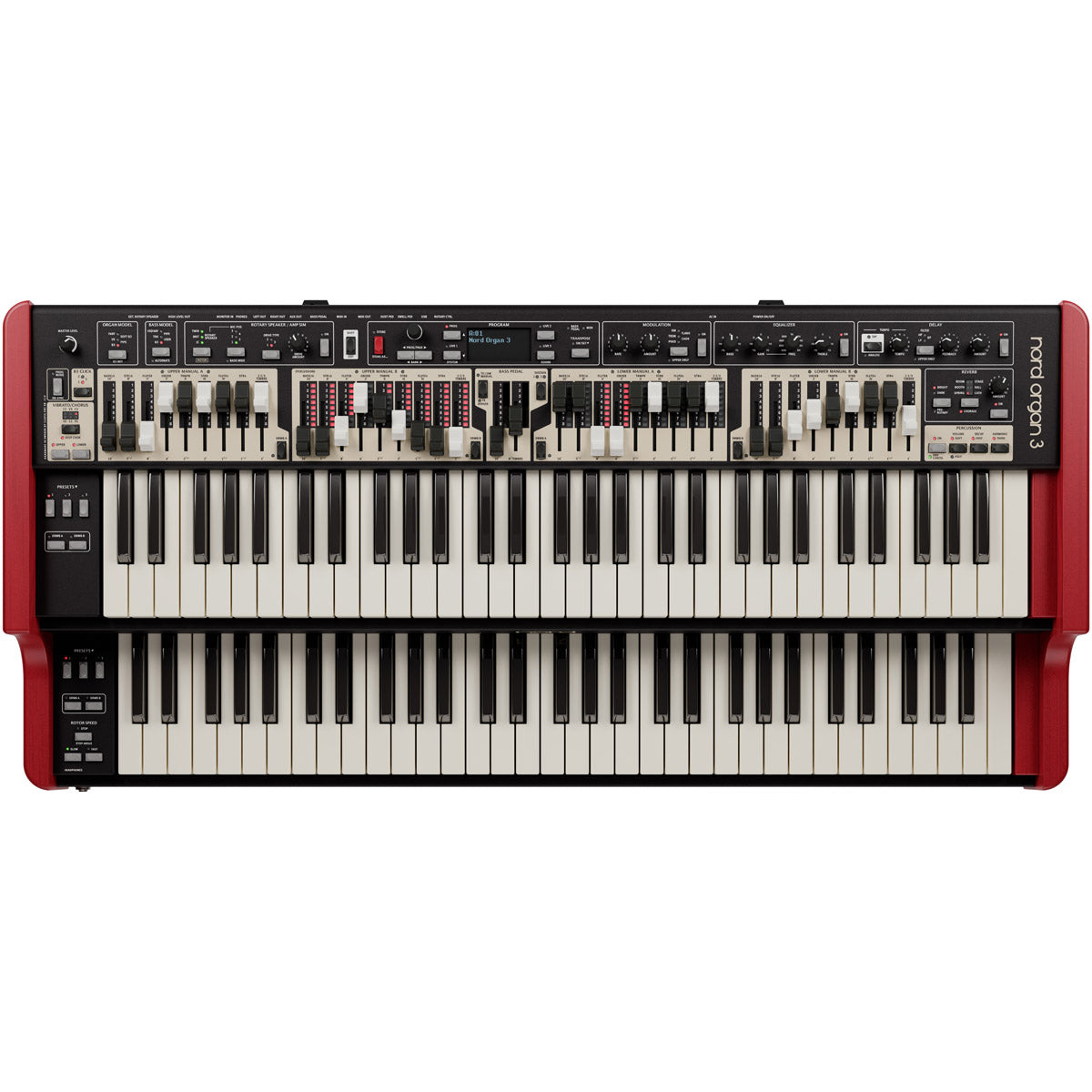

Nord Organ 3 || Guildwater Gear is an Authorized Nord Dealer.
The acclaimed Nord Organ is back - reborn and reimagined as the all-new Nord Organ 3. The latest generation of our Organ series featuring massive improvements to sound, design and performance. With a greatly enhanced organ engine, added modulation effects and a new exceptional-sounding rotary speaker emulation, the Nord Organ 3 offers an unsurpassed level of detail and realism.
FEATURES
- New panel design with OLED display
- Triple sensor keybeds
- LED indicators for preset drawbar settings
- Per program Transpose function
- Bass to lower manual option
- Aux output with routing options for Bass/Pedal drawbars and more
- 11-pin Leslie connector
- High level output
- 2 x 61 Triple Sensor Semi Weighted Waterfall Keyboard
SPECIFICATIONS
- Master Level Control
- OLED display
- Transpose button
- 2 Drawbar sets per manual
- 1 LED indicator set per manual
- Pedal drawbars
- Aux output for optional Bass/Pedal routing
- 400 Program locations
- 3 Live Programs
- 1 Program and 2 Preset buttons per manual
- Drawbar A and B selector buttons per manual
-
Included Accessories: User Manual / Power Cord

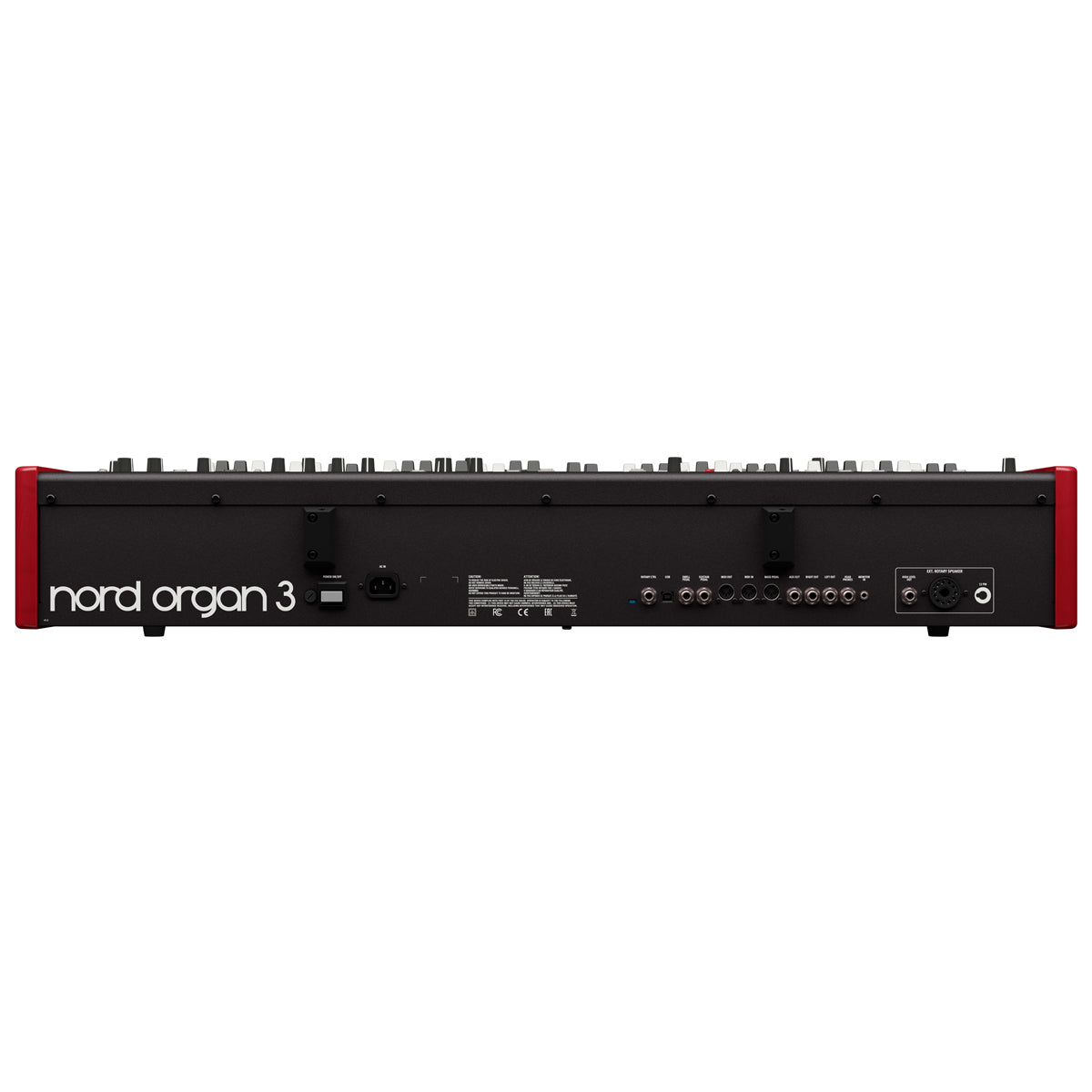

CONNECTIONS
- Stereo Headphone Output - 1/4", 6.35 mm stereo jack
- 2 Line Level Audio Outputs, L & R - 1/4", 6.35 mm jacks, unbalanced
- 11-pin Leslie standard connector
- High Level Out 1/4", 6.35 mm jack
- Aux Out 1/4", 6.35 mm jack
- Monitor Input - 1/8", 3.5 mm stereo jack
- Sustain Pedal Input - 1/4", 6.35 mm jack
- Rotor Control Input - 1/4", 6.35 mm jack, Half-Moon Switch or momentary pedal
- Swell Pedal Input - 1/4", 6.35 mm TRS stereo jack
- MIDI In - 5 pin DIN connector
- MIDI Out - 5 pin DIN connector
- Bass Pedal MIDI In - 5 pin DIN connector
- USB - type B connector
- IEC C14 power connector
DIMENSIONS & WEIGHT
-
Size: 985mm (38.8") x 165mm (6.5") x 446mm (17.6")
-
Weight: 17kg (37.5lbs)
