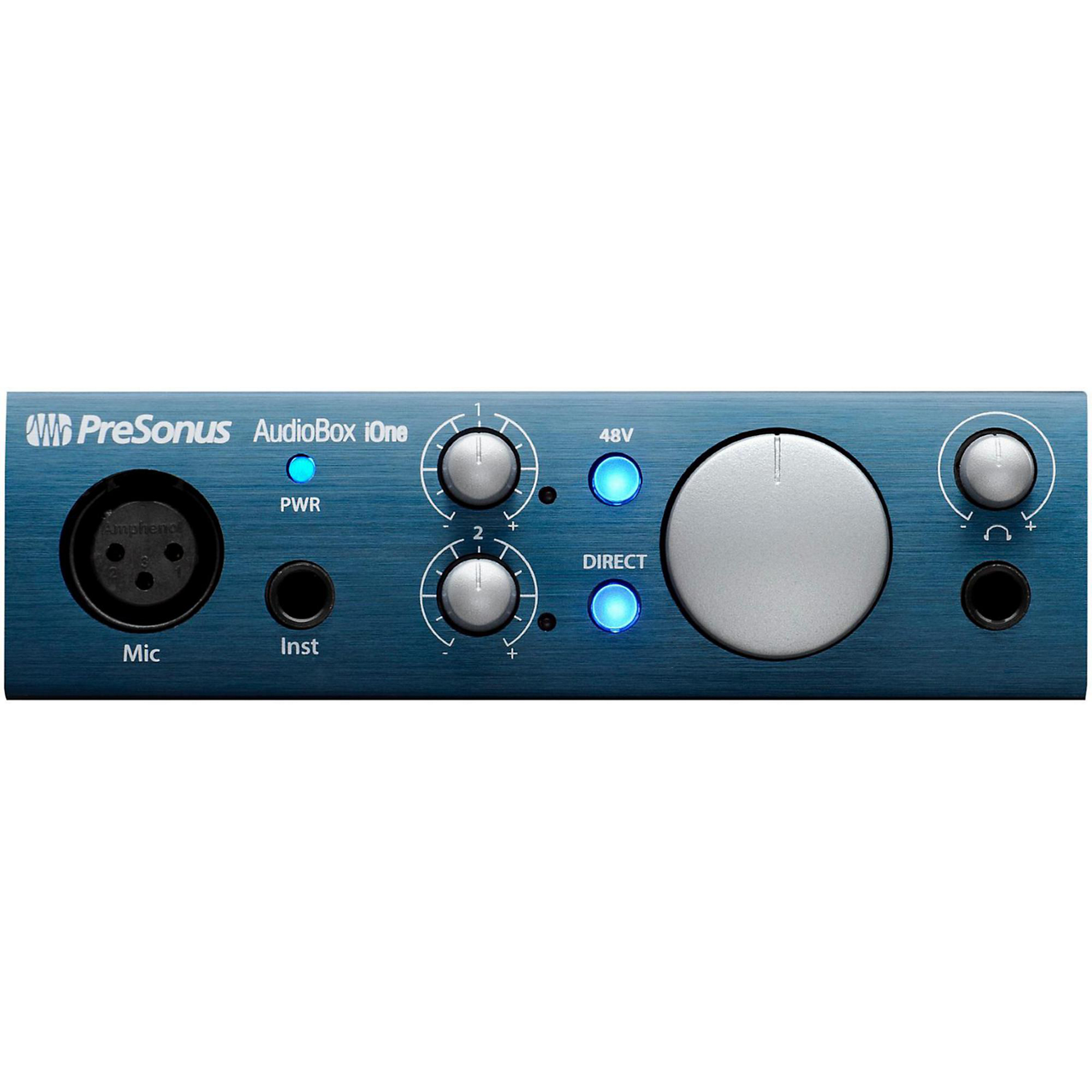

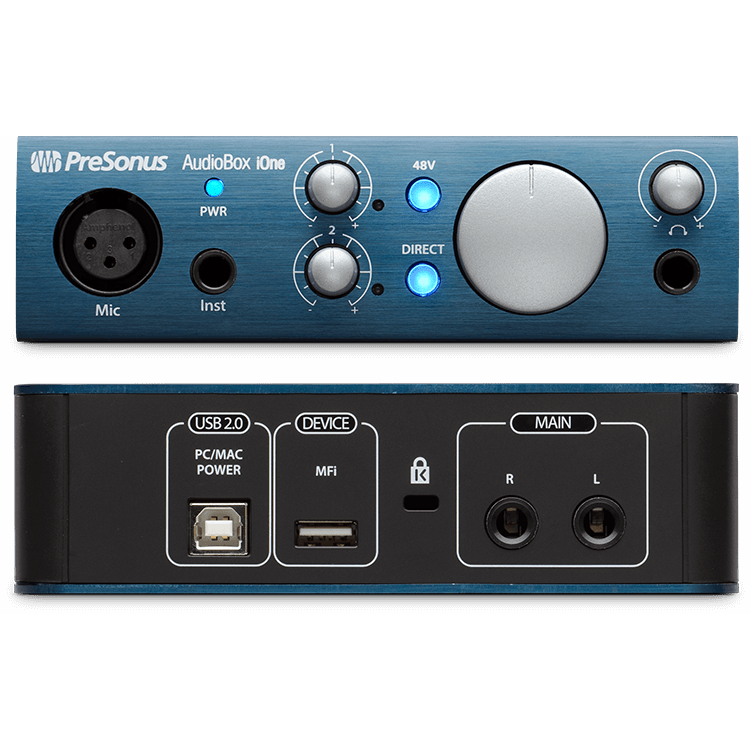

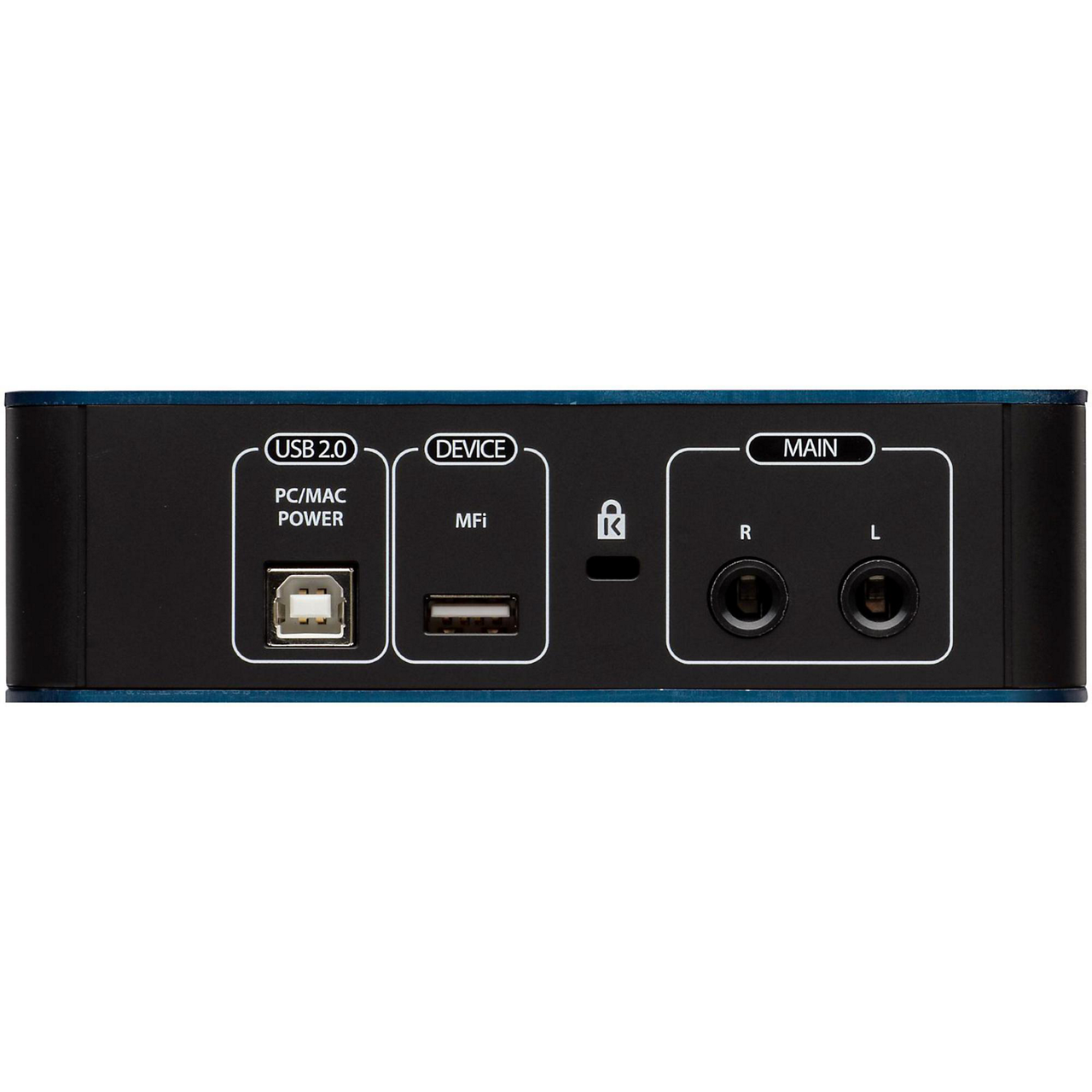

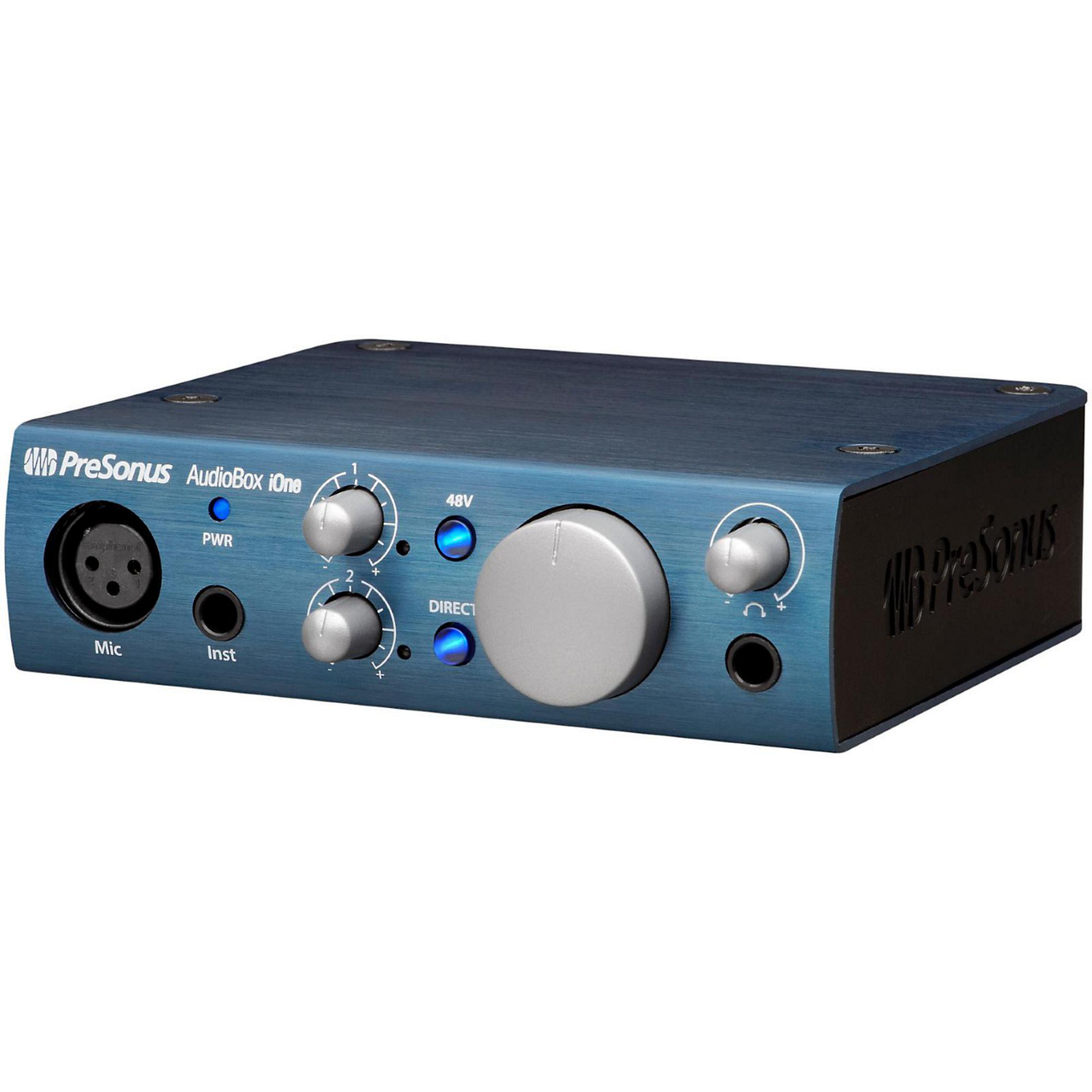

PreSonus AudioBox iOne Audio Recording Interface
The USB/iPad Audio Interface for Guitarists and Songwriters.
Record Anything, Anywhere.The Singer/Songwriter’s Best Friend.
The audio interface for guitarists and songwriters on the go. Inspiration is everywhere for singer/songwriters, so bring your studio with you and record wherever you go. The two-input PreSonus AudioBox® iOne lets you capture your voice and instrument on your Mac, Windows PC, and iPad. Simply plug in your guitar and microphone, and you’re ready to create! USB bus-powered and bundled with powerful, easy-to-use recording software, the AudioBox iOne makes it easy to capture ideas and create professional-quality recordings.

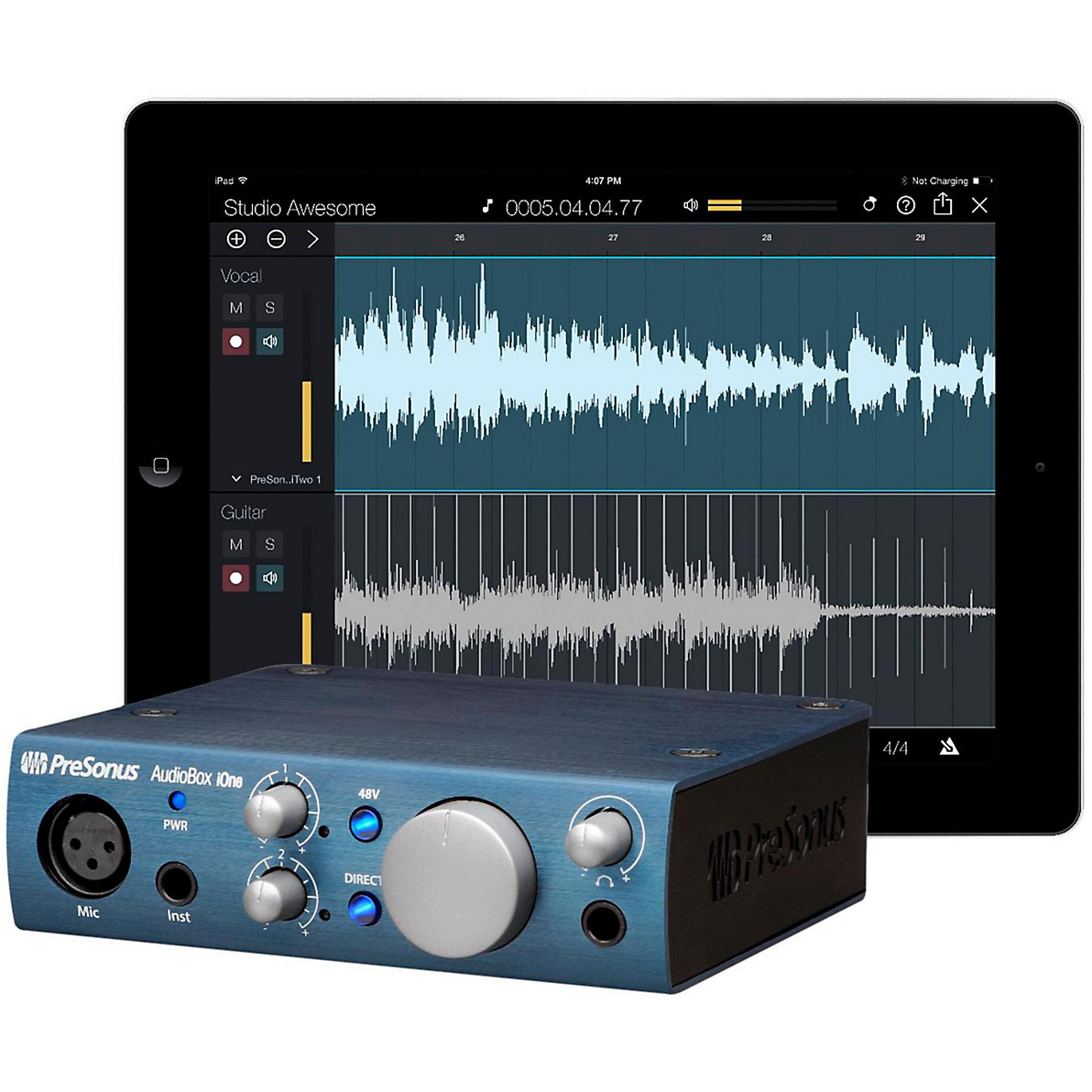

Mobile recording made easy. The AudioBox iOne audio interface and its software library make recording your compositions and tracks easy! Record in stereo on your iPad with free Capture™ Duo or record up to 32 tracks with affordable Capture for iPad. Then wirelessly beam your iPad tracks to our award-winning Studio One® recording and production software for Mac or Windows for editing and mixing. Or do the whole project on your laptop with Studio One. Either way, the AudioBox iOne and its software library provide all the tools needed to record on the road and in the studio.
Loud and clear. To record great-sounding music, you need outstanding preamps and digital converters. And to hear what you’re doing, you need a headphone amp that keeps up with the rest of the design. The AudioBox iOne audio interface delivers it all! We’re famous for our award-winning microphone preamplifiers, and we’ve equipped the AudioBox iOne with a new, sweet-sounding mic preamp that will capture your voice in all its glory. Clean, clear, 24-bit, 96 kHz digital converters and an ultra-loud, crystal-clear headphone output ensures you hear every detail.

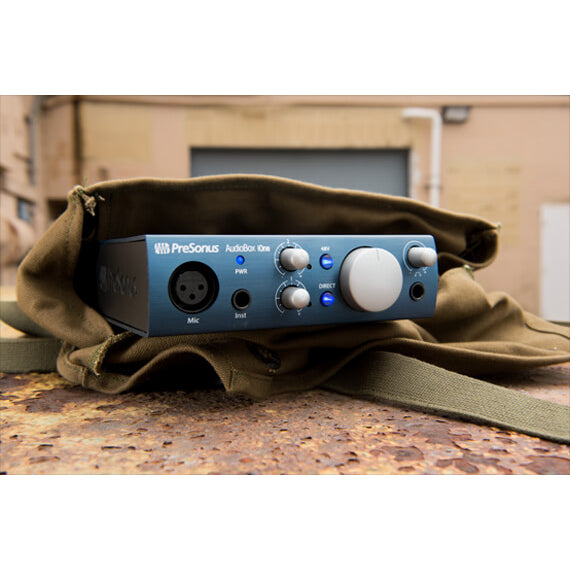

Built to travel. AudioBox iOne is a mobile audio interface in the best sense of the term. It can sit on a tabletop or fit in the pocket of a backpack or laptop bag and works with standard iOS power accessories. Its metal chassis is built like a small tank—yet it weighs just 1.35 pounds (0.63 kg). Wherever your travels take you, whenever your creative muse calls, your AudioBox iOne audio interface will be ready to help you compose and record your masterpiece. Check it out at your favorite PreSonus® dealer.
Now includes Studio Magic Plug-in Suite. This suite of plug-ins adds a wealth of fresh sounds and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies — these are real-deal workhorses that you'll rely on for countless mixes.
Compare Models
The iOne has one instrument input and one microphone input. It’s perfect for a singer/songwriter who plays guitar or bass. The iTwo has two combo mic/instrument/line inputs, so it’s the way to go for recording in stereo with mics or a keyboard and for capturing duets, such as two guitars, two singers, or guitar and bass.
AudioBox iOne |
AudioBox iTwo |
|
Mic Preamps |
1 high-headroom Class A | 2 high-headroom Class A |
Analog Inputs |
1 mic, 1 instrument | 2 mic/line/instrument |
Analog Outputs |
2 ¼" TRS Mains, 1 ¼“ Headphones | 2 ¼" TRS Mains, 1 ¼“ Headphones |
iOS (iPad) |
Yes | Yes |
Max. Bit Depth/Sample Rate |
24-bit/ 96 kHz | 24-bit/ 96 kHz |
Zero Latency Monitoring |
50/50 mix (Direct button) | Variable (Mix knob) |
Phantom Power |
1 global | 1 global |
Indicator Lights |
Power (blue), Signal (green), Clip (red) | Power (blue), Signal (green), Clip (red) |
MIDI I/O |
— | Yes |
Converters (Dynamic Range) |
A/D/A 105 dB | A/D/A 105 dB |
Power |
USB bus-powered* | USB bus-powered* |
USB |
2.0 | 2.0 |
Integrated Software |
||
Capture Duo for iPad 2-channel recording app |
Free Download iTunes App Store | Free Download iTunes App Store |
Studio One Artist DAW |
my.presonus.com Registration Download | my.presonus.com Registration Download |
Optional Software |
||
Capture for iPad 32-track Recording App |
iTunes App Store Purchase | iTunes App Store Purchase |
*iPad requires AC power via iPad power supply or external USB power pack.
Software Library
Studio One® Artist. Creative Music Production Environment. Studio One® is a completely modern professional environment for music recording, mixing, mastering, sharing, and collaboration. It’s Internet-savvy and provides a complete solution, combining the features you really need with the ease of use you always dreamed of. Based on an elegant user interface and a content browser with powerful drag-and-drop functionality, feature-rich Studio One will let you work quickly and stay focused on your inspiration.
Capture™ Duo. Mobile Recording Software for iPad®. Developed by the same engineering team that brought you Studio One®, Capture™ Duo lets you record and play two tracks on an iPad® with up to 24-bit, 96 kHz fidelity. Lean, fast, and easy to use, it’s a perfect mate for PreSonus® AudioBox® iOne or AudioBox iTwo mobile recording interfaces but also works with any iPad-compatible audio interface and with the iPad’s internal microphone. Capture Duo supports essential event editing for basic cleanup, using basic finger gestures. Start recording with just one tap, and when you’re finished, wirelessly transfer your songs directly to Studio One for Mac® or Windows® for editing, mixing, and mastering. And it’s free!
Core Technology
- Bus-powered USB 2.0/iPad audio interface
- 24-bit resolution; 44.1, 48, 88.2, and 96 kHz sampling rate
- 1 microphone input with low-noise, high-headroom, Class A mic preamplifier and +48V phantom power
- 1 instrument input
- 2 balanced ¼” TRS main line-level outputs
- Stereo headphone output with independent level control
- Zero-latency monitoring via internal analog mixer (fixed 50/50 mix via Direct button)
- Large main volume knob
- Signal present and clipping LEDs
- Studio One® Artist DAW software (Mac/Windows) and 6+ GB of third-party resources
- Transfer files wirelessly from Capture for iPad to Studio One
- Compatible with almost all recording software for Mac®, Windows®, and iPad®
- Studio Magic Plug-in Suite included
- Kensington lock hole
- Metal chassis
Windows
- Windows® 7 x64/x86 SP1, Windows 8/8.1 x64/x86 or Windows 10 x64/x86
- Intel Core Duo processor (Intel Core i3 or better recommended)
- 4 GB RAM (8 GB or more recommended)
Mac
- Mac® OS X 10.8 or later
- Intel® Core™ Duo processor (Intel Core i3 or better recommended)
- 4 GB RAM (8 GB or more recommended)
Windows and Mac Systems
- USB 2.0 Port
- Internet connection for registration and download of included software
- Internal or external 7200 RPM storage drive highly recommended
- Monitor with at least 1280x800 resolution
Apple iPad
- iPad Pro, iPad Air, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2
- iOS 7.0.1 or higher
The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer. Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio or MIDI signals. Monitor resolution for both PC and Macintosh should be no lower than 1024x768 pixels.
Technical Specifications
Microphone Preamp | |
---|---|
Type | XLR female, balanced |
Frequency Response (±3.0 dB) | 10 Hz to 40 kHz |
Input Impedance (Balanced) | 1,200Ω |
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) | < 0.008% |
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) | > 95 dB |
Common Mode Rejection Ratio (1 kHz, 52 dB Gain) | > 65 dB |
Gain Control Range (± 1 dB) | 0 dB to 52 dB |
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) | +10 dBu |
Phantom Power (±2 VDC) | +48 VDC |
Line Input | |
Type | — |
Input Impedance | — |
Instrument Input | |
Type | ¼" TS female, unbalanced |
Input Impedance | 1 MΩ |
Line Outputs | |
Type | ¼" TRS female, balanced |
Output Impedance | 51Ω |
Headphone Output | |
Type | ¼" TRS active stereo |
Maximum Output | 60 mW/ch. @ 60Ω Load |
Frequency Response (±1.0 dB) | 20 Hz - 30 kHz |
Output Impedance | 10Ω |
MIDI I/O | |
Type | — |
Digital Audio | |
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
Bit Depth | 24 |
Reference Level for 0 dBFS | +10 dBu |
Internal Sample Frequency Selections (kHz) | 44.1, 48, 88.2, 96 |
Power | USB bus-powered |
Physical | |
Height | 1.71” (43.5 mm) |
Depth | 5.31" (135 mm) |
Width | 5.91” (150 mm) |
Weight | 1.35 lbs (0.62 kg) |
