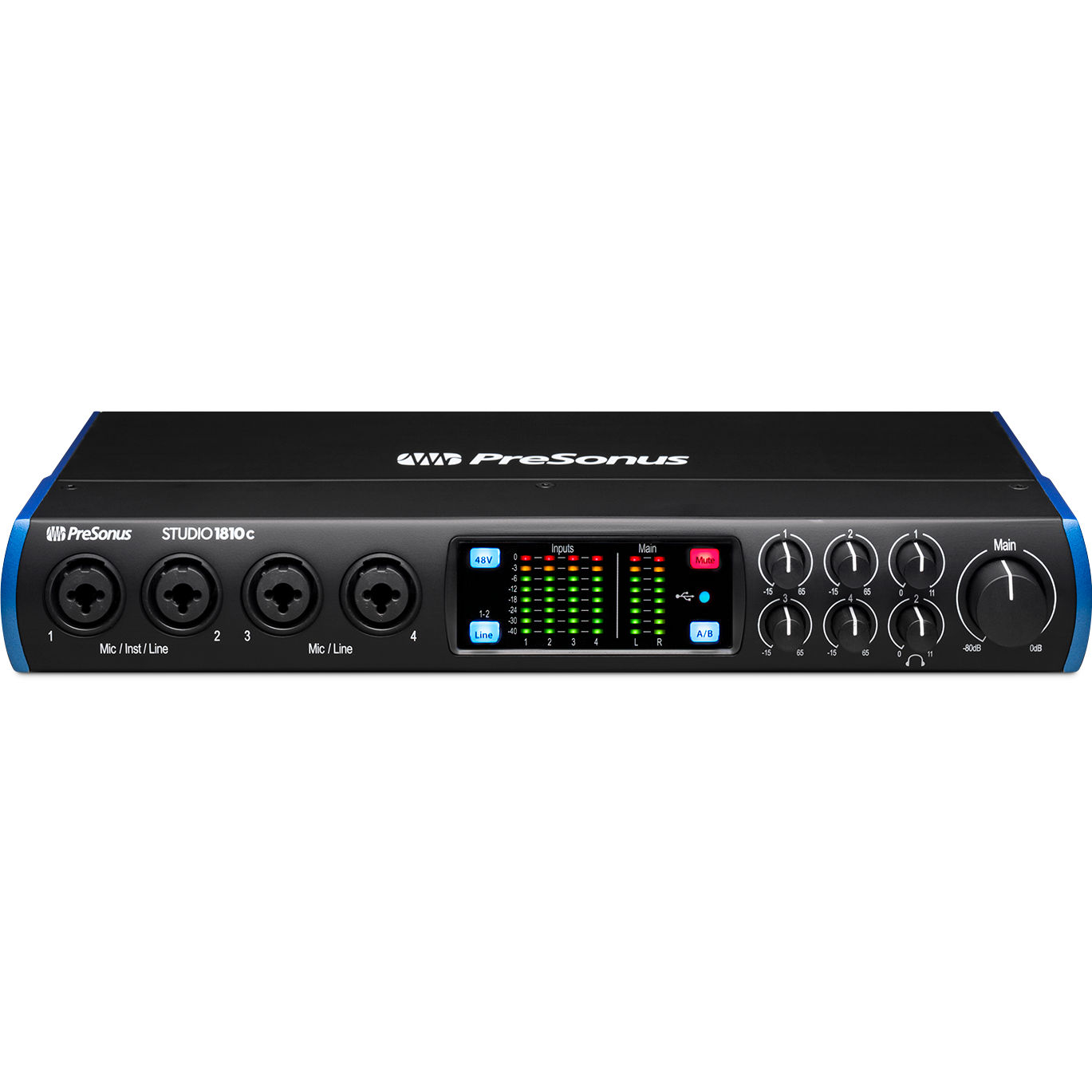

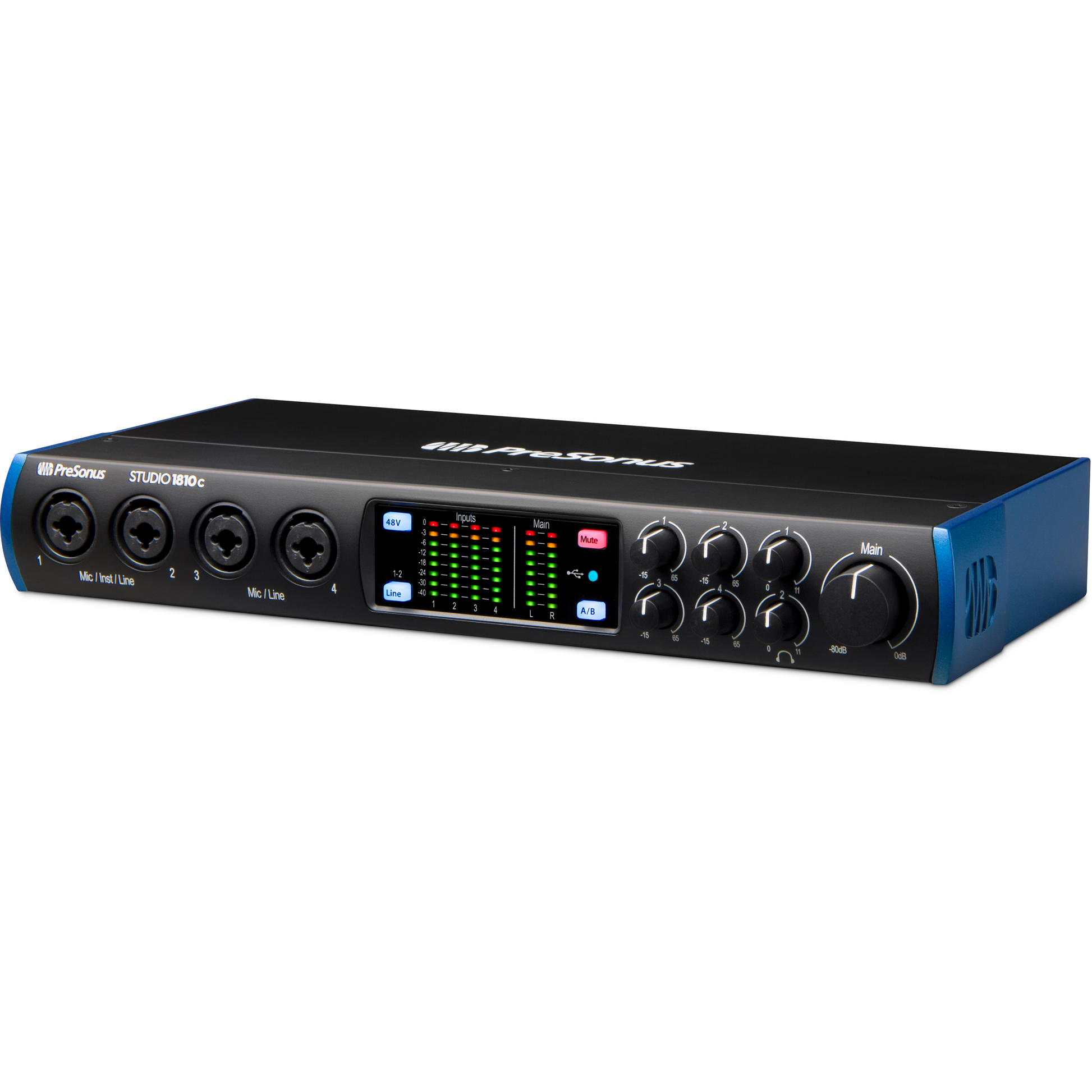

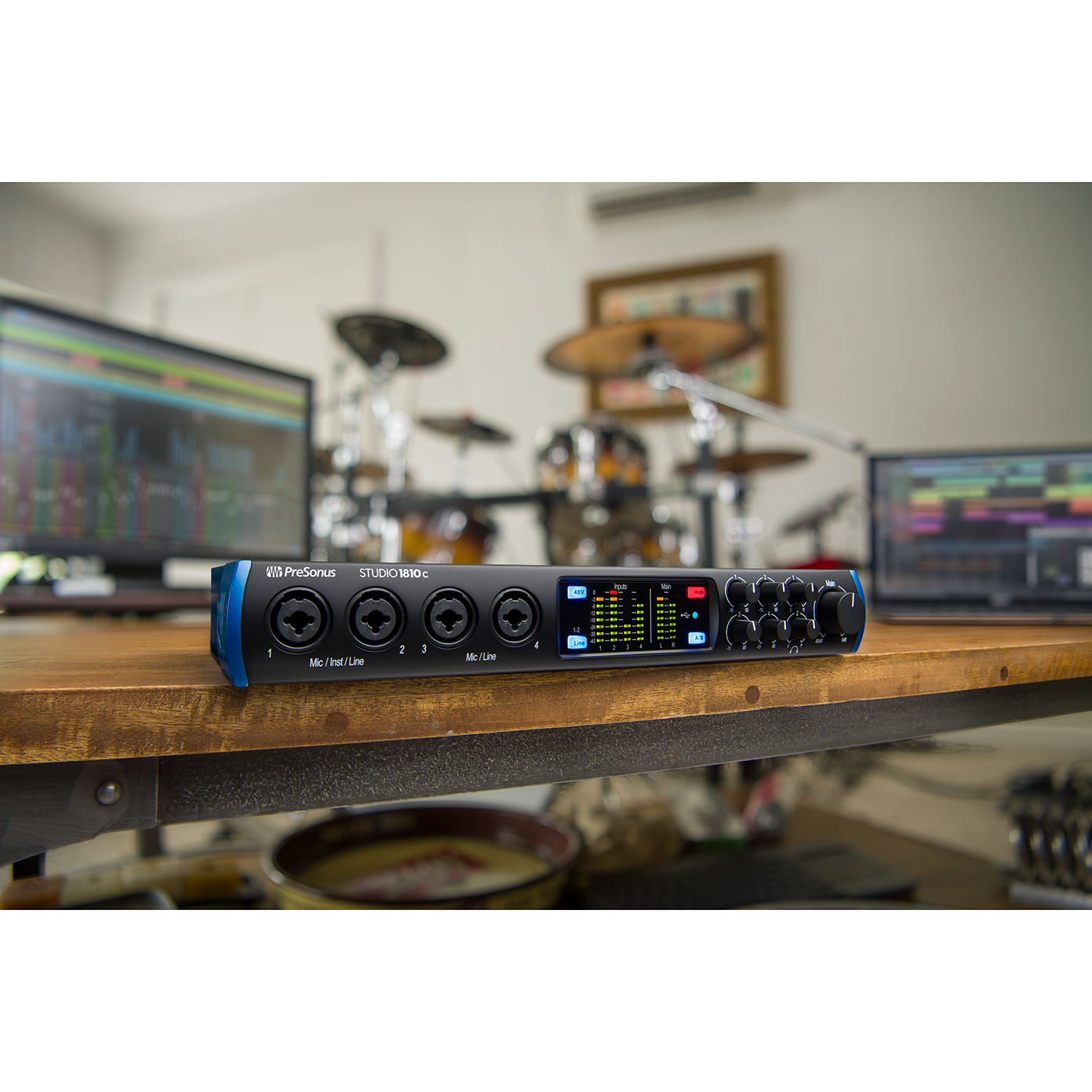

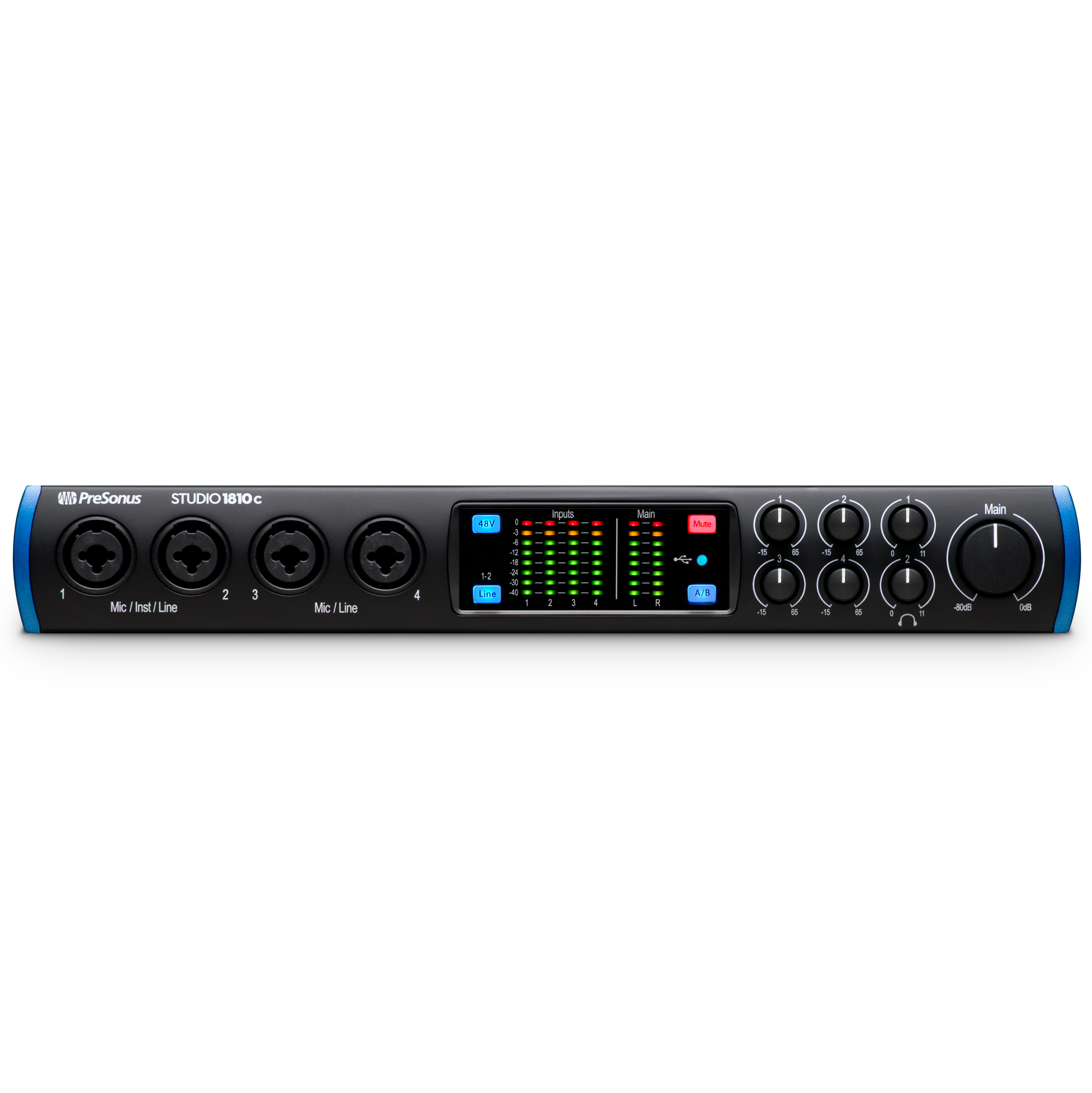

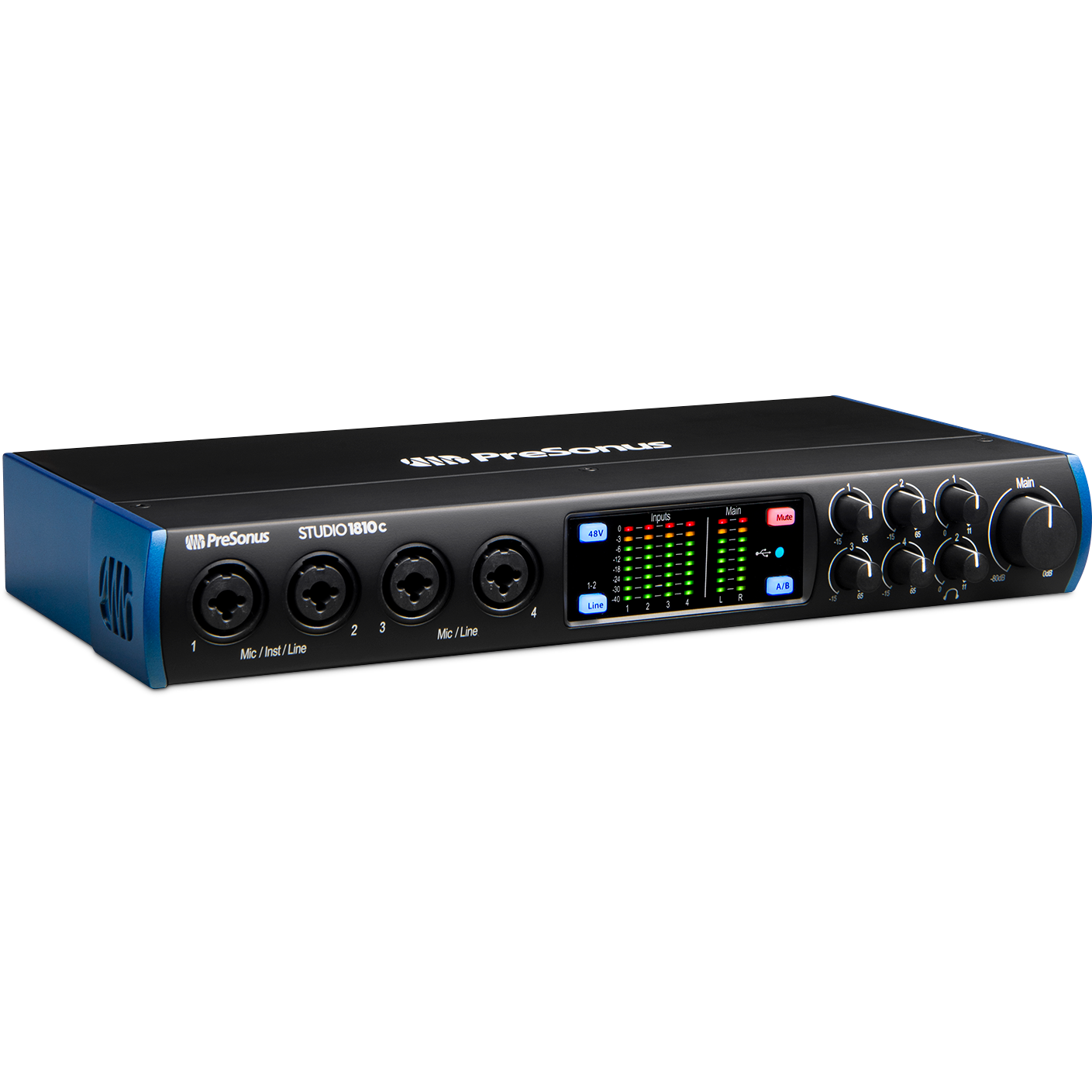

PreSonus Studio 1810c Audio Interface (USB-C - 18 x 8 - 192 kHz)
18 x 8, 192 kHz, USB-C Audio Interface

PreSonus been making recording interfaces for a long time. From the top-of-the-line Quantum family to the AudioBox USB 96, we prioritize sound quality, ease-of-use, and construction quality. Whether you use Mac, Windows, or iOS, we have an interface that fits your application and budget.

The Electronic Musician’s Choice. Designed for creative electronic music production. Ideal for producers and small bands who want to record audio from a wide range of sources, the Studio 1810c 192 kHz USB-C audio interface records up to 18 simultaneous inputs, including ADAT and S/PDIF, and features PreSonus® XMAX mic preamps, DC-coupled line outputs, and MIDI I/O. A complete, all-in-one recording package, the Studio 1810c offers control-room integration with included Studio One® Artist music production software and free UC Surface control software and is backward compatible with USB 2.0 and 3.0 connections.

World-class recording software included. Seamlessly integrated with the included PreSonus UC Surface control software for macOS®, Windows®, iPad®, and Android™ tablet and Studio One Artist music production software, the Studio 1810c audio interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment—including powerful extensions for Studio One like the CTC-1 Console Shaper and Presence XT Editor.

Take the tour. The 18-in, 8-out Studio 1810c audio interface features USB-C computer connectivity and records up to 18 simultaneous inputs, including 4 microphone inputs with XMAX mic preamps, 4 dedicated line inputs, 8 channels of ADAT Optical input (4 channels at 96 kHz), and S/PDIF inputs. In addition to the main L/R outputs, you get four DC-coupled line-level outputs that can send control voltages. You also get two headphone outputs with A/B switching for monitoring different mix streams. A built-in MIDI interface enables connection to a keyboard, sound module, or control surface.

Superior sound. The Studio 1810c audio interface operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus’ professional-grade XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound.

The flexible production tool. With cue mix headphone monitoring, onboard monitor mixing, pristine mic preamps, abundant line inputs, and up to 192 kHz sample rate, the Studio 1810c will give you the ultra-high-def sound and versatile connectivity you need to make state-of-the-art recordings and perform live. An excellent companion for any recording software, the Studio 1810c’s integration with Studio One Artist and remote control with UC Surface provide a complete and thoroughly professional recording studio.

Includes Studio Magic Plug-in Suite. This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies — these are real-deal workhorses that you'll rely on for countless mixes.

Features

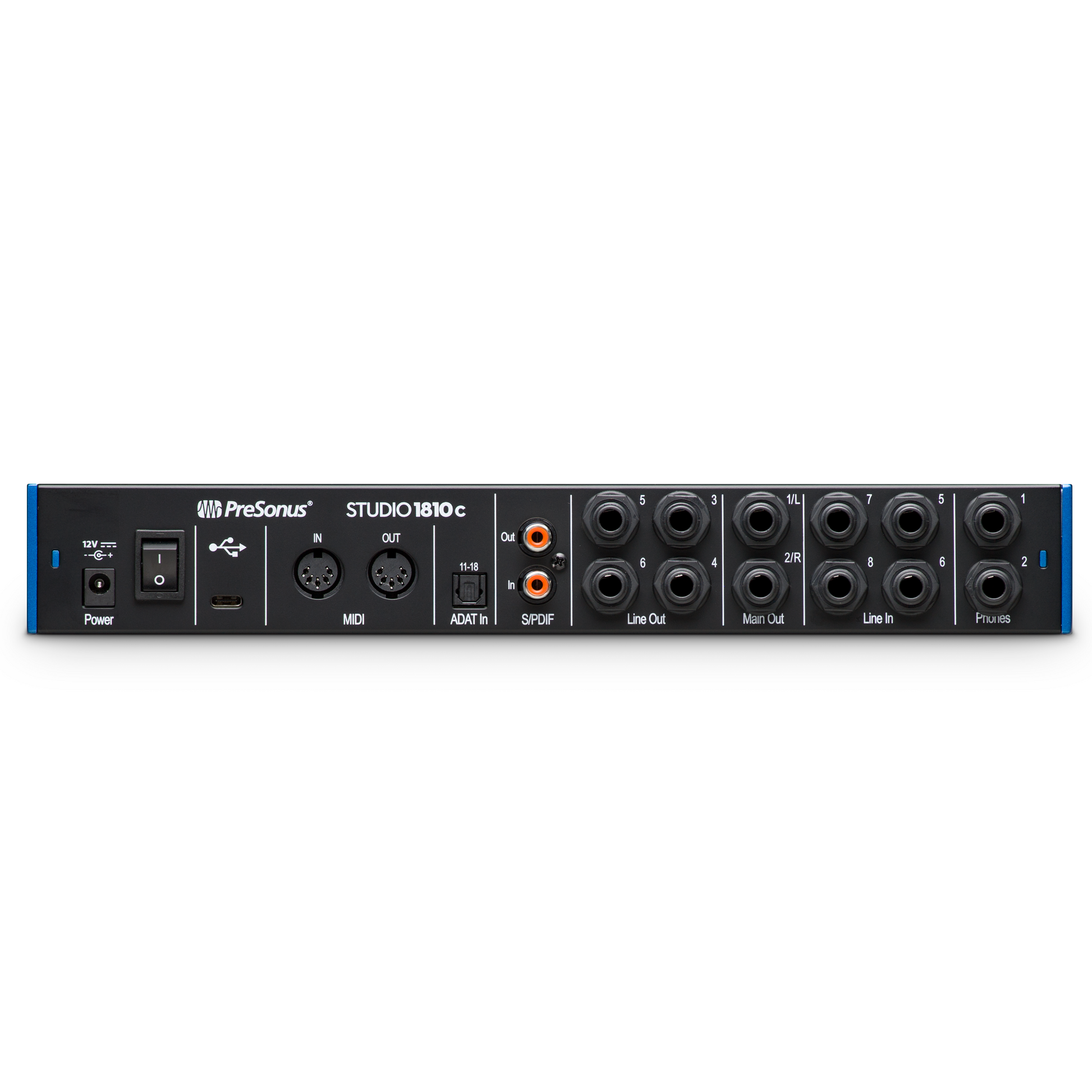

Input/Output

  • Simultaneous I/O up to 18 inputs/8 outputs (8x6 at 192 kHz)
  • 2 mic/instrument/line inputs with XMAX Class A mic preamps
  • 2 mic/line inputs with XMAX Class A mic preamps
  • 4 balanced ¼” TRS direct-to-ADC line inputs
  • 8 channels of ADAT Optical input (4 channels at 96 kHz)
  • 2 balanced ¼” TRS main outputs
    • DC coupled for sending control voltages
  • 4 balanced ¼” TRS line outputs for monitor mixing
    • DC coupled for sending control voltages
  • 2 stereo headphone outputs with the same mix or independent mixes
  • MIDI In/Out
  • Stereo S/PDIF digital I/O
  • 1 USB-C 2.0 port
    • USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers

Integrated Software

  • Studio One® Artist for Mac® and Windows®
  • UC Surface control software for Mac, Windows, iPad®, and Android™
  • Studio Magic Plug-in Suite

Meters, Controls, and Features

  • 18x6 onboard DSP monitor mixer
  • Studio One Artist®
  • Front-panel mute and level controls for main outputs
  • True +48V phantom power for condenser microphones (global)

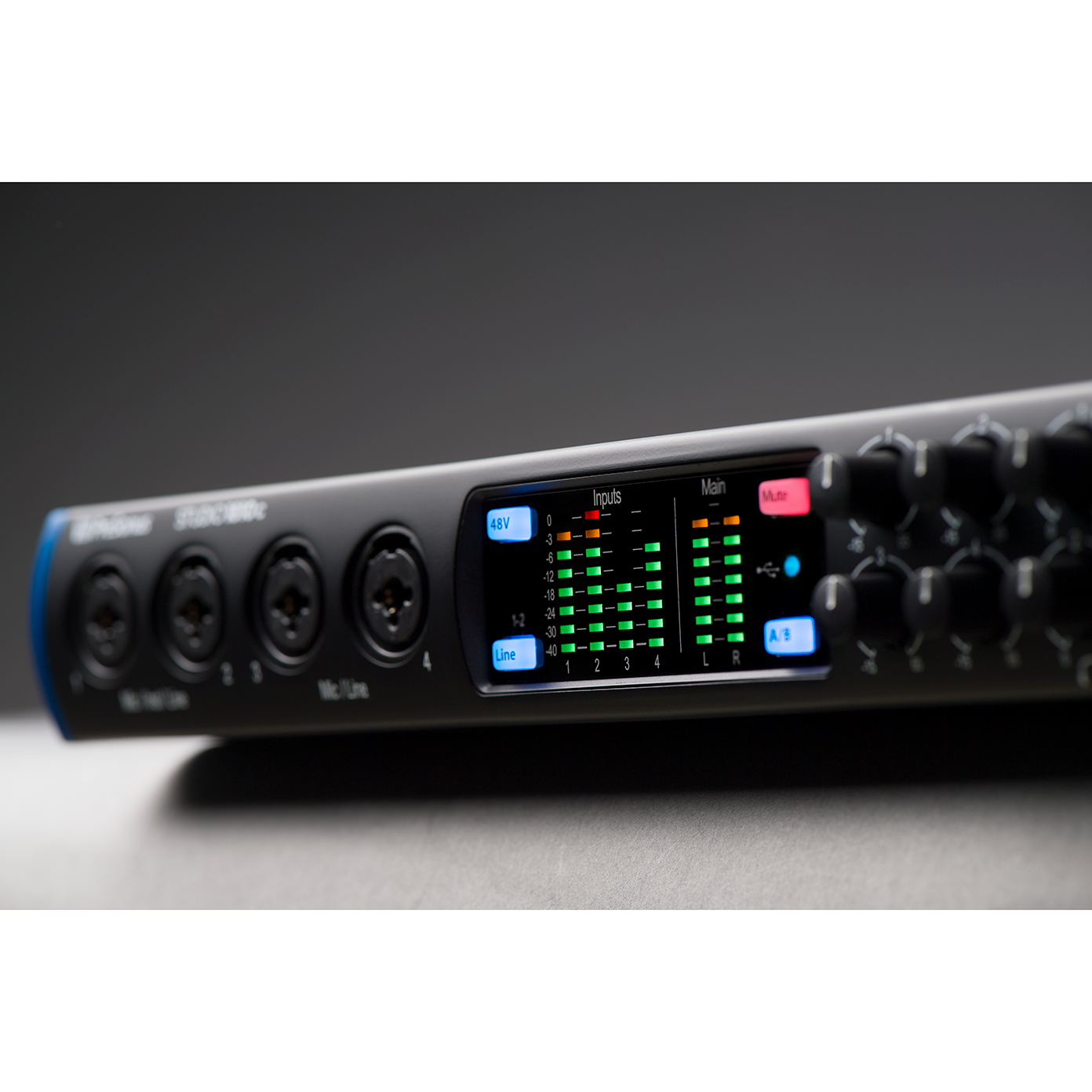

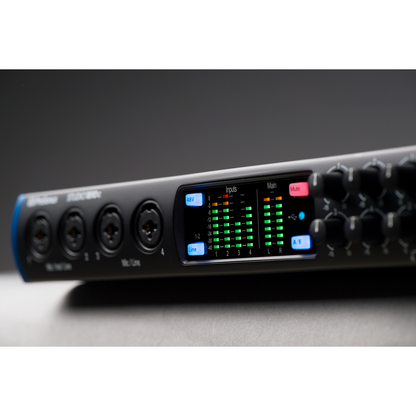

  • 6 ladder-style 8-LED level meters (4 input, 2 main output)

Digital

  • USB-C port (USB 2.0)
  • 24-bit resolution
  • 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

Physical

  • Road-rugged construction with all-metal chassis and metal knobs

Computer system requirements
Below are the minimum computer-system requirements.

Mac

  • macOS® 10.11 or higher (64-bit only)
  • Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)

Windows

  • Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
  • Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
  • 4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

  • USB 2.0 port
  • 32 GB hard disk space
  • PreSonus Universal Control 2.0 or higher
  • Monitor with 1366x768 resolution (high-dpi monitor recommended)
  • Multitouch-enabled monitor required for touch operation

iOS

  • iOS 10 or later
  • iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)


Android

  • Android™ 5.0 (Lollipop) or later
  • Android tablet (8-inch) with 1024x768 resolution (UC Surface)

Technical Specifications

General
Sample Rates 44.1, 48, 88.2, 96, 176.4, or 192 kHz
Converter Resolution  24-Bit
ADC Converter Dynamic Range  114 dB
DAC Converter Dynamic Range  114 dB
Microphone Inputs
Maximum Level  +16 dBu (balanced, min gain)
Gain Range 80 dB
Frequency Response  20 Hz - 20 kHz (unity gain)
Dynamic Range  110 dB (A-wtd, min gain)
THD + N  0.005% (1 kHz, 0dBu, unity gain)

EIN

-128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain)
Input Impedance  1400Ω
Phantom Power  48V (>10 mA per channel)
Line Inputs
Maximum Level  +21 dBu (balanced, min gain)
Gain Range  40 dB
Frequency Response  20 Hz-20 kHz (unity gain)
Dynamic Range  112 dB (A-wtd, min gain)
THD + N  0.005% (1 kHz, +18 dBu, min gain)
Input Impedance  10 kΩ
Instrument Inputs
Maximum Level  +15 dBu (unbalanced, min gain)
Gain Range  80 dB
Frequency Response  20 Hz - 20 kHz (min gain)
Dynamic Range  112 dB (A-wtd, min gain)
THD + N  0.020% (1 kHz, +10 dBu, min gain)
Input Impedance  1M Ω
Line Outputs (Mains)
Type  ¼" TRS Female, DC Coupled*
Maximum Level  +18 dBu (balanced)
Frequency Response  20 Hz - 20 kHz
Dynamic Range  108 dB (A-wtd, -60 dBFS)
THD + N  0.004% (1 kHz, -1 dBFS, unity gain)
Line Outputs

Type  ¼" TRS Female, DC Coupled*
Maximum Level  +18 dBu (balanced)
Frequency Response  20 Hz - 20 kHz
Dynamic Range  108 dB (A-wtd, -60 dBFS)
THD + N  0.004% (1 kHz, -1 dBFS, unity gain)
Headphone Outputs
Maximum Power  150 mW/channel (60Ω load)
Frequency Response  20 Hz - 20 kHz (unity gain)
Dynamic Range  103 dB (A-weighted, 1 kHz, unity gain)
THD + N  0.250% (1 kHz, 150 mW, unity gain)
Impedance Working Range  32Ω to 600Ω
Physical
Height  1.75" (44 mm)
Width  7" (180 mm)
Depth  5.5" (144 mm)
Weight  3.2 lbs. (1.45 kg)
