SPL Transient Designer 4 Dynamics

Transient Designer 4. The Original. The Transient Designer has created a new breed of dynamics processors that can shape the transient response of any audio signal.

Transient Designing

• The Transient Designer revolutionizes dynamics processing by allowing level-independent (no threshold!) editing of envelopes for the first time.

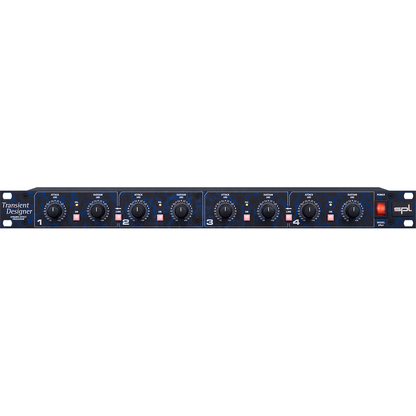

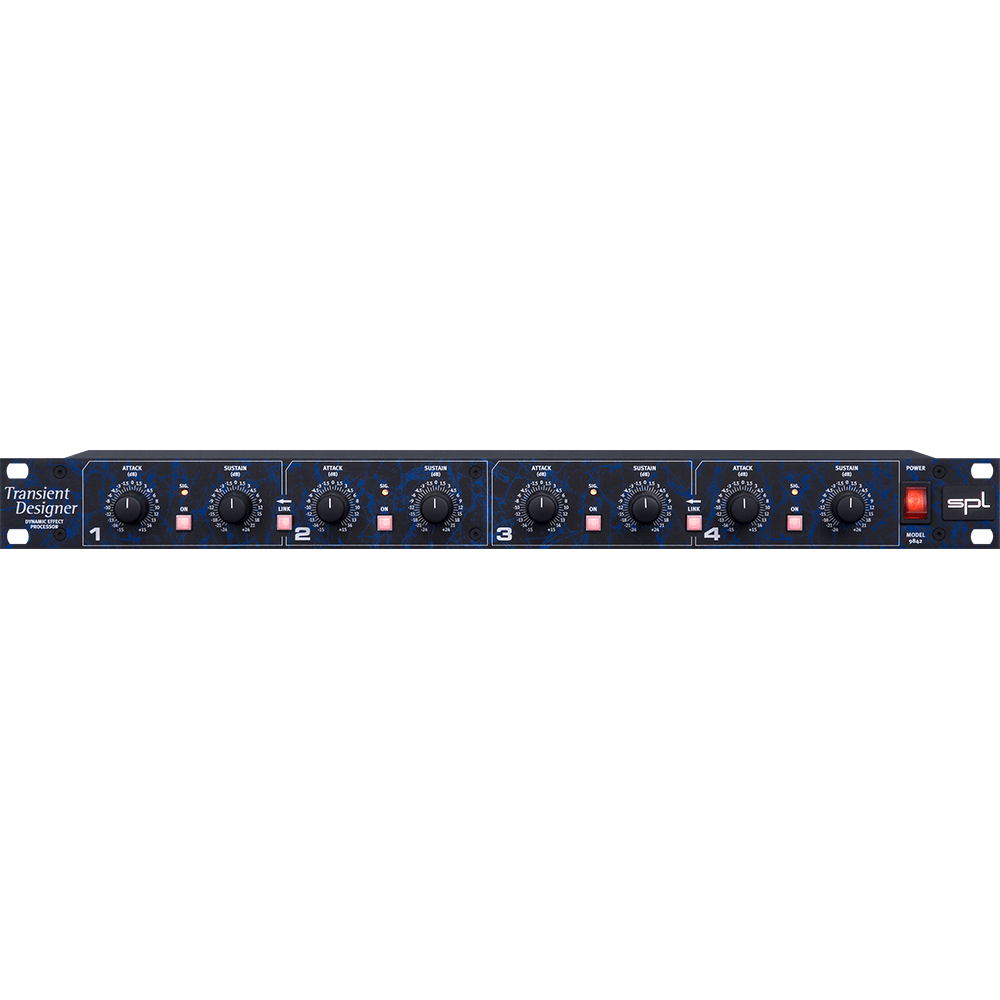

• Accelerate or slow down transients, lengthen or shorten decay times with just two controls (attack and sustain).
• All time constants are automated in a musical way and optimize themselves adaptively according to the characteristics of the input signal.
• Channels 1 & 2 as well as 3 & 4 can be linked for processing stereo signals. The respective left channel becomes the master.

Attack. The attack control can be used to boost or cut the attack phase of a signal by up to 15 dB.  A positive attack value increases the amplitude of the transient response. Negative attack values lead to an attenuation.

Sustain. The Sustain control can be used to boost or cut the decay phase of a signal by up to 24 dB.  Positive sustain values extend the decay. Negative Sustain values shorten the decay.

The Differential Envelope Technology. Our Differential Envelope Technology (DET) allows dynamic signal characteristics to be processed by forming the difference between envelopes and thereby making them level-independent. The envelope trackers align the working processes with the natural signal characteristics. This ensures optimum results for every moment.

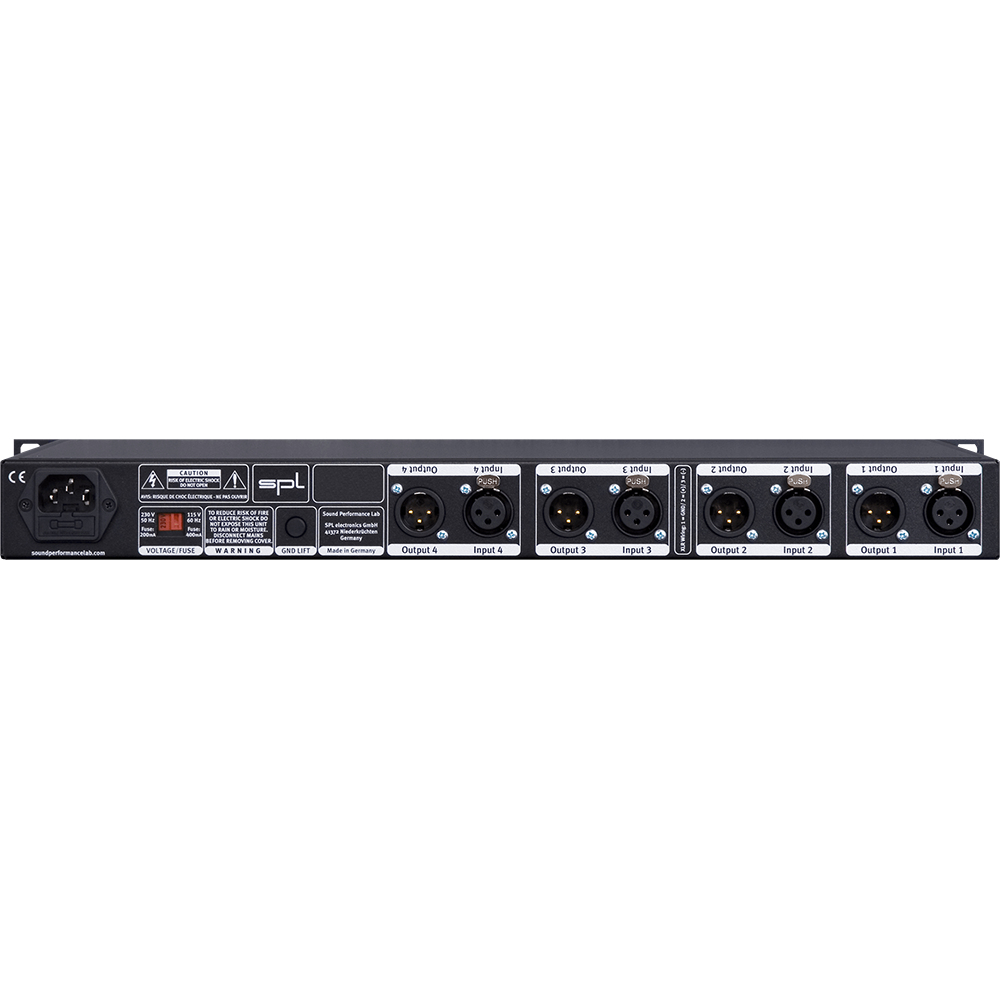

Inputs & Outputs. The four channels of the Transient Designer are equipped with Neutrik XLR sockets with gold-plated contacts. The signal transmission is electronically balanced at a nominal level of +6 dB.

Specifications

Analog inputs & outputs; XLR (balanced)

• Maximum input gain: 22 dBu
• Input impedance: 22 kΩ
• Maximum output gain: 22.4 dBu
• Output impedance: 100 Ω
• Common mode rejection (1 kHz): 80 dBu
• Frequency range (-3 dB): 10 Hz – 100 kHz
• THD + N (0 dBu, 10 Hz – 22 kHz): 0.004 %
• Crosstalk (1 kHz): -90 dB
• Noise (A-weighted): -105 dBu
• Dynamic range: 127.4 dB

Internal Linear Power Supply with Toroidal Transformer

• Operating voltage for analog audio: +/- 15 V
• Operating voltage for relays and LEDs: + 12 V

Mains Power Supply

• Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V: T 315 mA
• Fuse for 115 V: T 630 mA
• Power consumption: max. 25 W

Dimensions & Weight

• W x H x D (width x height x depth): 482 x 44 x 237 mm; 19 x 1.73 x 9.33 inch
• Unit weight: 3.4 kg; 7.5 lbs
• Shipping weight (incl. packaging): 4.45 kg; 9.81 lbs
